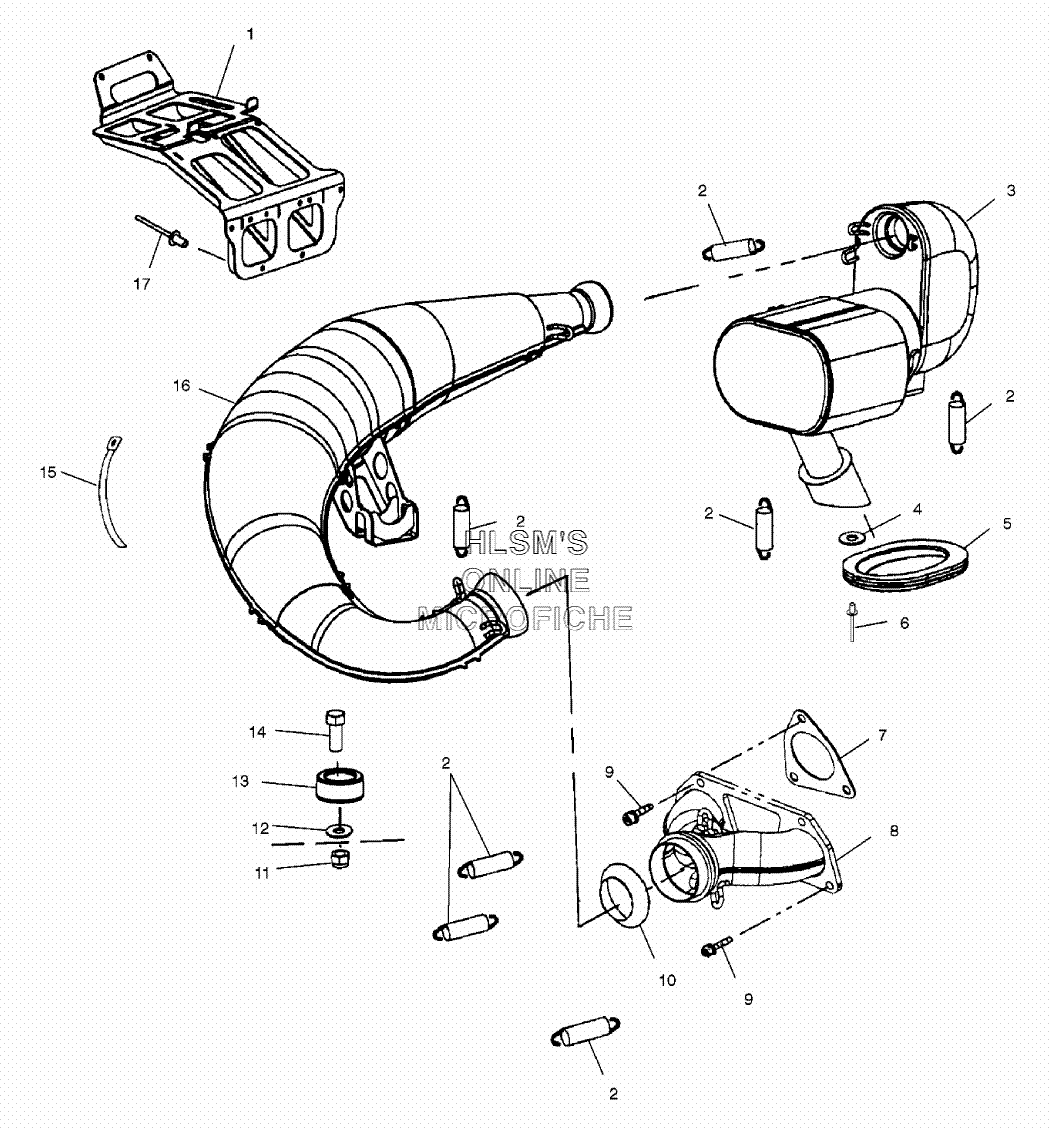

EXHAUST SYSTEM для Polaris 500 XC (S02NP5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1261008-029 WELD, BRACKET CHASSIS/RESONATOR (BLACK)
    WELD, BRACKET CHASSIS/RESONATOR (BLACK)
  • 2
    7041687 SPRING, EXHAUST
    SPRING, EXHAUST
  • 3
    1261130-029 WELD, RESONATOR (BLACK)
    WELD, RESONATOR (BLACK)
  • 4
    7555904 BURR, RIVET
    BURR, RIVET
  • 5
    5411684 BOOT, EXHAUST OUTLET
    BOOT, EXHAUST OUTLET
  • 6
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 7
    5811838 GASKET, EXHUAST (440 BASE 500/600)
    GASKET, EXHUAST (440 BASE 500/600)
  • 8
    1261046-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 9
    7517322 SCREW
    SCREW
  • 10
    3610046 SEAL, EXHUAST SOCKET
    SEAL, EXHUAST SOCKET
  • 11
    7547180 NUT FLANGED NYLON Z
    NUT FLANGED NYLON Z
  • 12
    7555815 WASHER, FLAT
    WASHER, FLAT
  • 13
    5433576 DAMPENER, VIBRATIONS
    DAMPENER, VIBRATIONS
  • 14
    7517935 SCREW
    SCREW
  • 15
    7080739 CLAMP, WORM (.44 X 3.13)
    CLAMP, WORM (.44 X 3.13)
  • 15
    7080811 CLAMP, WORM DRIVE (.44 X 6.5)
    CLAMP, WORM DRIVE (.44 X 6.5)
  • 15
    7080812 CLAMP, WORM DRIVE (.44 X 3.75)
    CLAMP, WORM DRIVE (.44 X 3.75)
  • 15
    7080813 CLAMP, WORM DRIVE (.44 X 4.25)
    CLAMP, WORM DRIVE (.44 X 4.25)
  • 16
    1261071 TUNED PIPE, ASSY.
    TUNED PIPE, ASSY.
  • 16
    5244502 COVER, TUNED PIPE (TOP)
    COVER, TUNED PIPE (TOP)
  • 16
    5242591 COVER, TUNED PIPE (BOTTOM)
    COVER, TUNED PIPE (BOTTOM)
  • 16
    5830208 MATTE, SOUND (TOP)
    MATTE, SOUND (TOP)
  • 16
    5830144 MATTE, SOUND (TOP)
    MATTE, SOUND (TOP)
  • 17
    7661637 RIVET, INTERLOCK Z
    RIVET, INTERLOCK Z
