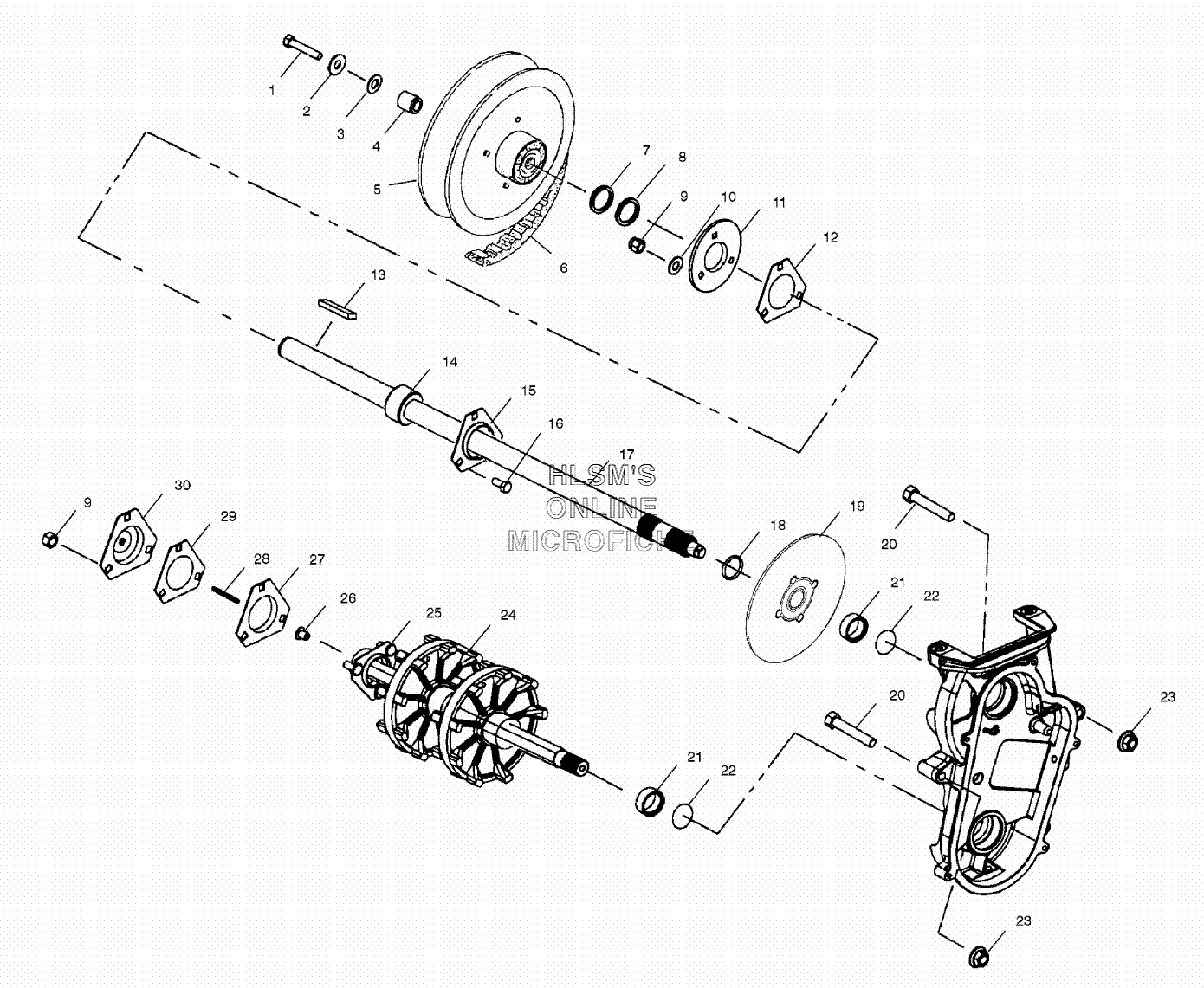

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 XC (S02NP5AS) - 2002 года выпуска`
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
51321927 ASSY., DRIVEN CLUTCH (SEE DRIVEN CLUTCH REF. 9)ASSY., DRIVEN CLUTCH (SEE DRIVEN CLUTCH REF. 9)
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 BUSHINGBUSHING
-
87556509 WASHER SPECIALWASHER SPECIAL
-
97542324 NUTNUT
-
107558402 WASHER STEELWASHER STEEL
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
137721128 KEY-1/4X3/16X2.75KEY-1/4X3/16X2.75
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLTBOLT
-
171332220 ASSY., SPLINE JACKSHAFT, W/M15 BRG (INCL. 14,18)ASSY., SPLINE JACKSHAFT, W/M15 BRG (INCL. 14,18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC, SNOW, 6385 CR, ASSY.BRAKE DISC, SNOW, 6385 CR, ASSY.
-
207515428 BOLTBOLT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUTNUT
-
241590313 ASSY., DRIVESHAFT, EDG, 1.06, 2 DR W (INCL. 25,26)ASSY., DRIVESHAFT, EDG, 1.06, 2 DR W (INCL. 25,26)
-
251012945 ASSY., FLANGETTE W/SCREWSASSY., FLANGETTE W/SCREWS
-
263280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
275243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
283280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
