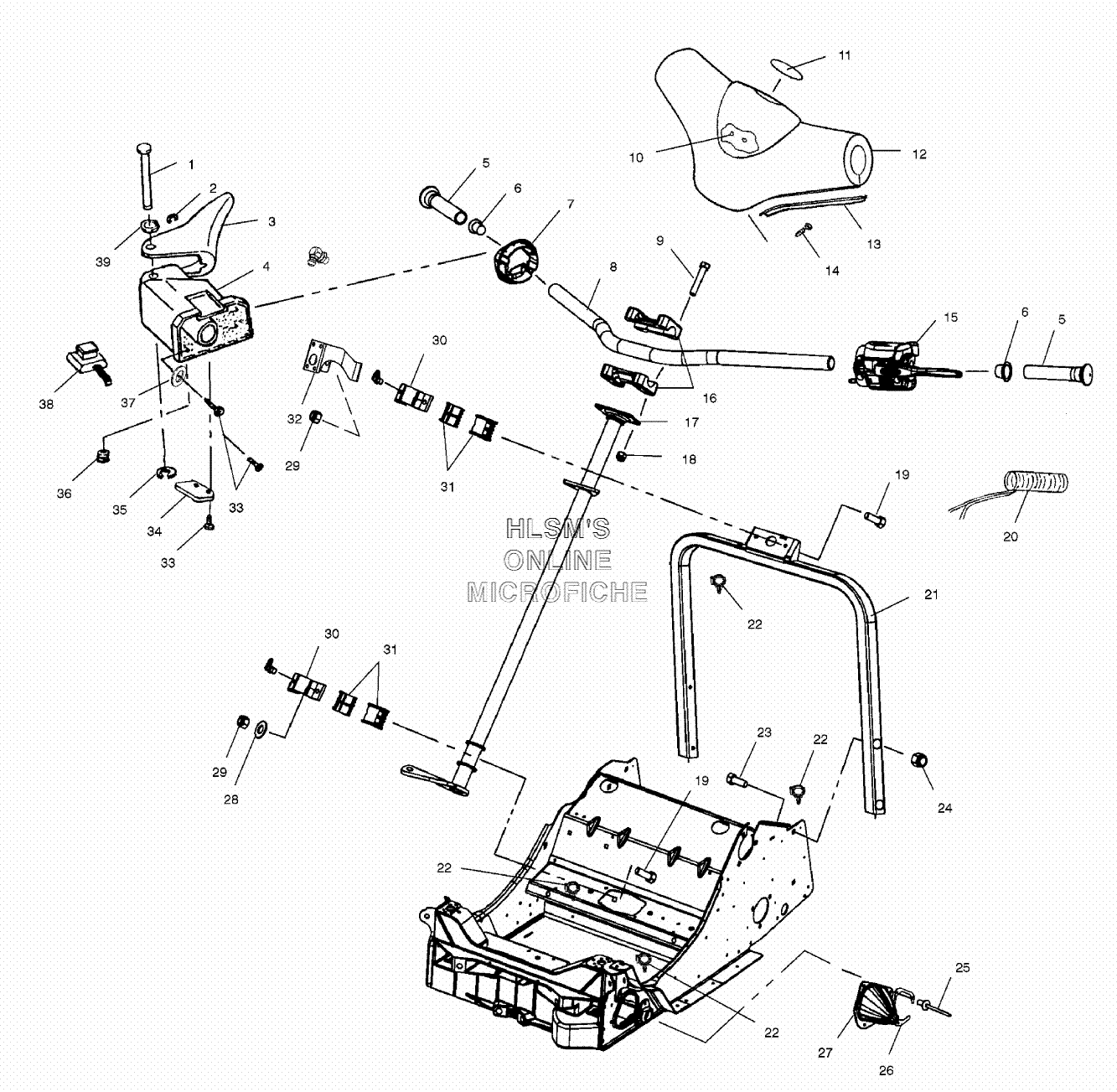

HANDLEBAR ASSEMBLY для Polaris 500 XC (S02NP5AS) - 2002 года выпуска`
-
№АртикулНазвание
-
17661624 PIN, HINGEPIN, HINGE
-
27710503 RETAINING RINGRETAINING RING
-
35432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
32010171 LEVER ASSY., HTR, HI/LO (35.5MM)LEVER ASSY., HTR, HI/LO (35.5MM)
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, HANDLEBAR SNOWGRIP, HANDLEBAR SNOW
-
65431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
75433345 ADAPTER, BLOCK THROTTLEADAPTER, BLOCK THROTTLE
-
85243355-067 HANDLE BAR, BLACKHANDLE BAR, BLACK
-
97517238 SCREWSCREW
-
107670106 NUT, PUSH-ON (.170-.180-Y)NUT, PUSH-ON (.170-.180-Y)
-
115434179 EMBLEM, ''STAR'' PLM. BEZEL, HANDLEBAREMBLEM, ''STAR'' PLM. BEZEL, HANDLEBAR
-
125433159-070 COVER, HANDLEBAR (BLACK)COVER, HANDLEBAR (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER (BLACK)SLIDE, HANDLEBAR COVER (BLACK)
-
144010287 DART, CLIP NYLON (BLACK)DART, CLIP NYLON (BLACK)
-
152010167 ASSY., CONTROL (SEE BRAKE REF. 13) (LEFT)ASSY., CONTROL (SEE BRAKE REF. 13) (LEFT)
-
165630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
171820965-067 WELD, STEERING POST EDGE (BLACK)WELD, STEERING POST EDGE (BLACK)
-
187542122 NUT, LOCKNUT, LOCK
-
197517579 BOLT, CARR (5/16-X1'' GR5)BOLT, CARR (5/16-X1'' GR5)
-
202460677 HEATER, GRIP (LO/MED/HI)HEATER, GRIP (LO/MED/HI)
-
211013602-067 WELD, STEERING HOOP REV (BLACK)WELD, STEERING HOOP REV (BLACK)
-
224020139 CLIP, PLASTICCLIP, PLASTIC
-
237512377 BOLTBOLT
-
247542343 NUT, NYLOCKNUT, NYLOCK
-
257621433 RIVETRIVET
-
265244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
275433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
275433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
287558402 WASHER STEELWASHER STEEL
-
297542324 NUTNUT
-
305131841 BRACKET, STEERING POSTBRACKET, STEERING POST
-
307080510 FITTING, ZERKFITTING, ZERK
-
315432785 BUSHING, STEERING POSTBUSHING, STEERING POST
-
325244829 BRACKET, CONSOLE SUPPORTBRACKET, CONSOLE SUPPORT
-
337511848 SCREW, SEMSSCREW, SEMS
-
345432261 HOLDER, WIREHOLDER, WIRE
-
357710401 E-RINGE-RING
-
367512465 SCREWSCREW
-
377555727 RIVET BURRRIVET BURR
-
384110106 SWITCH, AUX. SHUT OFFSWITCH, AUX. SHUT OFF
-
397555730 WASHERWASHER
