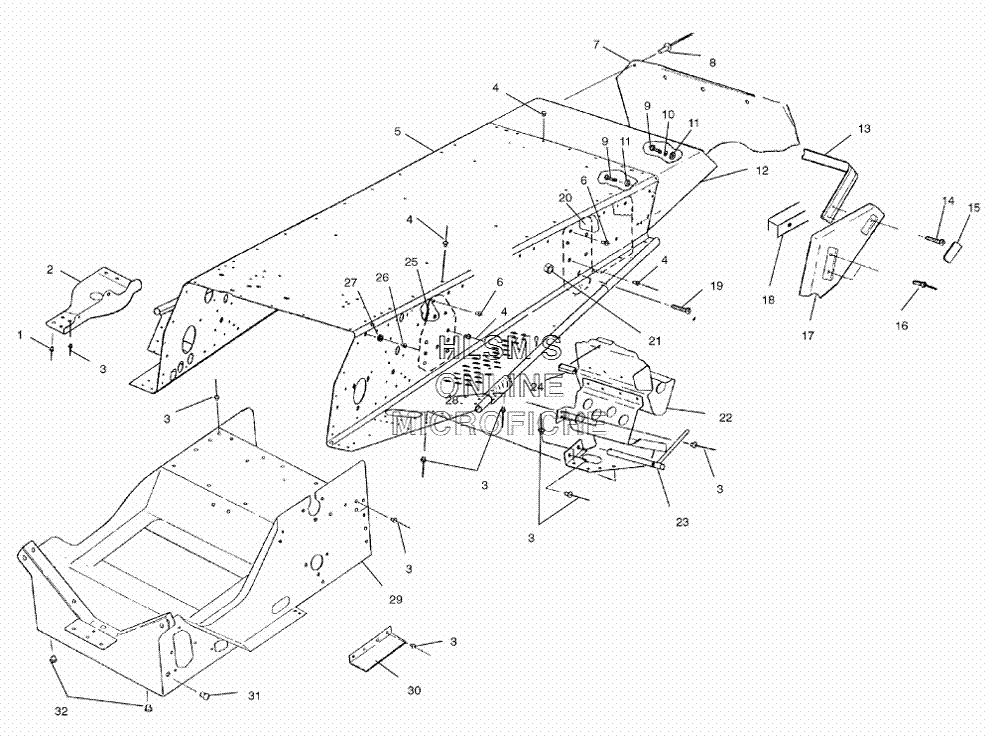

TUNNEL ASSEMBLY для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7661130 RIVET
    RIVET
  • 2
    5243419 GUARD CHAINCASE SUMP TUNNEL
    GUARD CHAINCASE SUMP TUNNEL
  • 3
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 4
    7661837 RIVET
    RIVET
  • 5
    1013575 TUNNEL ASSY., SPIERCE (XTRA 10, 136) (INCL. 12, 20, 25)
    TUNNEL ASSY., SPIERCE (XTRA 10, 136) (INCL. 12, 20, 25)
  • 6
    7661836 RIVET
    RIVET
  • 7
    5410394-1106 FLAP SNOW (BLACK W/SILVER)
    FLAP SNOW (BLACK W/SILVER)
  • 8
    7621418 POP RIVET
    POP RIVET
  • 9
    7512240 BOLT
    BOLT
  • 10
    7552801 LOCK, WASHER
    LOCK, WASHER
  • 11
    7558301 WASHER
    WASHER
  • 12
    1013576 PANEL ASSY., TUNNEL BACK
    PANEL ASSY., TUNNEL BACK
  • 13
    2670169-309 BUMPER ASSY., NATURAL (REAR)
    BUMPER ASSY., NATURAL (REAR)
  • 14
    7512084 SCREW
    SCREW
  • 15
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 16
    7621515 RIVET
    RIVET
  • 17
    5432562 COVER, BUMPER, W/HANDLE (LEFT)
    COVER, BUMPER, W/HANDLE (LEFT)
  • 17
    5432563 COVER, BUMPER, W/HANDLE (RIGHT)
    COVER, BUMPER, W/HANDLE (RIGHT)
  • 18
    5131546 SUPPORT, HAND HOLD
    SUPPORT, HAND HOLD
  • 19
    7517388 SCREW
    SCREW
  • 20
    1013577-067 WELD SUSPENSION BRACKET, SPRCE (LEFT/REAR/BLACK)
    WELD SUSPENSION BRACKET, SPRCE (LEFT/REAR/BLACK)
  • 20
    1013578-067 WELD SUSPENSION BRACKET, SPRCE (RIGHT/REAR/BLACK)
    WELD SUSPENSION BRACKET, SPRCE (RIGHT/REAR/BLACK)
  • 21
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 22
    1012683 FOOTREST ASSY (LEFT)
    FOOTREST ASSY (LEFT)
  • 22
    1012684 FOOTREST ASSY (RIGHT)
    FOOTREST ASSY (RIGHT)
  • 23
    1012812-067 SUPPORT, TUNNEL (LEFT/BLACK)
    SUPPORT, TUNNEL (LEFT/BLACK)
  • 23
    1012813-067 SUPPORT, TUNNEL (RIGHT/BLACK)
    SUPPORT, TUNNEL (RIGHT/BLACK)
  • 24
    5521238 EXTRUSION, CLUTCH GUARD
    EXTRUSION, CLUTCH GUARD
  • 25
    5244287-067 PAD, SUSPENSION (FRONT)
    PAD, SUSPENSION (FRONT)
  • 26
    7621222 RIVET
    RIVET
  • 27
    7080227 SNAP MALE
    SNAP MALE
  • 28
    5243112 GRIP, TUNNEL ROLL
    GRIP, TUNNEL ROLL
  • 29
    1013358 WELD, BULKHEAD
    WELD, BULKHEAD
  • 30
    5222857 GUARD, ADAPTER GUIDE
    GUARD, ADAPTER GUIDE
  • 31
    7080416 PLUG, HOLE
    PLUG, HOLE
  • 32
    7080398 PLUG, HOLE
    PLUG, HOLE
