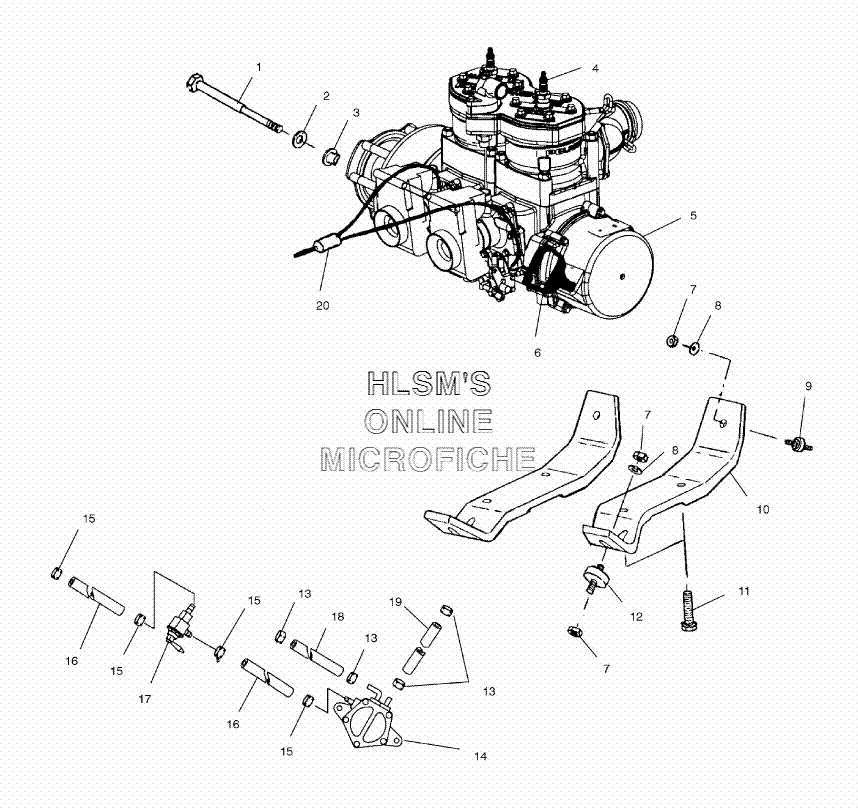

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска
-
№АртикулНазвание
-
17517501 SCREWSCREW
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCHWASHER, CLUTCH
-
43070163 SPARKPLUG (BR9ES)SPARKPLUG (BR9ES)
-
52202031 SHORT BLOCK KITSHORT BLOCK KIT
-
65431499 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
77547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
87555893 WASHERWASHER
-
93021099 MOUNT ENGINEMOUNT ENGINE
-
105131775 STRAP ENGINE MOUNTING (LEFT)STRAP ENGINE MOUNTING (LEFT)
-
105131776 STRAP ENGINE MOUNTING (RIGHT)STRAP ENGINE MOUNTING (RIGHT)
-
117517399 SCREWSCREW
-
123110061 MOUNT, ENGINEMOUNT, ENGINE
-
137080003 CLAMP, HOSECLAMP, HOSE
-
142520135 PUMP, FUEL 1 OUTLETPUMP, FUEL 1 OUTLET
-
157080307 CLAMPCLAMP
-
168350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
177052211 VALVE, FUEL SHUTOFFVALVE, FUEL SHUTOFF
-
188350017-600 FUEL, LINE, ETHERFUEL, LINE, ETHER
-
198450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
207080733 CABLE, THROTTLE, W/OIL (38MM)CABLE, THROTTLE, W/OIL (38MM)
