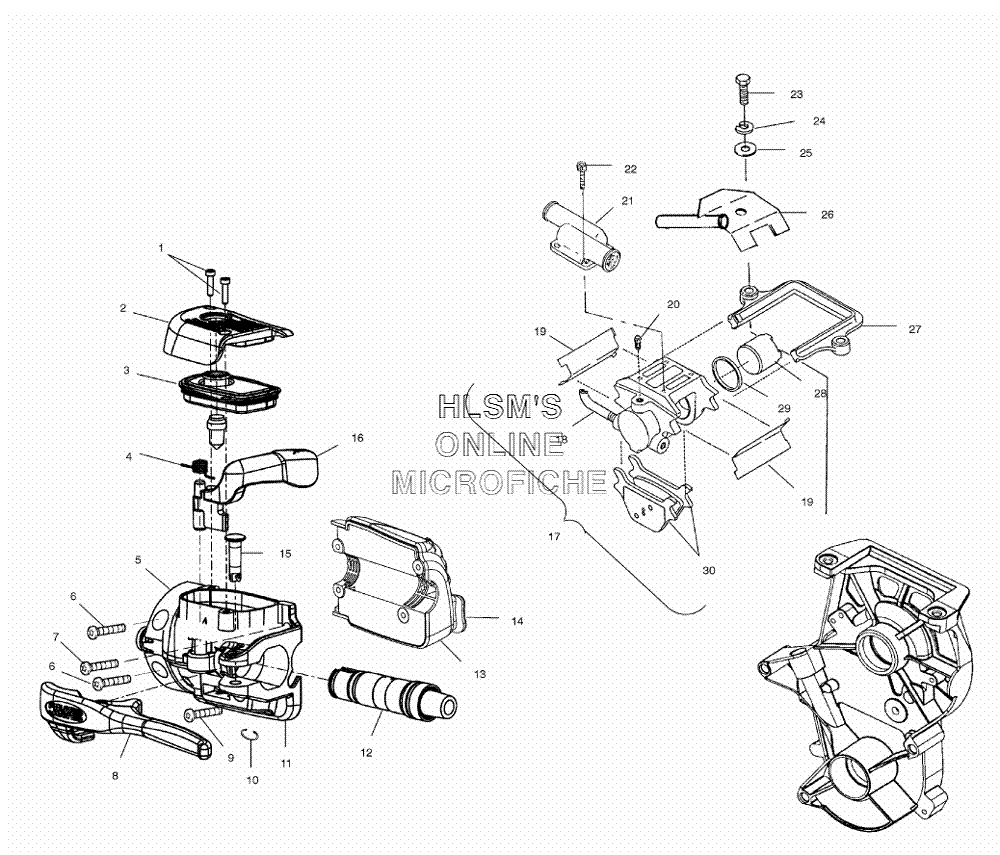

BRAKE ASSEMBLY для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY (INCL. 1, 3)
    COVER ASSY (INCL. 1, 3)
  • 4
    2201250 PARKING LEVER SPRING KIT
    PARKING LEVER SPRING KIT
  • 5
    2010209 MASTER CYLINDER ASSY (INCL. 2, 4, 8, 11, 12, 15)
    MASTER CYLINDER ASSY (INCL. 2, 4, 8, 11, 12, 15)
  • 6
    7517441 SCREW
    SCREW
  • 7
    7512078 SCREW
    SCREW
  • 8
    2201943 LEVER KIT, 3 NOTCH/PIN/RING
    LEVER KIT, 3 NOTCH/PIN/RING
  • 9
    7517566 SCREW
    SCREW
  • 10
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 11
    2201948 MASTER CYLINDER ASSY
    MASTER CYLINDER ASSY
  • 11
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 12
    2201944 CARTRIDGE SUB ASSY (5/8'')
    CARTRIDGE SUB ASSY (5/8'')
  • 13
    2010167 CONTROL ASSY. (LEFT) (BASIC)
    CONTROL ASSY. (LEFT) (BASIC)
  • 14
    5433291 BUTTON SWITCH HI/LO
    BUTTON SWITCH HI/LO
  • 15
    2201946 PIVOT PIN KIT, ALUM W/SNAP RING
    PIVOT PIN KIT, ALUM W/SNAP RING
  • 16
    2201251 PARKLEVER AND SPRING KIT (INCL. 4)
    PARKLEVER AND SPRING KIT (INCL. 4)
  • 17
    1910344 BRAKE CALIPER (INCL. 28, 29, 30)
    BRAKE CALIPER (INCL. 28, 29, 30)
  • 18
    1910313 LINE BRAKE
    LINE BRAKE
  • 19
    2200467 CLIP SPRING KIT
    CLIP SPRING KIT
  • 20
    1930735 INLET KIT
    INLET KIT
  • 21
    1930728 COOLER, WATER
    COOLER, WATER
  • 21
    2201024 GASKET, BRAKE COOLER
    GASKET, BRAKE COOLER
  • 22
    1930729 SCREW SET
    SCREW SET
  • 23
    7515521 BOLT
    BOLT
  • 24
    7552603 WASHER, SPRING
    WASHER, SPRING
  • 25
    7555806 WASHER, FLAT
    WASHER, FLAT
  • 26
    1012581 GUIDE, ROPE
    GUIDE, ROPE
  • 27
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 28
    1930734 PISTON SEAL KIT (INCL. 29)
    PISTON SEAL KIT (INCL. 29)
  • 29
    2200466 SEAL
    SEAL
  • 30
    2201430 BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 19)
    BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 19)
