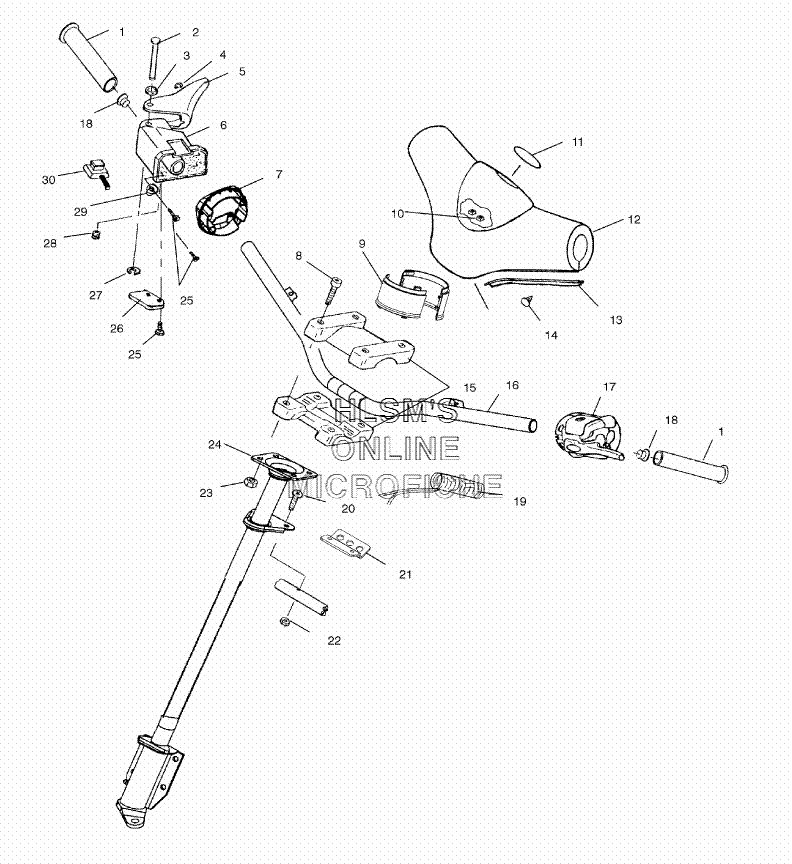

HANDLEBAR ASSEMBLY для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    7661624 PIN, HINGE
    PIN, HINGE
  • 3
    7555730 WASHER
    WASHER
  • 4
    7710503 RETAINING, RING
    RETAINING, RING
  • 5
    5432970 THROTLE, LEVER (35.5MM)
    THROTLE, LEVER (35.5MM)
  • 5
    2010171 LEVER ASSY., HEATER HI/L (35.5MM)
    LEVER ASSY., HEATER HI/L (35.5MM)
  • 6
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 7
    5433345 ADAPTER BLOCK, THROTTLE
    ADAPTER BLOCK, THROTTLE
  • 8
    7517238 SCREW
    SCREW
  • 9
    5433331 BOOT, HANDLEBAR
    BOOT, HANDLEBAR
  • 10
    7670106 NUT PUSH ON (.170 .180 Y)
    NUT PUSH ON (.170 .180 Y)
  • 11
    5434179 EMBLEM ''STAR'' PLM. BEZEL HANDLEBAR
    EMBLEM ''STAR'' PLM. BEZEL HANDLEBAR
  • 12
    5433159-070 COVER HANDLEBAR (BLACK)
    COVER HANDLEBAR (BLACK)
  • 13
    5433160-070 SLIDE HANDLEBAR COVER (BLACK)
    SLIDE HANDLEBAR COVER (BLACK)
  • 14
    4010287 DART CLIP NYLON (BLACK)
    DART CLIP NYLON (BLACK)
  • 15
    5630187-067 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 16
    1820666-067 HANDLEBAR (BLACK)
    HANDLEBAR (BLACK)
  • 17
    2010167 CONTROL ASSY. (LEFT)
    CONTROL ASSY. (LEFT)
  • 18
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 19
    2460677 HEATER, GRIP (LO/MED/HI)
    HEATER, GRIP (LO/MED/HI)
  • 20
    7517377 SCREW
    SCREW
  • 21
    5242553-067 BRACKET, RETENTION (BLACK)
    BRACKET, RETENTION (BLACK)
  • 22
    7542103 NUT, LOCK
    NUT, LOCK
  • 23
    7542122 NUT LOCK
    NUT LOCK
  • 24
    1820663-067 STEERING POST (BLACK)
    STEERING POST (BLACK)
  • 25
    7511848 SCREW, SEMS
    SCREW, SEMS
  • 26
    5432261 HOLDER, WIRE
    HOLDER, WIRE
  • 27
    7710401 E-RING
    E-RING
  • 28
    7512465 SCREW
    SCREW
  • 29
    7555727 RIVET, BURR
    RIVET, BURR
  • 30
    4110106 SWITCH, AUX.SHUT OFF
    SWITCH, AUX.SHUT OFF
