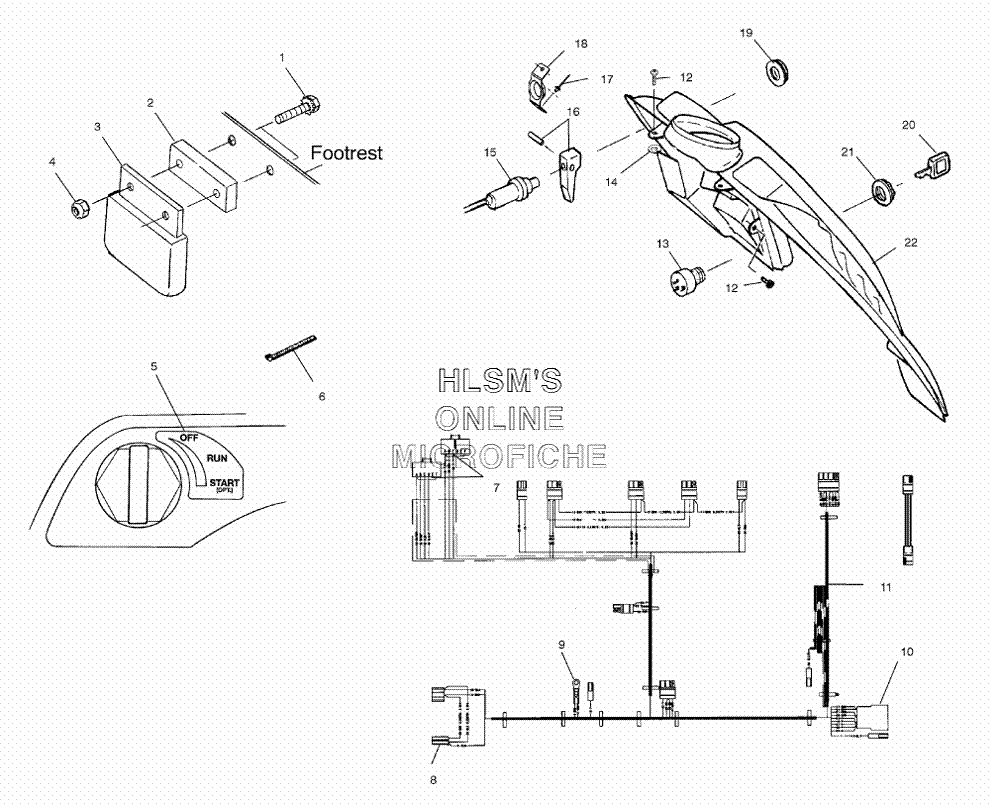

CONSOLE для Polaris 500 RMK 136 (S02SR5AS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512031 BOLT
    BOLT
  • 2
    5211573 SPACER, REGULATOR
    SPACER, REGULATOR
  • 3
    4060123 REGULATOR (14.3VAC)
    REGULATOR (14.3VAC)
  • 4
    7541925 NUT
    NUT
  • 5
    7077367 DECAL, CONSOLE IGNITION
    DECAL, CONSOLE IGNITION
  • 6
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 7
    4010192 SOCKET PACKARD #12047767
    SOCKET PACKARD #12047767
  • 8
    4020063 HOUSING
    HOUSING
  • 9
    4020092 TERMINAL, RING
    TERMINAL, RING
  • 10
    4020057 HOUSING W/RECEPTACLE
    HOUSING W/RECEPTACLE
  • 11
    2460799 HARNESS MAINWIRE
    HARNESS MAINWIRE
  • 12
    7515199 SCREW
    SCREW
  • 13
    2200358 IGNITION SWITCH KIT
    IGNITION SWITCH KIT
  • 14
    7555932 WASHER, NYLON
    WASHER, NYLON
  • 15
    7080734 CABLE, CHOKE, SINGLE PULL (INCL. 16, 19)
    CABLE, CHOKE, SINGLE PULL (INCL. 16, 19)
  • 16
    2201439 CHOKE LEVER KIT
    CHOKE LEVER KIT
  • 17
    7621330 RIVET, POP
    RIVET, POP
  • 18
    5243049 GUIDE RECOIL
    GUIDE RECOIL
  • 19
    5432944 NUT, CHOKE
    NUT, CHOKE
  • 20
    5410611 IGNITION KEY
    IGNITION KEY
  • 21
    7547035 NUT, IGNITION
    NUT, IGNITION
  • 22
    5432906 CONSOLE, HYBRID (BLACK)
    CONSOLE, HYBRID (BLACK)
