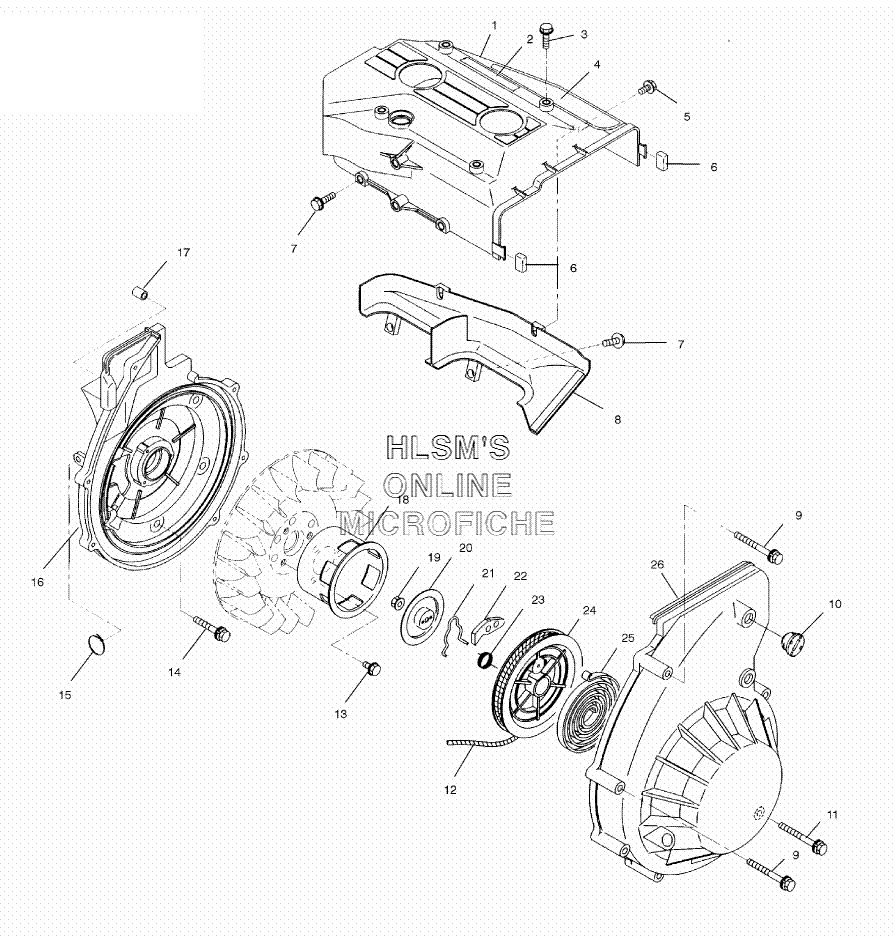

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3086991 BAFFLE, 1 CYLINDER
    BAFFLE, 1 CYLINDER
  • 2
    7077756 DECAL, ''POLARIS'', ENGINE SHROUD (RED)
    DECAL, ''POLARIS'', ENGINE SHROUD (RED)
  • 3
    3084566 BOLT, FLANGE
    BOLT, FLANGE
  • 4
    7077755 DECAL, ''440'',ENGINE SHROUD
    DECAL, ''440'',ENGINE SHROUD
  • 5
    3085693 BOLT, FLANGE
    BOLT, FLANGE
  • 6
    3085690 CAP, CYLINDER BAFFLE
    CAP, CYLINDER BAFFLE
  • 7
    3085694 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3085691 BAFFLE #2, CYLINDER
    BAFFLE #2, CYLINDER
  • 9
    3083550 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 10
    3086792 PLUG, RUBBER
    PLUG, RUBBER
  • 11
    3082030 BOLT
    BOLT
  • 12
    2870621 ROPE (FEET)
    ROPE (FEET)
  • 13
    3085688 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 14
    3084225 BOLT AND WASHER ASSY.
    BOLT AND WASHER ASSY.
  • 15
    3084823 BAND, WIRE
    BAND, WIRE
  • 16
    3087020 HOUSING, BLOWER
    HOUSING, BLOWER
  • 17
    3084857 PIN, STRAIGHT
    PIN, STRAIGHT
  • 18
    3087181 PULLY, STARTING
    PULLY, STARTING
  • 19
    3083381 NUT, FLANGE
    NUT, FLANGE
  • 20
    3083464 PLATE, FRICTION
    PLATE, FRICTION
  • 21
    3083379 SPRING, FRICTION
    SPRING, FRICTION
  • 22
    3083378 RATCHET
    RATCHET
  • 23
    3083463 SPRING, RETURN
    SPRING, RETURN
  • 24
    3083377 REEL, REWIND
    REEL, REWIND
  • 25
    3083376 SPRING, SPIRAL
    SPRING, SPIRAL
  • 26
    3087179 RECOIL STARTER (INCL.12, 19, 26)
    RECOIL STARTER (INCL.12, 19, 26)
  • 26
    3087180 STARTER CASE COMP.
    STARTER CASE COMP.
