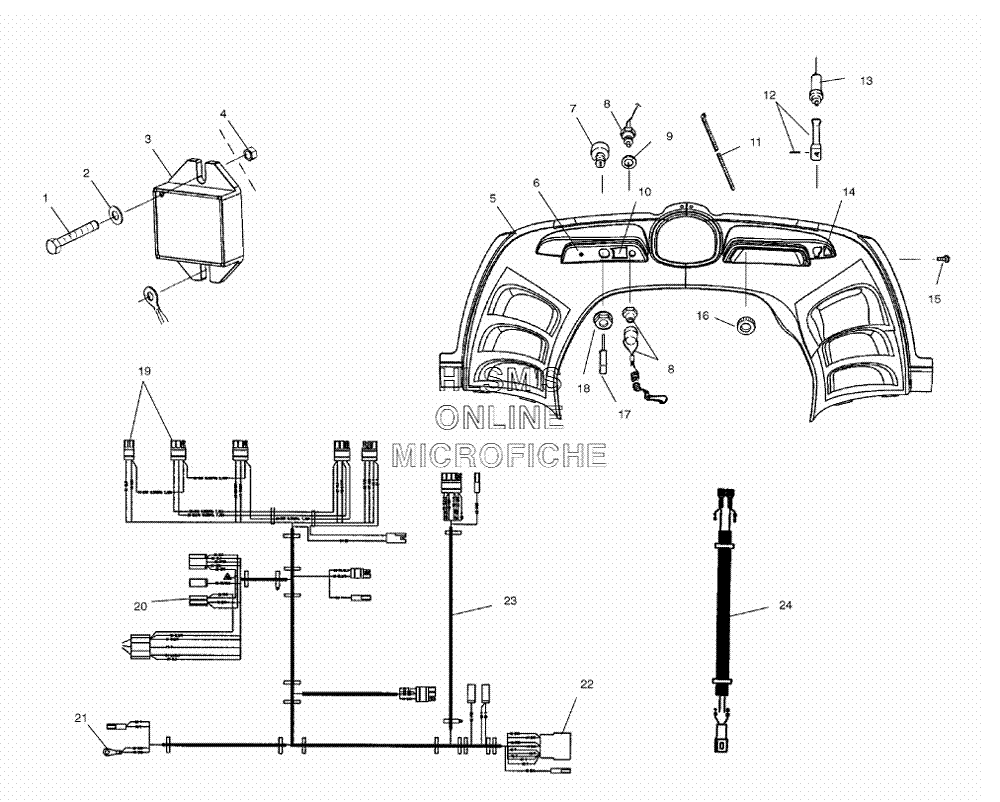

CONSOLE для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555904 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR (AC, 14.3 V)REGULATOR (AC, 14.3 V)
-
47541925 NUTNUT
-
55434103 CONSOLE, EDGECONSOLE, EDGE
-
64110263 SWITCH, HEATER HI/LOSWITCH, HEATER HI/LO
-
67661124 HAIRPIN, COTTER (3/16, 1/4)HAIRPIN, COTTER (3/16, 1/4)
-
72201614 IGNITION SWITCH KITIGNITION SWITCH KIT
-
84010187 SWITCH, TETHER HYBRIDSWITCH, TETHER HYBRID
-
97558707 BUSHINGBUSHING
-
107079783 DECAL, IGNITIONDECAL, IGNITION
-
117080138 CABLE TIECABLE TIE
-
122201439 CHOKE LEVER KIT (INCL. PIN)CHOKE LEVER KIT (INCL. PIN)
-
137080290 CABLE, CHOKE (INCL. 12, 17)CABLE, CHOKE (INCL. 12, 17)
-
147170061 DECAL, CHOKEDECAL, CHOKE
-
157515199 SCREWSCREW
-
165432944 NUT, CHOKENUT, CHOKE
-
179990000 CAP W/KEYCAP W/KEY
-
187547035 NUT, IGNITIONNUT, IGNITION
-
194010193 HOUSING, CONNECTORHOUSING, CONNECTOR
-
204020063 HOUSINGHOUSING
-
214020092 TERMINAL, RINGTERMINAL, RING
-
224020057 HOUSING W/RECEPTACLEHOUSING W/RECEPTACLE
-
232460997 HARNESS, MAIN TPSHARNESS, MAIN TPS
-
244010701 JUMPER, BRAKE SWITCHJUMPER, BRAKE SWITCH
