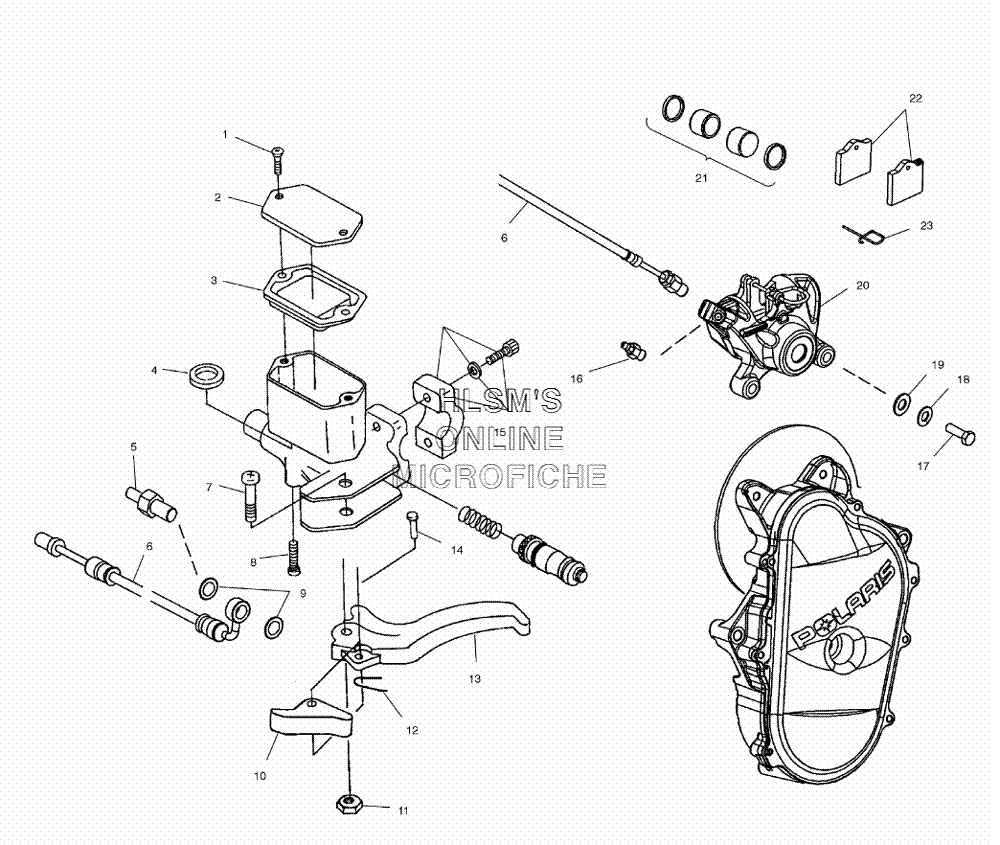

BRAKE ASSEMBLY для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    2010207 MASTER CYLINDER ASSY. (INCL. 1, 4, 7, 8, 10, 15)
    MASTER CYLINDER ASSY. (INCL. 1, 4, 7, 8, 10, 15)
  • 1B
    2200809 MASTER CYLINDER RES. KIT (INCL. 1, 2, 3, 4)
    MASTER CYLINDER RES. KIT (INCL. 1, 2, 3, 4)
  • 1
    1930797 BOLT, RES. CAP KIT, MASTER CYLINDER
    BOLT, RES. CAP KIT, MASTER CYLINDER
  • 2
    1930796 CAP, MASTER CYLINDER RES.
    CAP, MASTER CYLINDER RES.
  • 3
    1930795 DIAPHRAGM, MASTER CYLINDER RES.
    DIAPHRAGM, MASTER CYLINDER RES.
  • 5
    4010656 SWITCH, PRESSURE BRAKE
    SWITCH, PRESSURE BRAKE
  • 6
    1910602 LINE, BRAKE, BRAIDED
    LINE, BRAKE, BRAIDED
  • 7
    1930805 BOLT, MASTER CYLINDER HANDLE PIVOT
    BOLT, MASTER CYLINDER HANDLE PIVOT
  • 8
    1930792 BOLT, MASTER CYLINDER RESERVOIR KIT
    BOLT, MASTER CYLINDER RESERVOIR KIT
  • 9
    5410988 SEAL
    SEAL
  • 10
    2201090 LEVER, PARK BRAKE KIT (INCL. 12, 14)
    LEVER, PARK BRAKE KIT (INCL. 12, 14)
  • 11
    1930806 NUT, MASTER CYLINDER HANDLE PIVOT
    NUT, MASTER CYLINDER HANDLE PIVOT
  • 13
    2201921 LEVER, BRAKE, EDGE KIT (INCL. 11, 14)
    LEVER, BRAKE, EDGE KIT (INCL. 11, 14)
  • 14
    1930804 RIVET
    RIVET
  • 15
    2200808 MASTER CYLINDER CLAMP KIT
    MASTER CYLINDER CLAMP KIT
  • 16
    2202205 BLEEDER FITTING KIT
    BLEEDER FITTING KIT
  • 17
    7515534 BOLT
    BOLT
  • 18
    7552603 WASHER
    WASHER
  • 19
    7556160 WASHER
    WASHER
  • 20
    2202391 BRAKE CALIPER KIT ASSY., AIR (INCL. BRAKE PAD)
    BRAKE CALIPER KIT ASSY., AIR (INCL. BRAKE PAD)
  • 21
    2202207 PISTON/SEAL KIT
    PISTON/SEAL KIT
  • 21
    2202204 SEAL KIT
    SEAL KIT
  • 22
    2202202 BRAKE PAD KIT (TYPE 81)
    BRAKE PAD KIT (TYPE 81)
  • 23
    2202206 PIN RETAINING KIT
    PIN RETAINING KIT
