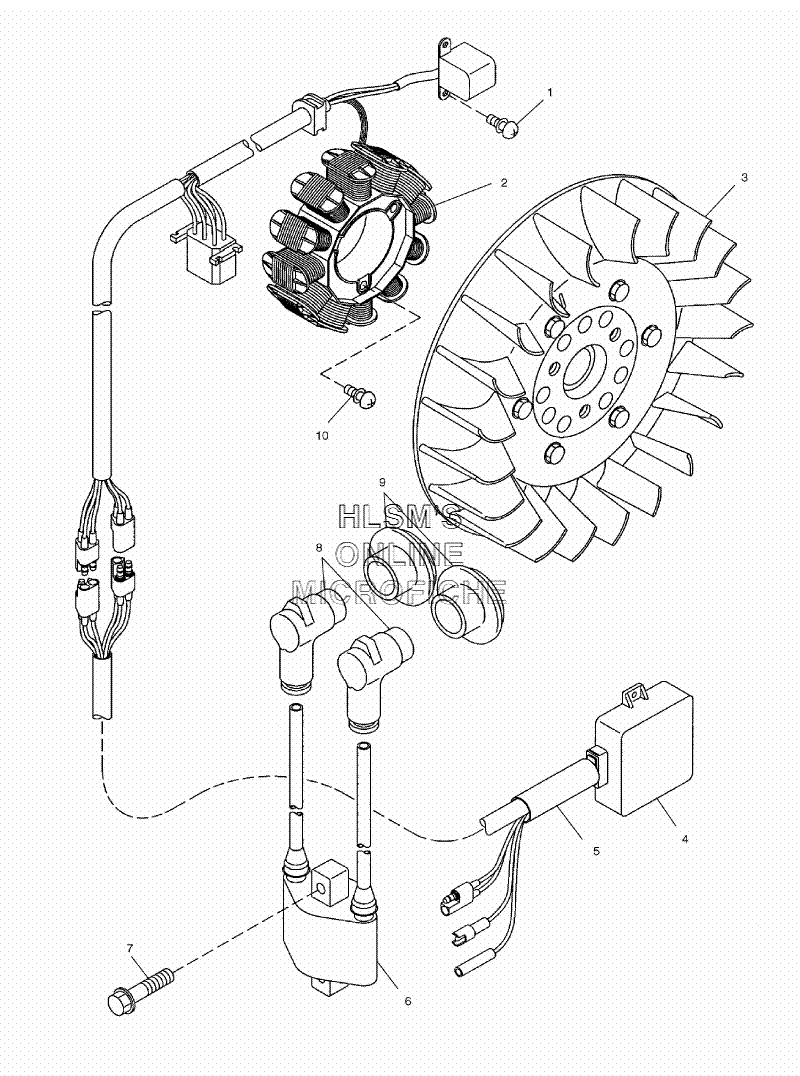

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 440 PRO X FAN COOLED (S02NX4FS) - 2002 года выпуска
-
№АртикулНазвание
-
13085698 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23087187 STATORSTATOR
-
33087188 FLYWHEEL ASSY.FLYWHEEL ASSY.
-
43087193 CDI, SYSTEMCDI, SYSTEM
-
53087194 HARNESSHARNESS
-
63087191 COIL, IGNITIONCOIL, IGNITION
-
73086751 BOLT, FLANGEBOLT, FLANGE
-
83086976 CAP, SPARK PLUGCAP, SPARK PLUG
-
93085935 CAP, SPARK PLUGCAP, SPARK PLUG
-
103085697 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
