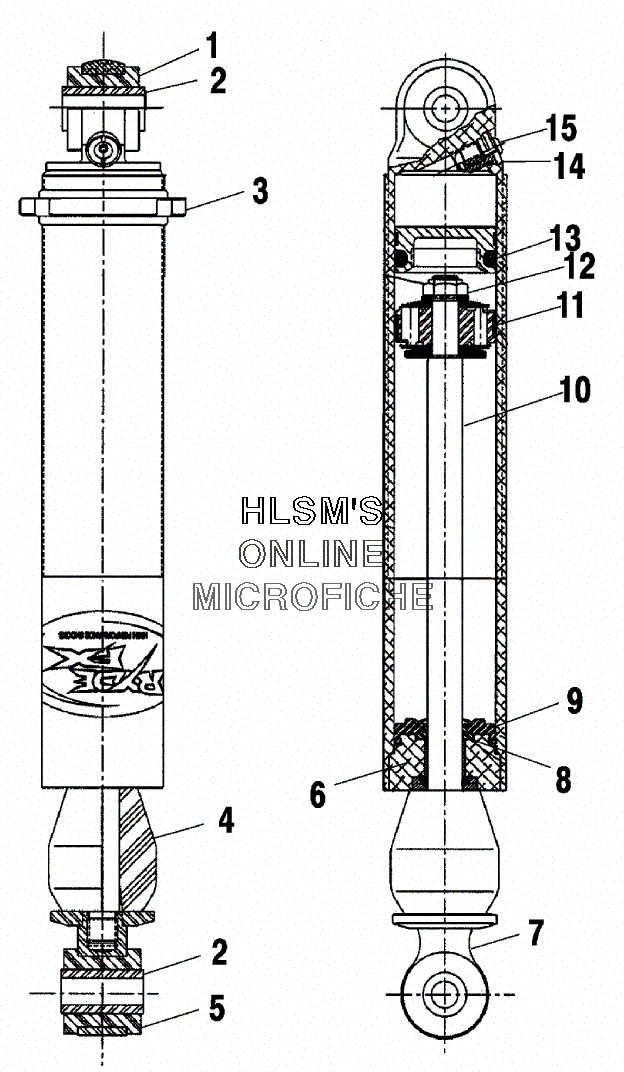

SUSPENSION - RYDE FX - IFS SHOCK для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска`
-
№АртикулНазвание
-
1A7041976 SHOCK, (IFS, IFP, 11X16.25, ALUM, AR)SHOCK, (IFS, IFP, 11X16.25, ALUM, AR)
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVE, (.38''IDX.63''ODX1.18 STEEL)SLEEVE, (.38''IDX.63''ODX1.18 STEEL)
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700042 COMP, BUMPERCOMP, BUMPER
-
51700072 BUSHINGBUSHING
-
61700007 CYL HEAD ASSY (1/2'' ROD)CYL HEAD ASSY (1/2'' ROD)
-
71700010 UPPER MOUNTUPPER MOUNT
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFT, (1/2''DIAX7.88''L)SHAFT, (1/2''DIAX7.88''L)
-
111700110 BANDED PISTON (.094'' ORIFICE)BANDED PISTON (.094'' ORIFICE)
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700076 PRESS, VALVE ASSYPRESS, VALVE ASSY
-
141700047 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
151700056 VALVE SCREWVALVE SCREW
