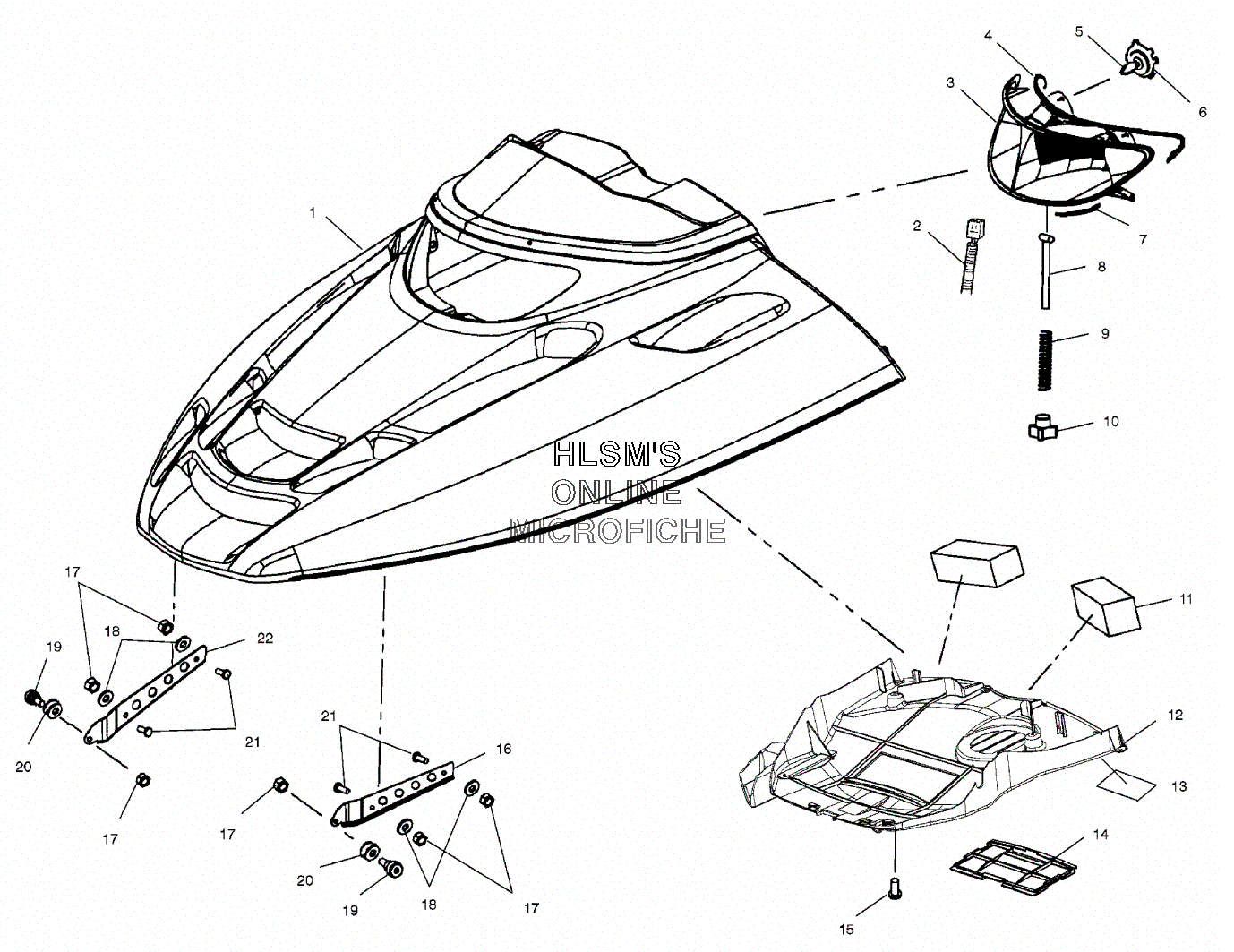

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2632521-293 HOOD, EDGE ASSY., (2H, SVC, RED)
    HOOD, EDGE ASSY., (2H, SVC, RED)
  • 2
    2460791 HARNESS, HDLGHT, EDGE, COMMON
    HARNESS, HDLGHT, EDGE, COMMON
  • 3
    2410132 HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)
    HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)
  • 4
    5812175 FOAM, HEADLIGHT SEAL EDGE, (TOP)
    FOAM, HEADLIGHT SEAL EDGE, (TOP)
  • 5
    2870448 BULB, QUARTZ.H/L, INDY
    BULB, QUARTZ.H/L, INDY
  • 6
    4032063 RETAINER, H/L BULB
    RETAINER, H/L BULB
  • 7
    5812174 FOAM, HEADLIGHT SEAL EDGE, (BOTTOM)
    FOAM, HEADLIGHT SEAL EDGE, (BOTTOM)
  • 8
    7517872 BOLT, TEE ADJUSTER, (2.25)
    BOLT, TEE ADJUSTER, (2.25)
  • 9
    7041954 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 10
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKING B
    KNOB, HEADLIGHT, ADJUST, LOCKING B
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    5433516 PLENUM, HOOD INTAKE
    PLENUM, HOOD INTAKE
  • 13
    7079197 DECAL, SUSP.SET, UP, EDGE
    DECAL, SUSP.SET, UP, EDGE
  • 14
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 15
    7512068 SCREW
    SCREW
  • 16
    5243567-067 HINGE, UPPER, (LEFT), (BLACK)
    HINGE, UPPER, (LEFT), (BLACK)
  • 17
    7542122 NUT, LOCK
    NUT, LOCK
  • 18
    7558301 WASHER
    WASHER
  • 19
    7512113 SCREW
    SCREW
  • 20
    5332403 SPACER, HINGE
    SPACER, HINGE
  • 21
    7512240 BOLT
    BOLT
  • 22
    5243568-067 HINGE, UPPER, (RIGHT), (BLACK)
    HINGE, UPPER, (RIGHT), (BLACK)
