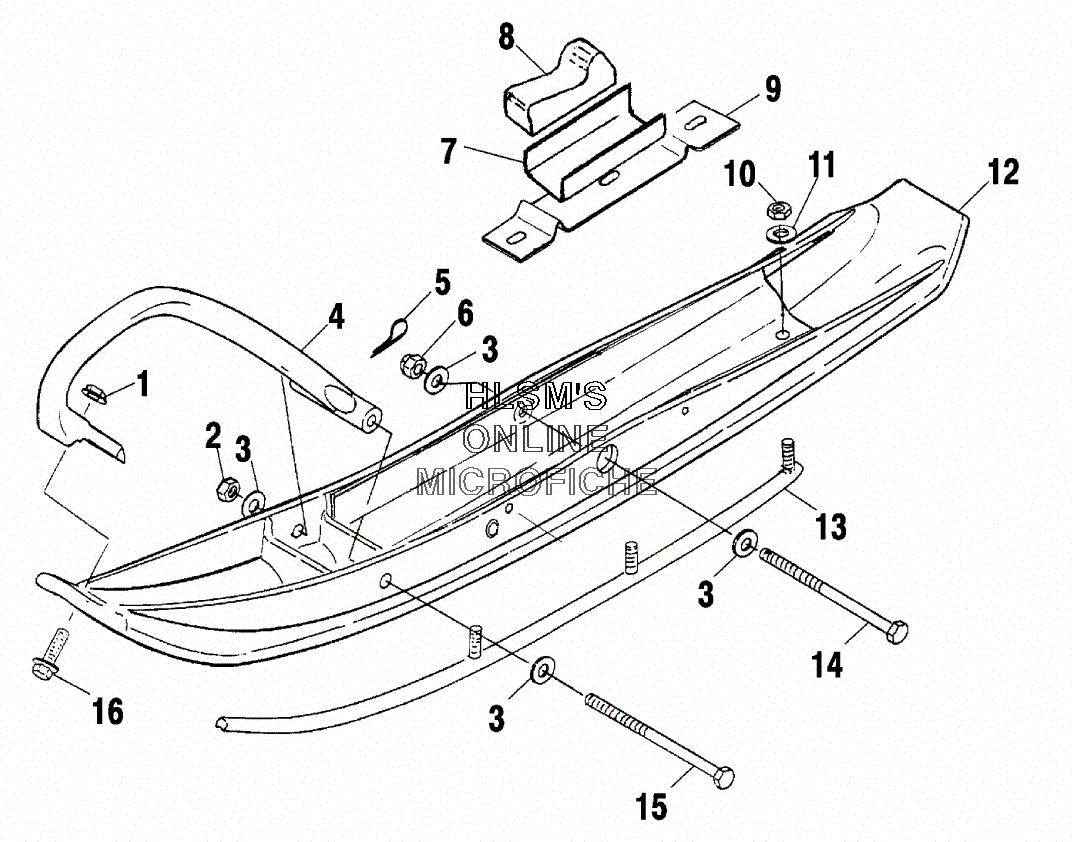

SKI ASSEMBLY для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7542321 NUT LOCK
    NUT LOCK
  • 2
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 3
    7555832 WASHER
    WASHER
  • 4
    5434165-070 TOE, PLASTIC SKI, (BLACK)
    TOE, PLASTIC SKI, (BLACK)
  • 5
    7661205 PIN, COTTER
    PIN, COTTER
  • 6
    7542438 NUT, CASTLE
    NUT, CASTLE
  • 7
    5243824 RETAINER, SKI RUBBER
    RETAINER, SKI RUBBER
  • 8
    5412018 STOP, SKI, RUBBER
    STOP, SKI, RUBBER
  • 9
    5241912-067 SUPPORT, SKI, RUBBER, (BLACK)
    SUPPORT, SKI, RUBBER, (BLACK)
  • 10
    7542324 NUT
    NUT
  • 11
    7558302 WASHER, WROUGHT
    WASHER, WROUGHT
  • 12
    1820821-070 CMP SKI ASSY., (BLANK W/RK SDL), (BLACK)
    CMP SKI ASSY., (BLANK W/RK SDL), (BLACK)
  • 13
    2872566 SKAG, (3'' 90Ш COMP) (PAIR)
    SKAG, (3'' 90Ш COMP) (PAIR)
  • 14
    7512596 SCREW
    SCREW
  • 15
    7515514 BOLT
    BOLT
  • 16
    7515307 BOLT
    BOLT
