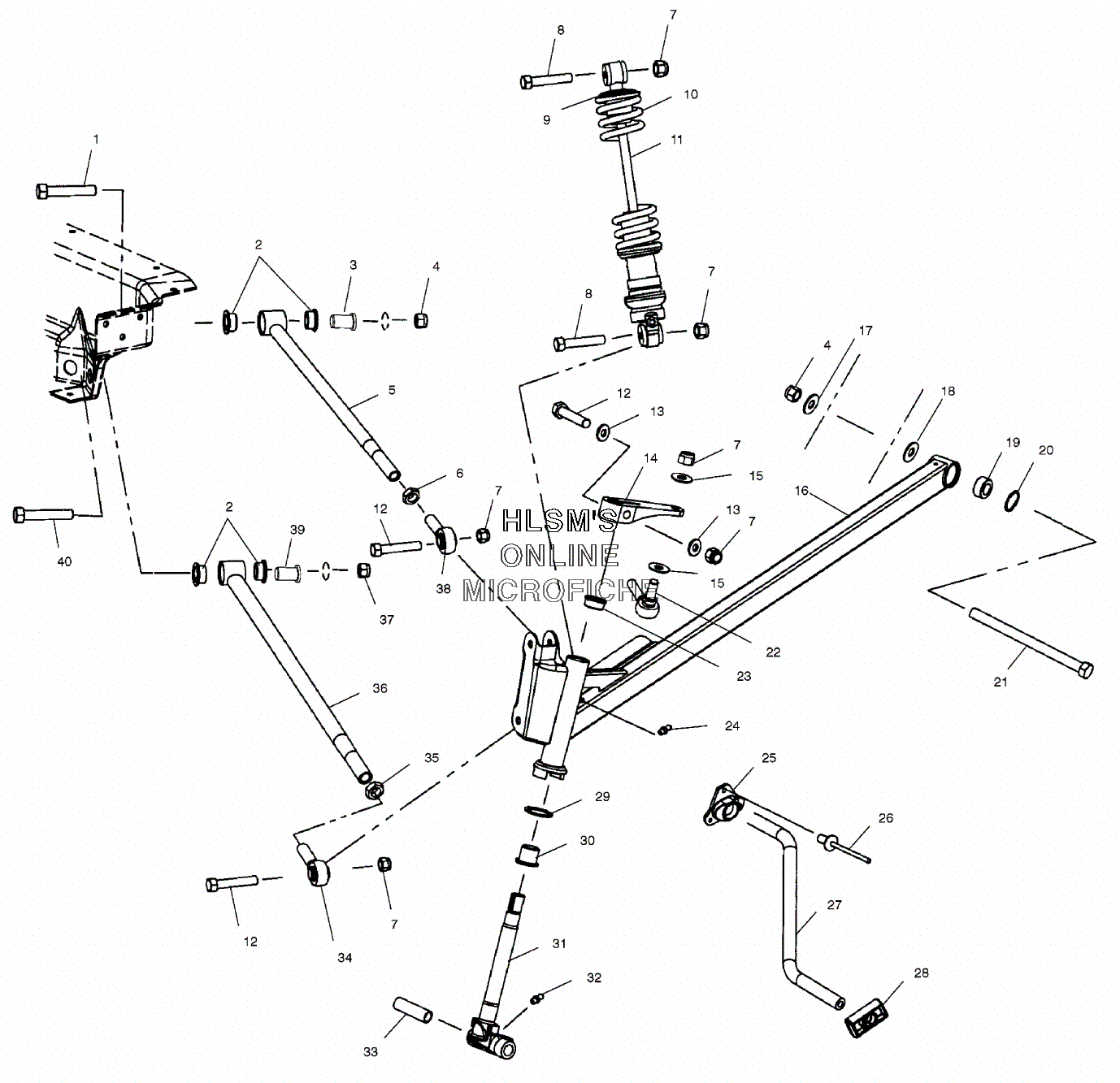

SUSPENSION - FRONT для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7512597 BOLT, (7/16, 20X2.75, HXCAP, GR5, Y)
    BOLT, (7/16, 20X2.75, HXCAP, GR5, Y)
  • 2
    5434036 BUSHING, RAD ROD PIVOT, INNER
    BUSHING, RAD ROD PIVOT, INNER
  • 3
    5132779 BUSHING, SHLDR, (.443X.750X1.215)
    BUSHING, SHLDR, (.443X.750X1.215)
  • 4
    7547066 NUT, (7/16, 20, NYLOK, Y)
    NUT, (7/16, 20, NYLOK, Y)
  • 5
    1820679-293 WELD, RADIUS ROD, (UPPER, RED)
    WELD, RADIUS ROD, (UPPER, RED)
  • 6
    7542520 NUT JAM
    NUT JAM
  • 7
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 8
    7515433 SCREW
    SCREW
  • 9
    5020618 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
  • 10
    7041950-067 SPRING, COMP, (68/160#, 11.5, BLACK)
    SPRING, COMP, (68/160#, 11.5, BLACK)
  • 11
    7041976 SHOCK, (IFS, IFP, 11X16.25, ALUM, AR)
    SHOCK, (IFS, IFP, 11X16.25, ALUM, AR)
  • 12
    7517583 SCR, (3/8, 24X2 HX/CP GR5, Y, SP)
    SCR, (3/8, 24X2 HX/CP GR5, Y, SP)
  • 13
    7555832 WASHER
    WASHER
  • 14
    5132728 ARM, STEERING, MACHINED, EDGE
    ARM, STEERING, MACHINED, EDGE
  • 15
    7555797 WASHER
    WASHER
  • 16
    1820962-293 TRAILING ARM, SVC, ASSY., (LEFT), RED ASSEMBLIES INCLUDE 19 AND 20
    TRAILING ARM, SVC, ASSY., (LEFT), RED ASSEMBLIES INCLUDE 19 AND 20
  • 16
    1820963-293 TRAILING ARM, SVC, ASSY., (RIGHT), RED ASSEMBLIES INCLUDE 19 AND 20
    TRAILING ARM, SVC, ASSY., (RIGHT), RED ASSEMBLIES INCLUDE 19 AND 20
  • 17
    7555820 WASHER
    WASHER
  • 18
    5132364 CUP, TRAILING ARM MOUNT
    CUP, TRAILING ARM MOUNT
  • 19
    7061042 BEARING, SPHERICAL, (7/16, PLASTIC)
    BEARING, SPHERICAL, (7/16, PLASTIC)
  • 20
    7710437 RING, RETAINING
    RING, RETAINING
  • 21
    7512099 BOLT
    BOLT
  • 22
    7061057 ROD, END, (3/8, PL, 75Ш, 1.00, RIGHT)
    ROD, END, (3/8, PL, 75Ш, 1.00, RIGHT)
  • 23
    3573909 BUSHING, FLANGE
    BUSHING, FLANGE
  • 24
    7080433 ZERK, FITTING, THREADED
    ZERK, FITTING, THREADED
  • 25
    5433234 BUSHING, TORSION BAR
    BUSHING, TORSION BAR
  • 26
    7621477 RIVET
    RIVET
  • 27
    5244415-067 BAR, TRSN, (1/2, 42.5 EDGE), (BLACK)
    BAR, TRSN, (1/2, 42.5 EDGE), (BLACK)
  • 28
    5433884 SLIDE, TORSION BAR, (1/2)
    SLIDE, TORSION BAR, (1/2)
  • 29
    7556509 WASHER SPECIAL
    WASHER SPECIAL
  • 30
    3574208 BUSHING, SPINDLE HSG
    BUSHING, SPINDLE HSG
  • 31
    6230160-067 SHAFT, SPINDLE, HARDENED, (BLACK)
    SHAFT, SPINDLE, HARDENED, (BLACK)
  • 32
    7080306 FITTING, LUBE.W/BALL CK.
    FITTING, LUBE.W/BALL CK.
  • 33
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 34
    7061060 ROD END, RADIUS, (1/2)
    ROD END, RADIUS, (1/2)
  • 35
    7542711 NUT, JAM
    NUT, JAM
  • 36
    1820677-293 WELD, RADIUS ROD, (LOWER, RED)
    WELD, RADIUS ROD, (LOWER, RED)
  • 37
    7542703 NUT FLEX
    NUT FLEX
  • 38
    7061061 ROD END, RADIUS, (7/16)
    ROD END, RADIUS, (7/16)
  • 39
    5132780 BUSHING, SHLDR, (.505X.750X1.215)
    BUSHING, SHLDR, (.505X.750X1.215)
  • 40
    7512684 BOLT
    BOLT
