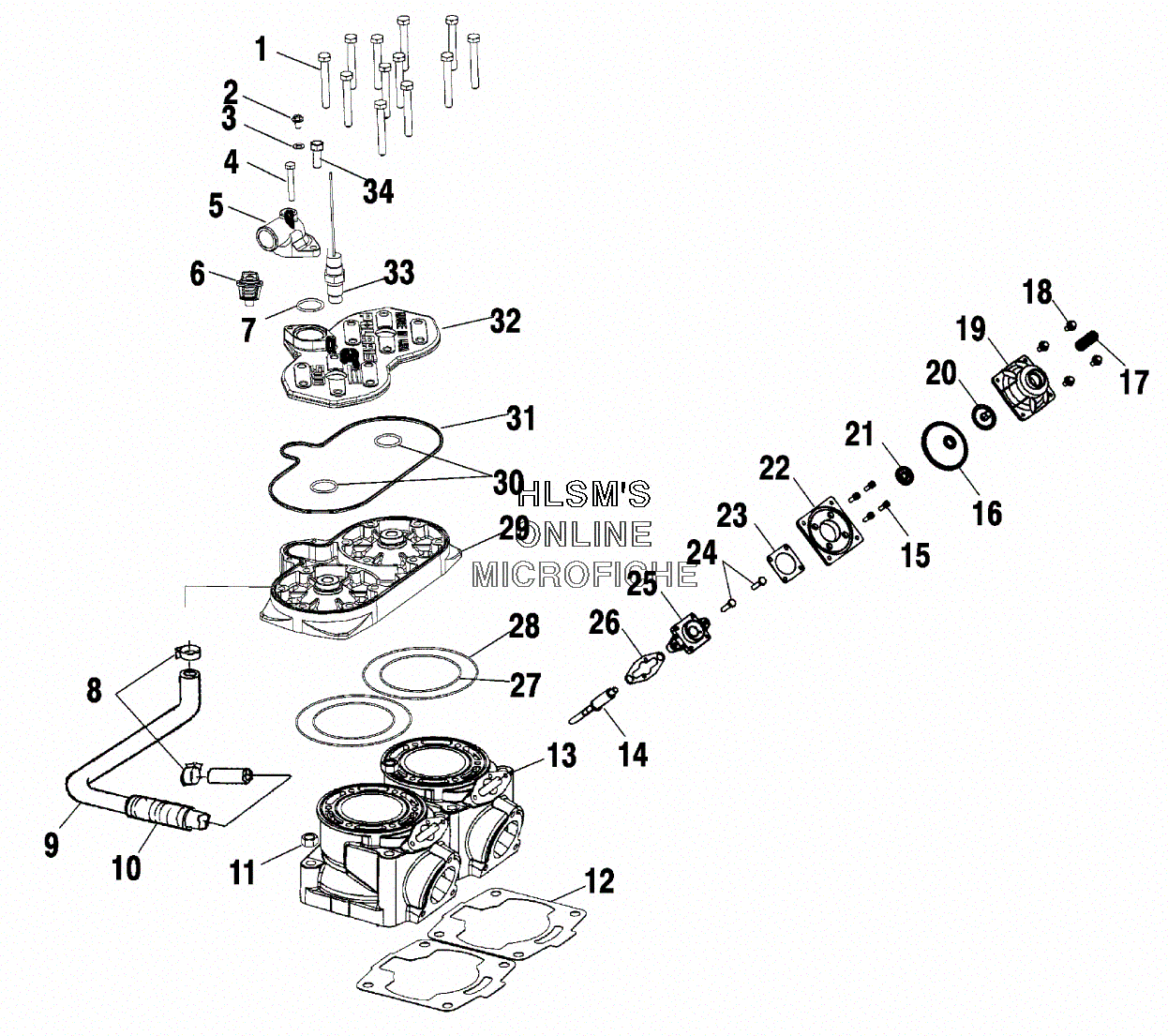

CYLINDER ASSEMBLY для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    7517534 SCREW, (M8X1.25X60)
    SCREW, (M8X1.25X60)
  • 2
    7517679 SCREW, (M6X1.0 X 13, SL/HX/FL, Z)
    SCREW, (M6X1.0 X 13, SL/HX/FL, Z)
  • 3
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 4
    7516818 SCREW
    SCREW
  • 5
    5630992 COVER, THERMOSTAT, (M6 BLEED LG)
    COVER, THERMOSTAT, (M6 BLEED LG)
  • 6
    7052258 THERMOSTAT, (120ШF W/O BYPASS)
    THERMOSTAT, (120ШF W/O BYPASS)
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    7080810 CLAMP, (3 TONG .810, .970)
    CLAMP, (3 TONG .810, .970)
  • 9
    5411536 HOSE, BYPASS
    HOSE, BYPASS
  • 10
    5521398-96 CONDUIT, FLEX (.75''ID)
    CONDUIT, FLEX (.75''ID)
  • 11
    7547013 NUT
    NUT
  • 12
    5811538 GASKET, CYL.BASE
    GASKET, CYL.BASE
  • 13
    3021283 CYLINDER, (81MM, SNO, EV)
    CYLINDER, (81MM, SNO, EV)
  • 14
    5132669 VALVE, GUILLOTINE (GEN 3.5,700EV)
    VALVE, GUILLOTINE (GEN 3.5,700EV)
  • 15
    7517314 SCREW
    SCREW
  • 16
    5412147 BELLOWS, FABRIC POLYESTER
    BELLOWS, FABRIC POLYESTER
  • 17
    7041786-01 SPRING, COMP, (GEN3.5 EV, RD/WHT)
    SPRING, COMP, (GEN3.5 EV, RD/WHT)
  • 18
    7516820 SCREW
    SCREW
  • 19
    5434599 HOUSING, BELLOWS EXH VALVE BUSH
    HOUSING, BELLOWS EXH VALVE BUSH
  • 20
    5631381 CAP/NUT, BELLOWS, EXH VALVE DOM
    CAP/NUT, BELLOWS, EXH VALVE DOM
  • 21
    5132950 WASHER, BELLOWS, EXH VALVE, DOM
    WASHER, BELLOWS, EXH VALVE, DOM
  • 22
    2202465 ADAPTER EV W/CAP KIT
    ADAPTER EV W/CAP KIT
  • 23
    5433375 GASKET, HOUSING EV
    GASKET, HOUSING EV
  • 24
    7516823 SCREW
    SCREW
  • 25
    1201919 EV 3.5 HOUSING ASSY., W/BUSH H.DOWEL
    EV 3.5 HOUSING ASSY., W/BUSH H.DOWEL
  • 26
    5812087 GASKET, GEN 3.5 EV BASE
    GASKET, GEN 3.5 EV BASE
  • 27
    5410932 O-RING
    O-RING
  • 28
    5410931 O-RING
    O-RING
  • 29
    3021210 HEAD, (CYL 81MM, TWIN SNOW, EV)
    HEAD, (CYL 81MM, TWIN SNOW, EV)
  • 30
    5410917 O-RING
    O-RING
  • 31
    5411294 SEAL, RUBBER, HEAD
    SEAL, RUBBER, HEAD
  • 32
    5631048-093 COVER, HEAD, (81MM, TWN, SNO, FIRED)
    COVER, HEAD, (81MM, TWN, SNO, FIRED)
  • 33
    4010614 SENSOR, THERMISTER, (ESX8477A)
    SENSOR, THERMISTER, (ESX8477A)
  • 34
    7516822 SCREW
    SCREW
