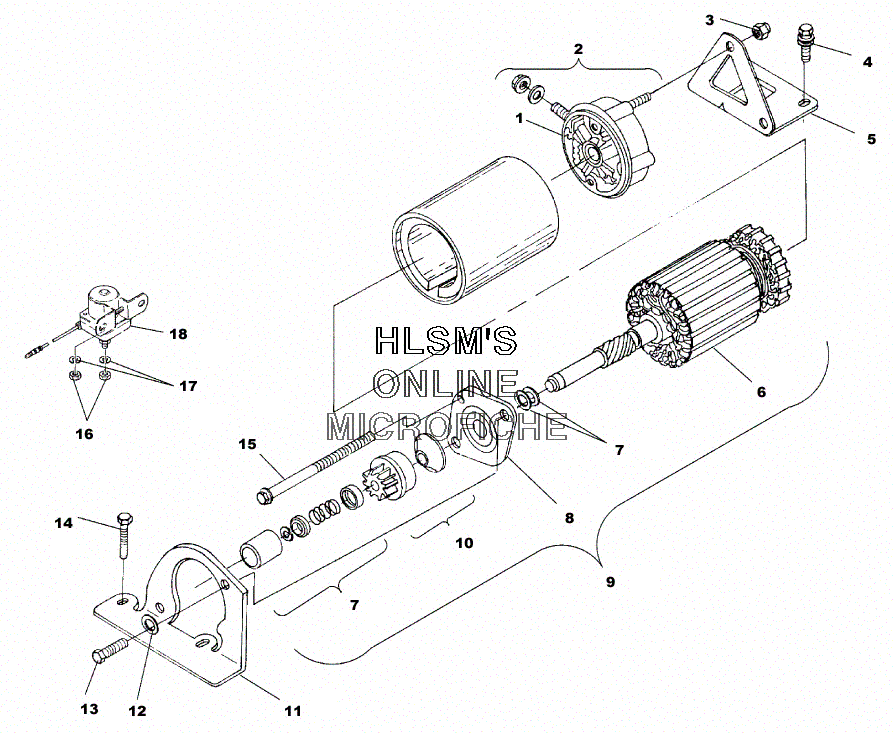

STARTING MOTOR для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    2200759 BRUSH AND SPRING KIT
    BRUSH AND SPRING KIT
  • 2
    2200758 COMMUTATOR CAP ASSY. KIT (INCL. 1)
    COMMUTATOR CAP ASSY. KIT (INCL. 1)
  • 3
    7542153 NUT
    NUT
  • 4
    7516815 SCREW
    SCREW
  • 5
    5240956 BRACKET, R.STARTER
    BRACKET, R.STARTER
  • 6
    2200756 ARMATURE ASSY. KIT
    ARMATURE ASSY. KIT
  • 7
    2200755 DRIVE HDWE. KIT
    DRIVE HDWE. KIT
  • 8
    2200757 DRIVECAP ASSY. KIT
    DRIVECAP ASSY. KIT
  • 9
    4170006 MOTOR, STARTER, (DOMESTIC)
    MOTOR, STARTER, (DOMESTIC)
  • 10
    2200754 DRIVE ASSY. KIT
    DRIVE ASSY. KIT
  • 11
    5241271 BRACKET, STARTER, FR.(2 CYL)
    BRACKET, STARTER, FR.(2 CYL)
  • 12
    7552603 WASHER
    WASHER
  • 13
    7512492 SCREW
    SCREW
  • 14
    7516730 SCREW AND WASHER ASSY.
    SCREW AND WASHER ASSY.
  • 15
    2200753 SCREW KIT
    SCREW KIT
  • 16
    3082939 NUT
    NUT
  • 17
    3080077 WASHER SPRING
    WASHER SPRING
  • 18
    3085521 SWITCH, MAGNETIC (INCL. 16, 17)
    SWITCH, MAGNETIC (INCL. 16, 17)
