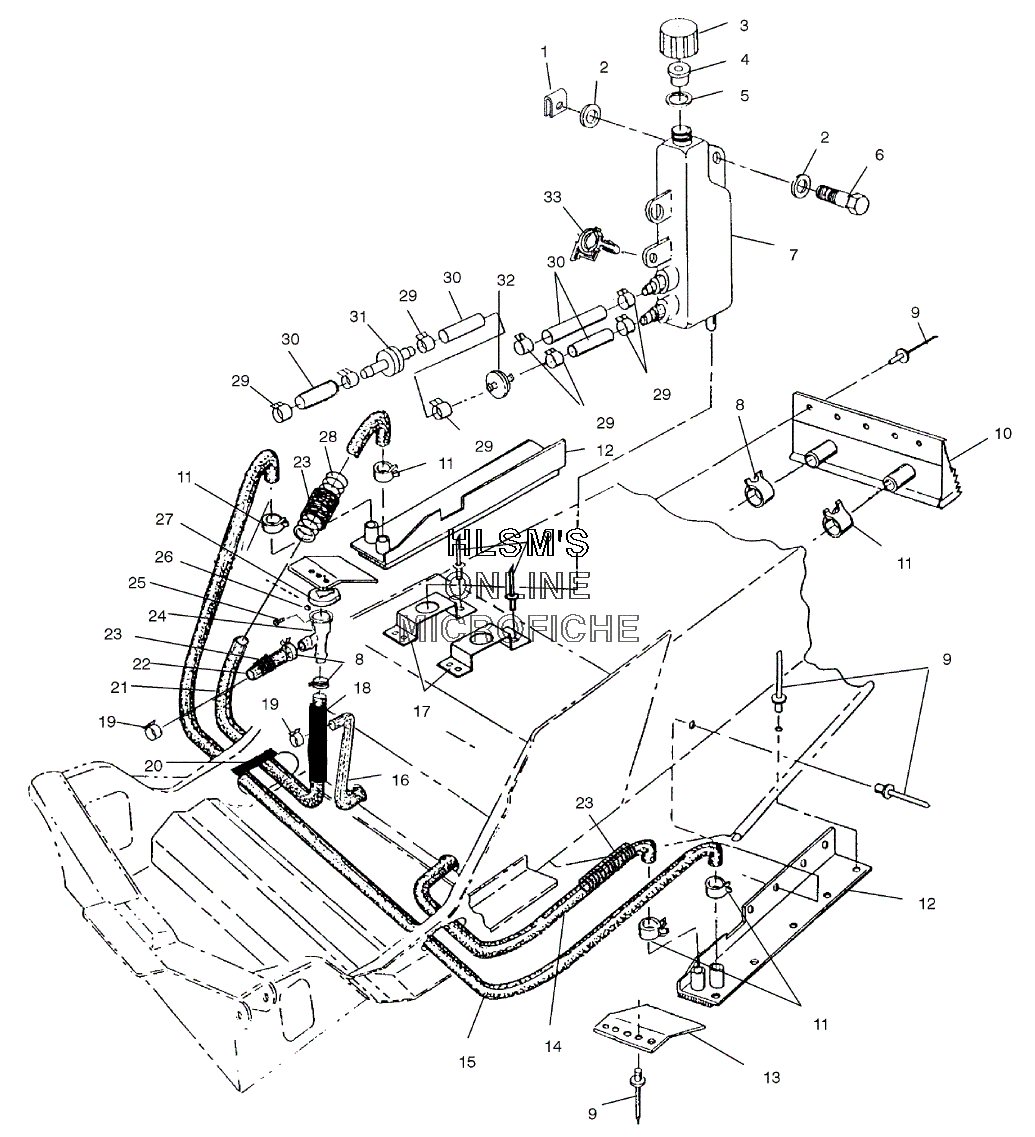

COOLING SYSTEM для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17670096 NUTNUT
-
27558302 WASHER, WROUGHTWASHER, WROUGHT
-
35430743 CAP, OVERFLOWCAP, OVERFLOW
-
45431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
55810279 GASKETGASKET
-
67512276 BOLTBOLT
-
75431733 BOTTLE, O'FLOW, W/FITTINGBOTTLE, O'FLOW, W/FITTING
-
87080844 SPRINGBAND, CLAMP (35/12), (BLACK)SPRINGBAND, CLAMP (35/12), (BLACK)
-
97661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
102511225 EXCHANGER WELD, CTR.EXCHANGER WELD, CTR.
-
117080841 SPRINGBAND, CLAMP (27/12, GREEN 1)SPRINGBAND, CLAMP (27/12, GREEN 1)
-
121240020 COOLING WELD, (LEFT SIDE)COOLING WELD, (LEFT SIDE)
-
121240021 COOLING WELD, (RIGHT SIDE)COOLING WELD, (RIGHT SIDE)
-
135222863 GUARD, COOL.EXT.GUARD, COOL.EXT.
-
145411114 HOSE, (LEFT SIDE/CTR.)HOSE, (LEFT SIDE/CTR.)
-
155410557 HOSE, CROSSOVERHOSE, CROSSOVER
-
165410743 HOSE, PUMP/CTR.EXT.HOSE, PUMP/CTR.EXT.
-
175241334 BRACKET, OILTANK, COINEDBRACKET, OILTANK, COINED
-
185411396 TUBING, CONVOL, (8''X1'')TUBING, CONVOL, (8''X1'')
-
197080842 SPRINGBAND, CLAMP (29/12), (BLACK)SPRINGBAND, CLAMP (29/12), (BLACK)
-
205521131 TRIM, EDGE, (6FT, BLACK)TRIM, EDGE, (6FT, BLACK)
-
215411011 HOSE, (RIGHT), FILLER OUT, EXTRUSIONHOSE, (RIGHT), FILLER OUT, EXTRUSION
-
225411010 HOSE, ENG.OUT/FILLERHOSE, ENG.OUT/FILLER
-
235521242 TUBING, CONVOL, (1''X2.5'')TUBING, CONVOL, (1''X2.5'')
-
245433364 FILLER, REMOTE COOLANTFILLER, REMOTE COOLANT
-
257517298 SCREWSCREW
-
267542122 NUT, LOCKNUT, LOCK
-
272511256 CAP, PRESS. (19, 21 LB.)CAP, PRESS. (19, 21 LB.)
-
287041079 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
-
297080307 CLAMPCLAMP
-
308450003-1525 FUEL LINE, (1/4 ID 1525 CM.)FUEL LINE, (1/4 ID 1525 CM.)
-
317052038 VALVE, CHECKVALVE, CHECK
-
322530024 FILTER, COOLANT, LGE.FILTER, COOLANT, LGE.
-
334020139 CLIP, PLASTICCLIP, PLASTIC
