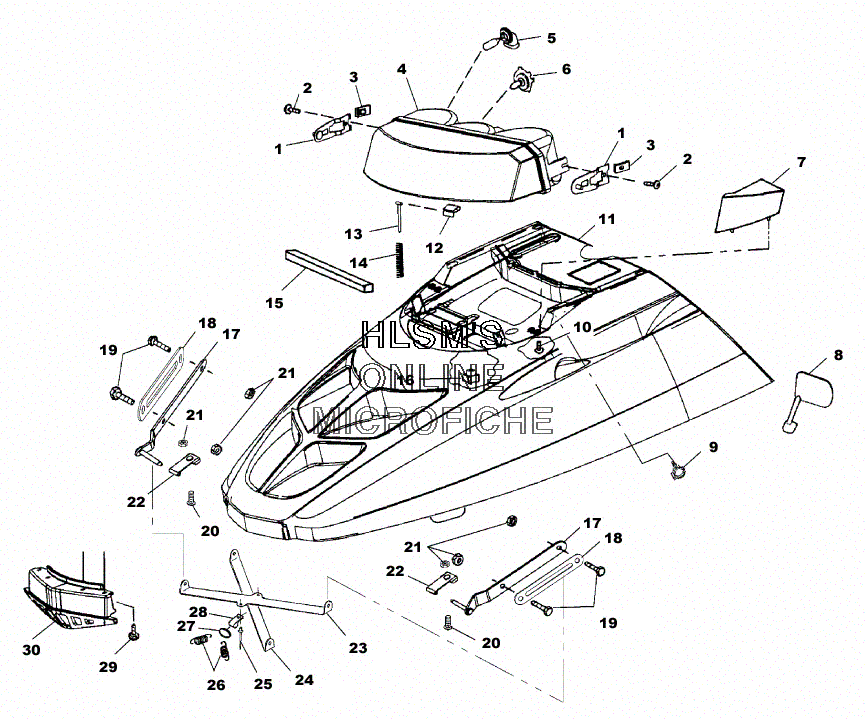

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1011944-067 MOUNT, WELD, H/L
    MOUNT, WELD, H/L
  • 2
    7515107 BOLT
    BOLT
  • 3
    7670057 NUT, SPEED
    NUT, SPEED
  • 4
    2431008 H/L ASSY., 3, BULB (INCL. BULBS)
    H/L ASSY., 3, BULB (INCL. BULBS)
  • 5
    4030048 BULB, HI, BEAM
    BULB, HI, BEAM
  • 6
    2870448 BULB, QUARTZ.H/L, INDY
    BULB, QUARTZ.H/L, INDY
  • 7
    5431855 LENS, (LEFT), CLR. REFLECTOR
    LENS, (LEFT), CLR. REFLECTOR
  • 7
    5431856 LENS, (RIGHT), CLR. REFLECTOR
    LENS, (RIGHT), CLR. REFLECTOR
  • 8
    2871531 MIRRORS, DELUXE, PR (INCL. HARDWARE)
    MIRRORS, DELUXE, PR (INCL. HARDWARE)
  • 8
    7512040 SCREW
    SCREW
  • 8
    7541901 NUT, WELL
    NUT, WELL
  • 9
    7670109 CLIP, ROUTING
    CLIP, ROUTING
  • 9
    4020149 CLIP, ROSEBUD
    CLIP, ROSEBUD
  • 10
    7512048 SCREW
    SCREW
  • 11
    2632228-259 HOOD ASSY., (HYB, SVC, CNDY APPL RED) (INCL. FOAM/FOIL)
    HOOD ASSY., (HYB, SVC, CNDY APPL RED) (INCL. FOAM/FOIL)
  • 12
    7670040 CLIP, U TYPE
    CLIP, U TYPE
  • 13
    7517746 BOLT, TEE ADJUSTER, (2.25)
    BOLT, TEE ADJUSTER, (2.25)
  • 14
    7041308 SPRING, H/L.ADJ.
    SPRING, H/L.ADJ.
  • 15
    5811687 FOAM, HEADLIGHT SEAL W/PSA
    FOAM, HEADLIGHT SEAL W/PSA
  • 16
    7080887 KNOB, HEADLIGHT, ADJUST, LOCKING B
    KNOB, HEADLIGHT, ADJUST, LOCKING B
  • 17
    1012750 HINGE, (LEFT, UPPER)
    HINGE, (LEFT, UPPER)
  • 17
    1012751 HINGE, (RIGHT, UPPER)
    HINGE, (RIGHT, UPPER)
  • 18
    5242948 PLATE, BOLT
    PLATE, BOLT
  • 19
    7512247 BOLT
    BOLT
  • 20
    7512193 BOLT
    BOLT
  • 21
    7542122 NUT, LOCK
    NUT, LOCK
  • 22
    5244395 PLATE, HINGE, LOWER
    PLATE, HINGE, LOWER
  • 23
    5242945 BRACE, HOOD, UPPER
    BRACE, HOOD, UPPER
  • 24
    5242946 BRACE, HOOD, LOWER
    BRACE, HOOD, LOWER
  • 25
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 26
    7041732 SPRING, EXT.
    SPRING, EXT.
  • 27
    7041760 SPRING, ATTACHMENT RING
    SPRING, ATTACHMENT RING
  • 28
    7080372 CLAMP, RETAINER
    CLAMP, RETAINER
  • 29
    7517441 SCREW
    SCREW
  • 30
    5432931 SCREEN, FRONT, HYB
    SCREEN, FRONT, HYB
