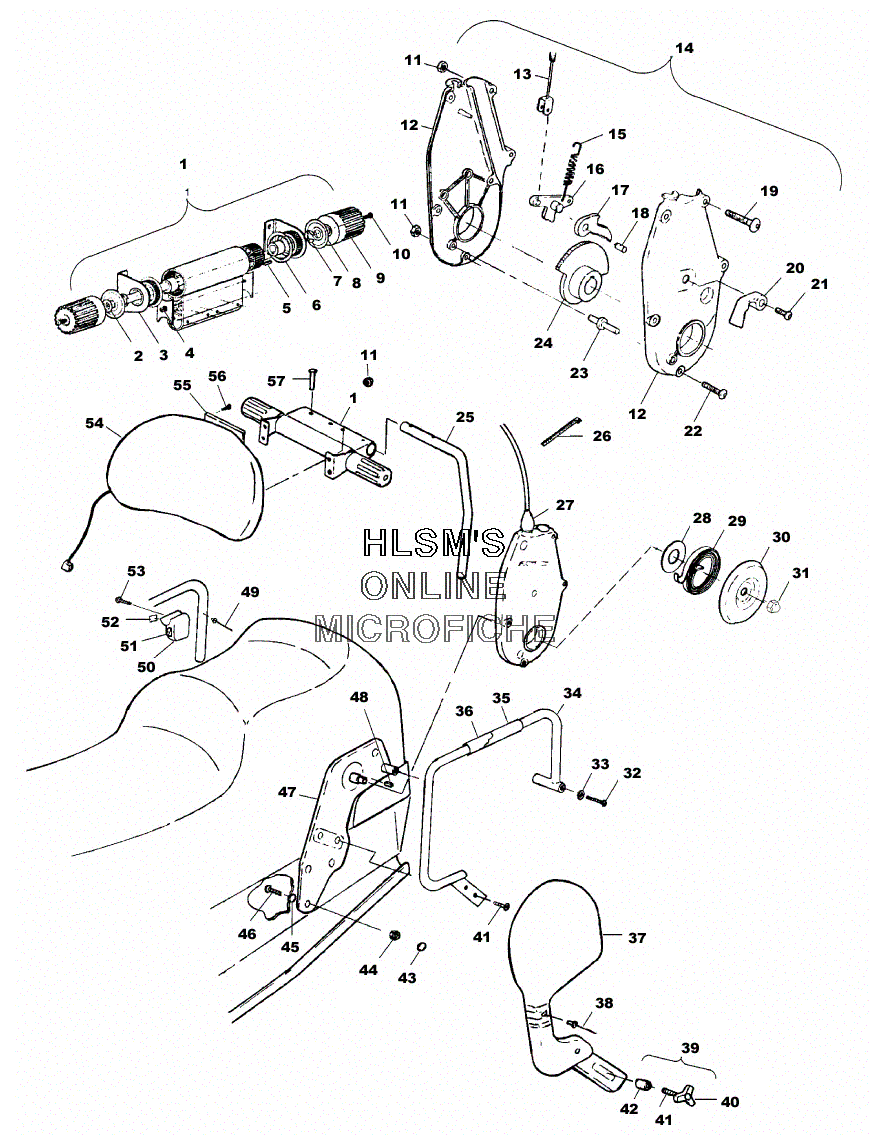

BACKREST ASSEMBLY для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска`
-
№АртикулНазвание
-
11012534 ADJ. ASSY., B'REST CUSHION (INCL. 2, 5, 7, 8, 10)ADJ. ASSY., B'REST CUSHION (INCL. 2, 5, 7, 8, 10)
-
27571635 WASHER, WAVEWASHER, WAVE
-
31012535 BRACKET, MOUNTINGBRACKET, MOUNTING
-
47511866 SCREWSCREW
-
57721118 KEY, SQUAREKEY, SQUARE
-
65131207 ROTORROTOR
-
77710901 E-RINGE-RING
-
87571634 WASHERWASHER
-
95432112 KNOB, ADJ.KNOB, ADJ.
-
107512087 SCREWSCREW
-
117542122 NUT, LOCKNUT, LOCK
-
125131211 HSG, (LEFT), (ADJ. B'REST)HSG, (LEFT), (ADJ. B'REST)
-
125131212 HSG, (RIGHT) (ADJ.B'REST)HSG, (RIGHT) (ADJ.B'REST)
-
137080582 CABLE ASSY., ACTUATORCABLE ASSY., ACTUATOR
-
141013409 BACKREST, ASSY., ADJUSTER (INCL. 11, 24)BACKREST, ASSY., ADJUSTER (INCL. 11, 24)
-
157041411 SPRING, LOCKINGSPRING, LOCKING
-
161013410 LOCKING, PAWL MASTER, ASSY., (LEFT), PM (INCL. PIN AND RETAINING RING)LOCKING, PAWL MASTER, ASSY., (LEFT), PM (INCL. PIN AND RETAINING RING)
-
161013411 LOCKING, PAWL, ASSY., (RIGHT), PM (INCL. PIN AND RETAINING RING)LOCKING, PAWL, ASSY., (RIGHT), PM (INCL. PIN AND RETAINING RING)
-
1752145042 LEVERLEVER
-
185020806 PIN, PIVOTPIN, PIVOT
-
197515171 BOLTBOLT
-
205631126-067 LEVER, LOCKING, (BLACK)LEVER, LOCKING, (BLACK)
-
217516915 SCREWSCREW
-
227515170 BOLTBOLT
-
235020822 STUD, LIMITERSTUD, LIMITER
-
245245039 GEAR, STATIONARY, PMGEAR, STATIONARY, PM
-
255224761-067 TUBE, B'REST MT, (BLACK)TUBE, B'REST MT, (BLACK)
-
267080138 STRAP PANDUITSTRAP PANDUIT
-
275432259 COVER, CABLE, (BLACK)COVER, CABLE, (BLACK)
-
287555926 WASHER, THRUSTWASHER, THRUST
-
297041412 SPRING, TORSION, PRELOADSPRING, TORSION, PRELOAD
-
305241935-067 COVER, SPRING, 1/2'' ID, (BLACK)COVER, SPRING, 1/2'' ID, (BLACK)
-
317547015 NUTNUT
-
327512307 SCREWSCREW
-
337555734 WASHERWASHER
-
341012657-067 HANDLE, GRAB, (LEFT), (BLACK)HANDLE, GRAB, (LEFT), (BLACK)
-
341012658-067 HANDLE, GRAB, (RIGHT), (BLACK)HANDLE, GRAB, (RIGHT), (BLACK)
-
352460721 GRIP, HEATED PASS.GRIP, HEATED PASS.
-
365811725 TAPE, FOAM, (.120X2.75X4, 3M 4959)TAPE, FOAM, (.120X2.75X4, 3M 4959)
-
375432078 DEFLECTOR, AIR, (LEFT)DEFLECTOR, AIR, (LEFT)
-
375432079 DEFLECTOR, AIR, (RIGHT)DEFLECTOR, AIR, (RIGHT)
-
387621341 RIVETRIVET
-
391012385 KNOB, GRAB HANDLE (INCL. 40, 42)KNOB, GRAB HANDLE (INCL. 40, 42)
-
405630386-067 KNOB, BACKRESTKNOB, BACKREST
-
417515339 BOLTBOLT
-
425432123 SPACER, ADJ.KNOBSPACER, ADJ.KNOB
-
437080592 CAPLUG, (3/4'')CAPLUG, (3/4'')
-
447542324 NUTNUT
-
457547030 PALNUTPALNUT
-
467512377 BOLTBOLT
-
471012539-067 MAINFRAME, (LEFT), (BLACK)MAINFRAME, (LEFT), (BLACK)
-
471012540-067 MAINFRAME, (RIGHT), (BLACK)MAINFRAME, (RIGHT), (BLACK)
-
487721125 KEY, HI PROKEY, HI PRO
-
497621229 RIVETRIVET
-
505432120 HOUSING, SWITCHHOUSING, SWITCH
-
512460537 HARNESS, PASS. GRP. HTR. SW.HARNESS, PASS. GRP. HTR. SW.
-
527075418 DECAL, HIGH/LOW/OFFDECAL, HIGH/LOW/OFF
-
537527815 SCREW, TAPPINGSCREW, TAPPING
-
542682581 CUSHION, BACKREST, W/LIGHTCUSHION, BACKREST, W/LIGHT
-
542682584 BACKREST COVERING ASSY., W/LAMPBACKREST COVERING ASSY., W/LAMP
-
552432040 TAILLIGHT ASSY., B'RESTTAILLIGHT ASSY., B'REST
-
554030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
567512054 SCREWSCREW
-
577661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
