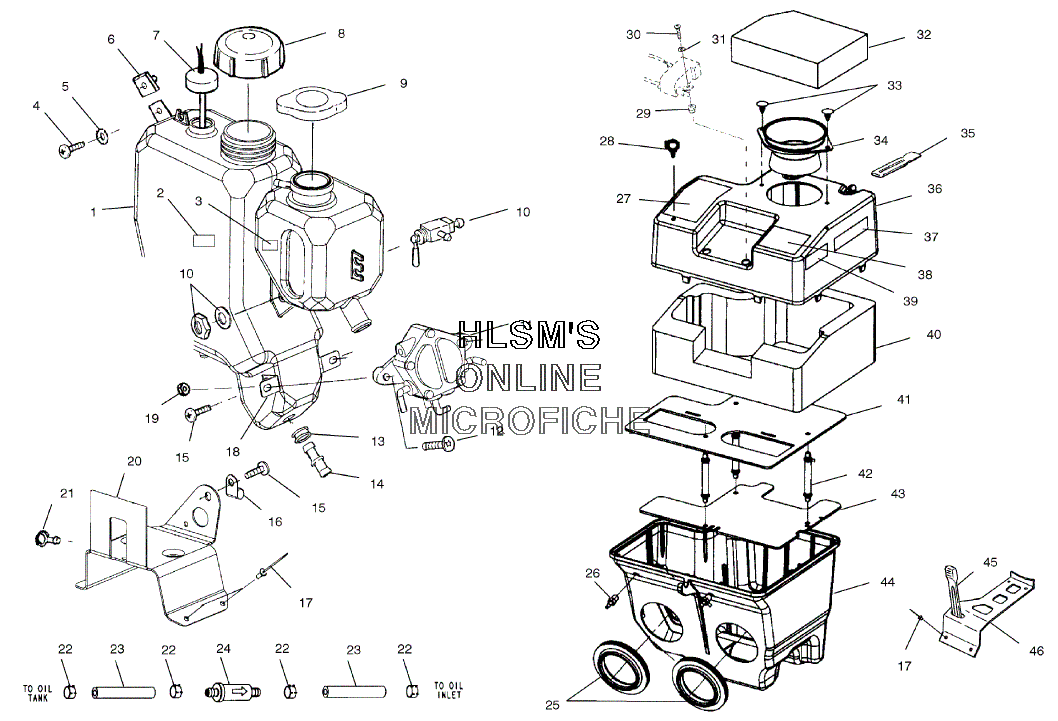

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска`
-
№АртикулНазвание
-
15433344 OIL TANK ASSY., W/FOIL LIQOIL TANK ASSY., W/FOIL LIQ
-
27077442 DECAL, FUEL SHUT OFFDECAL, FUEL SHUT OFF
-
37078147 DECAL SURGE TANK ''FULL COLD''DECAL SURGE TANK ''FULL COLD''
-
47512276 BOLTBOLT
-
57558302 WASHER, WROUGHTWASHER, WROUGHT
-
67670096 NUTNUT
-
74110134 SENSOR, OIL LEVELSENSOR, OIL LEVEL
-
82511287 CAP, OIL, VENTED (CUSTOM COLOR)CAP, OIL, VENTED (CUSTOM COLOR)
-
92511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
127517455 SCREWSCREW
-
137052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
147052207 FTTNG, STRAIGHT PRESS INFTTNG, STRAIGHT PRESS IN
-
157517615 SCREWSCREW
-
167080367 CLAMP, CABLECLAMP, CABLE
-
177661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
185242680 BRACKET, FUEL PUMP MOUNT ZBRACKET, FUEL PUMP MOUNT Z
-
197542122 NUT, LOCKNUT, LOCK
-
205243636 BRACKET, OIL/COOLANT TANKBRACKET, OIL/COOLANT TANK
-
214020139 CLIP, PLASTICCLIP, PLASTIC
-
227080307 CLAMPCLAMP
-
238450003-1525 FUEL LINE (1/4 ID 1525 CM.) (OPT)FUEL LINE (1/4 ID 1525 CM.) (OPT)
-
242530009 FILTER, IN LINEFILTER, IN LINE
-
255411109 BOOT, CARBURETORBOOT, CARBURETOR
-
267052127 FITTING, HOSEFITTING, HOSE
-
277075359 DECAL, COOL SYSTEMDECAL, COOL SYSTEM
-
287670102 CLIP, SILENCERCLIP, SILENCER
-
297541923 NUT, WELLNUT, WELL
-
307512279 SCREWSCREW
-
317552604 WASHERWASHER
-
322632132 DUCT, AIR INLET ASSY.DUCT, AIR INLET ASSY.
-
337670088 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
345433436 DUCT, AIR INLETDUCT, AIR INLET
-
355411075 RETAINER, TABRETAINER, TAB
-
365433420 SILENCER, INTAKE (TOP)SILENCER, INTAKE (TOP)
-
377073820 DECAL, ADJUSTER DRIVEN CLUTCHDECAL, ADJUSTER DRIVEN CLUTCH
-
387075351 DECAL, CAUTION AIRBOXDECAL, CAUTION AIRBOX
-
397073426 DECAL, GREASINGDECAL, GREASING
-
405811820 FOAM, AIRBOX INTAKE (TOP)FOAM, AIRBOX INTAKE (TOP)
-
415811824 PLATE SILENCER, INTAKEPLATE SILENCER, INTAKE
-
425433437 CONNECTOR, PLATECONNECTOR, PLATE
-
435811825 PLATE SILENCER INTAKE (LOWER)PLATE SILENCER INTAKE (LOWER)
-
445433454 SILENCER, INTAKESILENCER, INTAKE
-
455411129 STRAP, TIE DOWNSTRAP, TIE DOWN
-
465241691 BRACKET, SILENCER MOUNT (LOWER)BRACKET, SILENCER MOUNT (LOWER)
