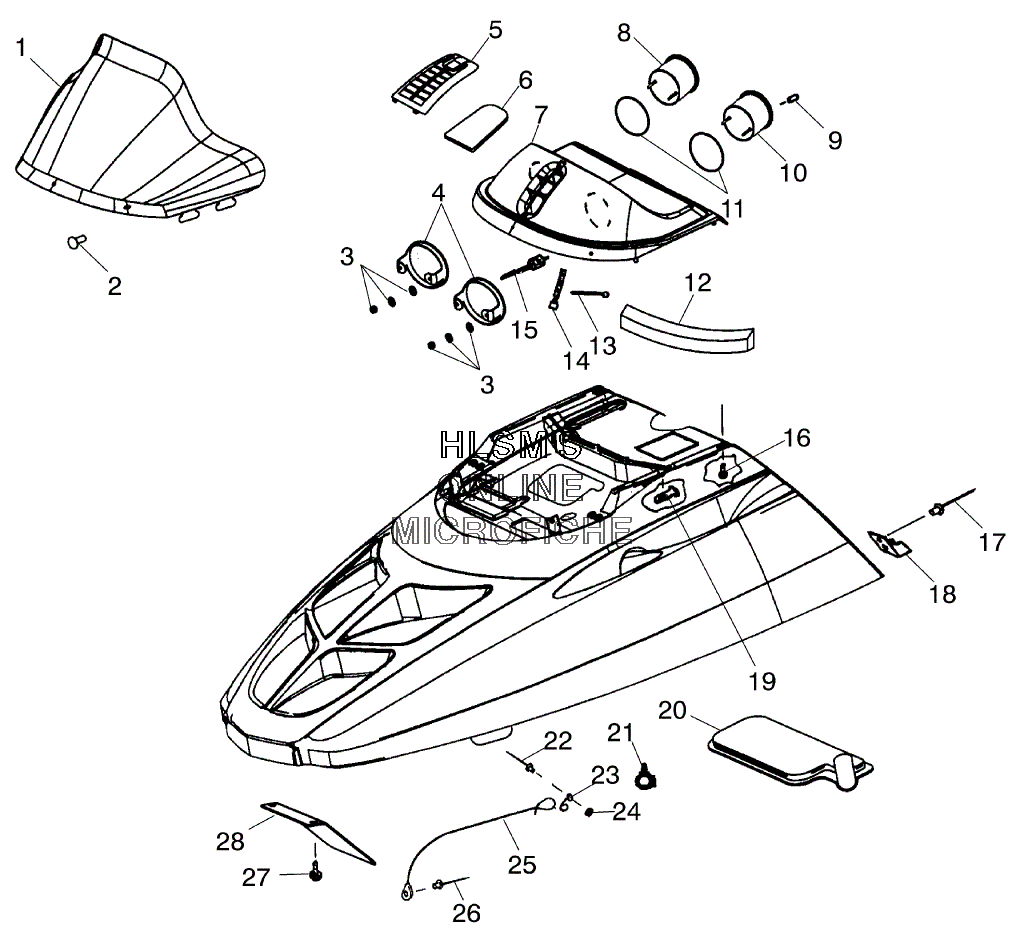

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    5433165 WINDSHIELD GEN 2 (14'' SMOKE)
    WINDSHIELD GEN 2 (14'' SMOKE)
  • 2
    7621509 RIVET, PLASTI LOC.
    RIVET, PLASTI LOC.
  • 3
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 3
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 3
    3280158 NUT
    NUT
  • 4
    3280210 BRACKET, TACH/SPEEDOMETER (5'')
    BRACKET, TACH/SPEEDOMETER (5'')
  • 5
    5433419 COVER INTAKE, INSTRUMENT HOUSE
    COVER INTAKE, INSTRUMENT HOUSE
  • 6
    5811821 FOAM, PREFILTER
    FOAM, PREFILTER
  • 7
    2632112 INSTRUMENT ASSY., HOUSING (45TH ANIVERSARY) (INCL. WARNING DECALS)
    INSTRUMENT ASSY., HOUSING (45TH ANIVERSARY) (INCL. WARNING DECALS)
  • 8
    3280308 TACH, 5'', 6 PULSE W/FUEL LT
    TACH, 5'', 6 PULSE W/FUEL LT
  • 8
    4030015 BULB TAILLIGHT/TACH/SPEEDOMETER
    BULB TAILLIGHT/TACH/SPEEDOMETER
  • 9
    3280186 KNOB, TRIP ODOMETER (LEFT THREADED)
    KNOB, TRIP ODOMETER (LEFT THREADED)
  • 10
    3280304 SPEEDO ASSY. (5'') (120MPH) (90 DEG)
    SPEEDO ASSY. (5'') (120MPH) (90 DEG)
  • 10
    4030015 BULB TAILLIGHT/TACH/SPEEDOMETER
    BULB TAILLIGHT/TACH/SPEEDOMETER
  • 11
    3280209 CUSHION, TACH/SPEEDOMETER RUBBER
    CUSHION, TACH/SPEEDOMETER RUBBER
  • 12
    5811822 FOAM, HEADLIGHT/POD SEAL SRP
    FOAM, HEADLIGHT/POD SEAL SRP
  • 13
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 14
    2460732 HARNESS HEADLIGHT
    HARNESS HEADLIGHT
  • 15
    3280341 CABLE, SPEEDOMETER (90 IN)
    CABLE, SPEEDOMETER (90 IN)
  • 16
    7517441 SCREW
    SCREW
  • 17
    7621334 RIVET
    RIVET
  • 18
    5430733 CUP, HOOD LATCH
    CUP, HOOD LATCH
  • 19
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 20
    5433723 COVER, ACCESS, HEADLIGHT
    COVER, ACCESS, HEADLIGHT
  • 21
    7080886 CLIP (ROSEBUD/GRAY)
    CLIP (ROSEBUD/GRAY)
  • 22
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 23
    5242893 CLIP, PIGTAIL
    CLIP, PIGTAIL
  • 24
    7555904 BURR, RIVET
    BURR, RIVET
  • 25
    7080764 CABLE, HOOD
    CABLE, HOOD
  • 26
    7621402 POP RIVET
    POP RIVET
  • 27
    7512068 SCREW
    SCREW
  • 28
    5243393 DEFLECTOR, AIR
    DEFLECTOR, AIR
