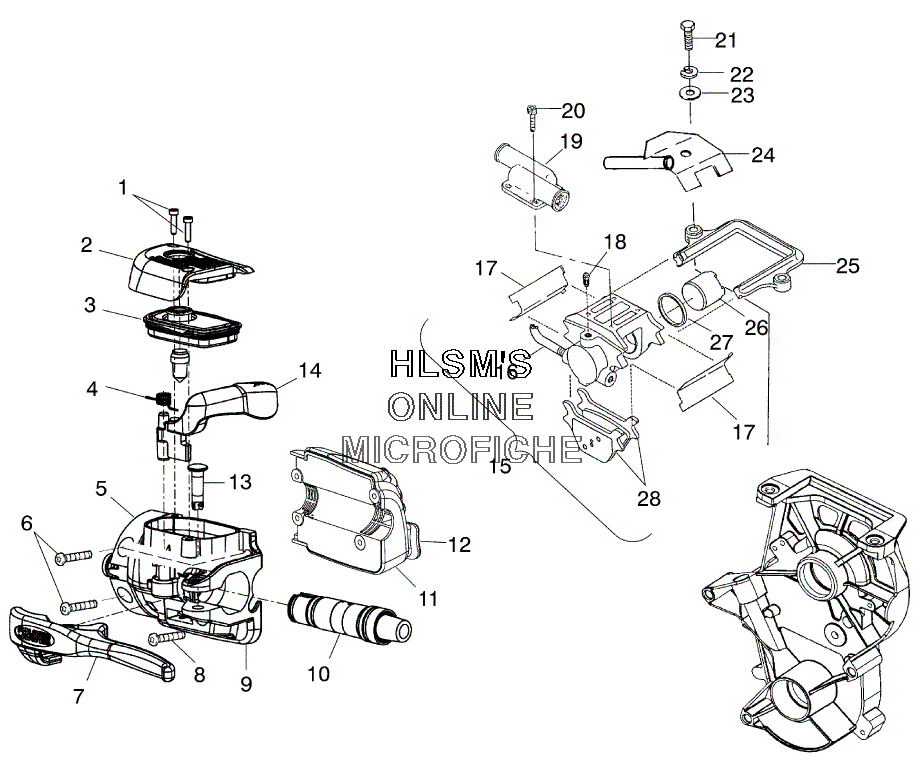

BRAKE ASSEMBLY для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска

№

Артикул

Название
1

2201254 COVER SCREW KIT

COVER SCREW KIT
2

2201255 COVER ASSY. (INCL. 1, 3)

COVER ASSY. (INCL. 1, 3)
4

2201250 PARKING LEVER SPRING KIT

PARKING LEVER SPRING KIT
5

2050087 MASTER CYLINDER ASSY. (INCL. 2, 4, 7, 9, 10, 13)

MASTER CYLINDER ASSY. (INCL. 2, 4, 7, 9, 10, 13)
6

7517441 SCREW

SCREW
7

2201569 LEVER KIT, 3 NOTCH PIN RING

LEVER KIT, 3 NOTCH PIN RING
8

7517566 SCREW

SCREW
9

2201249 MASTER CYLINDER ASSY.

MASTER CYLINDER ASSY.
9

4010157 SWITCH, BRAKE LIGHT

SWITCH, BRAKE LIGHT
10

2201248 CARTRIDGE SUB ASSY. (5/8'')

CARTRIDGE SUB ASSY. (5/8'')
11

2010167 CONTROL ASSY., BASIC (LEFT)

CONTROL ASSY., BASIC (LEFT)
12

5433291 BUTTON, SWITCH (HI/LO)

BUTTON, SWITCH (HI/LO)
13

2201252 PIVOT PIN KIT, ALUMINUM W/SNAP RING

PIVOT PIN KIT, ALUMINUM W/SNAP RING
14

2201251 PARKLEVER AND SPRING KIT (INCL. 4)

PARKLEVER AND SPRING KIT (INCL. 4)
15

1910344 BRAKE CALIPER (INCL. 26, 27, 28)

BRAKE CALIPER (INCL. 26, 27, 28)
16

1910313 LINE BRAKE, HYBRID

LINE BRAKE, HYBRID
17

2200467 CLIP SPRING KIT (QTY. 2)

CLIP SPRING KIT (QTY. 2)
18

1930735 INLET KIT

INLET KIT
19

1930728 COOLER, WATER BRAKE

COOLER, WATER BRAKE
19

2201024 GASKET, BRAKE COOLER

GASKET, BRAKE COOLER
20

1930729 SCREW SET (PKG. OF 4)

SCREW SET (PKG. OF 4)
21

7515521 BOLT

BOLT
22

7552603 WASHER, SPRING LOCK

WASHER, SPRING LOCK
23

7555806 WASHER, FLAT

WASHER, FLAT
24

1012581 GUIDE, ROPE CHAINCASE Z

GUIDE, ROPE CHAINCASE Z
25

1930733 CALIPER BRACKET KIT

CALIPER BRACKET KIT
26

1930734 PISTON SEAL KIT (INCL. 27)

PISTON SEAL KIT (INCL. 27)
27

2200466 SEAL

SEAL
28

2201429 BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 17)

BRAKE KIT, PAD TYPE 81 (SMALL) (INCL. 17)
28

2201430 BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 17)

BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 17)
