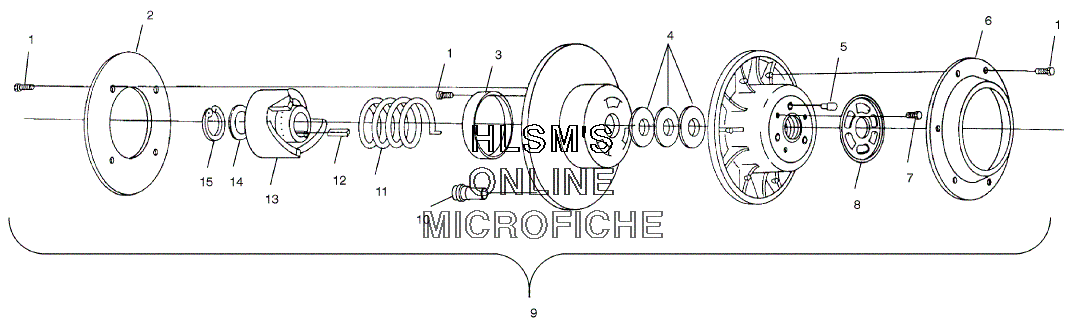

CLUTCH - DRIVEN для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7512048 SCREW
    SCREW
  • 2
    5210749 PLATE
    PLATE
  • 3
    3569803 BUSHING, D.U.
    BUSHING, D.U.
  • 4
    7555865 WASHER, DRIVE CLUTCH (.075) (OPT)
    WASHER, DRIVE CLUTCH (.075) (OPT)
  • 4
    7555898 WASHER (.02) (OPT)
    WASHER (.02) (OPT)
  • 4
    7556076 WASHER (.025) (OPT)
    WASHER (.025) (OPT)
  • 4
    7556804 WASHER (.03) (OPT)
    WASHER (.03) (OPT)
  • 5
    5020653 PIN, CLUTCH
    PIN, CLUTCH
  • 6
    5230101 CAP, DRIVEN
    CAP, DRIVEN
  • 7
    7515133 SCREW
    SCREW
  • 8
    5222878 CAM, DRIVEN ADJUSTABLE
    CAM, DRIVEN ADJUSTABLE
  • 9
    1322178 CLUTCH, DRIVEN ASSY. (INCL. 1 15)
    CLUTCH, DRIVEN ASSY. (INCL. 1 15)
  • 10
    5430466 BUTTON, RAMP
    BUTTON, RAMP
  • 11
    7041499 SPRING, CLUTCH (SILVER)
    SPRING, CLUTCH (SILVER)
  • 12
    7721103 KEY SQUARE
    KEY SQUARE
  • 13
    5130717 RAMP, DRIVEN (36 DEG)
    RAMP, DRIVEN (36 DEG)
  • 14
    7556804 WASHER
    WASHER
  • 15
    7714804 RING, RETAINING
    RING, RETAINING
