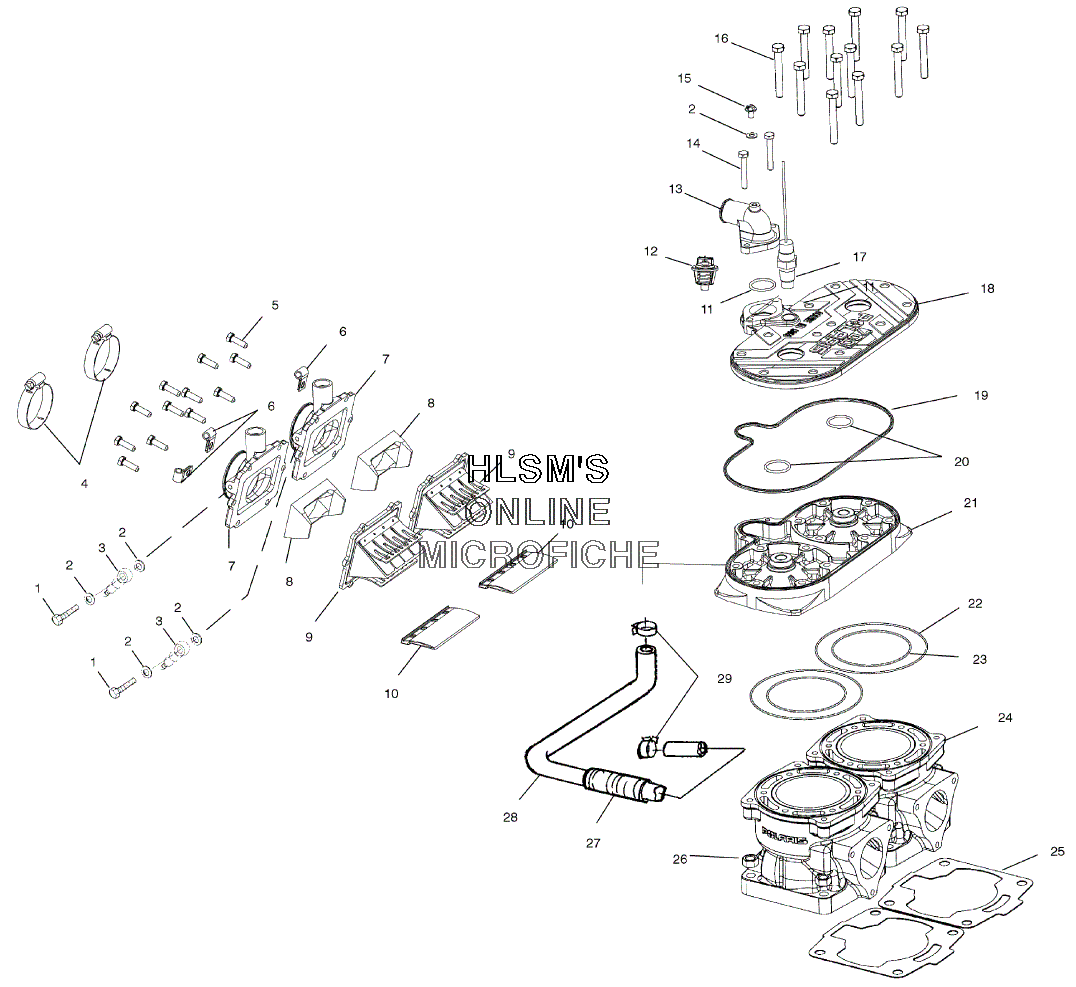

CYLINDER ASSEMBLY для Polaris 700 XC SP (S00SP7AS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517578 SCREW
    SCREW
  • 2
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 3
    7052160 VALVE, CHECK OIL PUMP
    VALVE, CHECK OIL PUMP
  • 4
    7080681 CLAMP, HOSE
    CLAMP, HOSE
  • 5
    7517398 SCREW
    SCREW
  • 6
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    1253259 ADAPTOR, CARBURETOR
    ADAPTOR, CARBURETOR
  • 8
    5433151 STUFFER, REED BLOCK
    STUFFER, REED BLOCK
  • 9
    1201831 VALVE, REED
    VALVE, REED
  • 10
    5411251 STUFFER
    STUFFER
  • 11
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 12
    7052224 THERMOSTAT (60ШC)
    THERMOSTAT (60ШC)
  • 13
    5630910 COVER, THERMOSTAT (M6 BLEED LG)
    COVER, THERMOSTAT (M6 BLEED LG)
  • 14
    7516818 SCREW
    SCREW
  • 15
    7517266 SCREW
    SCREW
  • 16
    7517534 SCREW
    SCREW
  • 17
    4110254 SENSOR, TEMP (93 DEG.C)
    SENSOR, TEMP (93 DEG.C)
  • 18
    5631009-093 COVER HEAD (81MM) T/BYPASS (FIRE RED)
    COVER HEAD (81MM) T/BYPASS (FIRE RED)
  • 19
    5411294 SEAL, RUBBER HEAD
    SEAL, RUBBER HEAD
  • 20
    5410917 O-RING
    O-RING
  • 21
    3021022 HEAD, CYLINDER BY PASS (81MM)
    HEAD, CYLINDER BY PASS (81MM)
  • 22
    5410931 O-RING
    O-RING
  • 23
    5410932 O-RING
    O-RING
  • 24
    5131824 CYLINDER (81MM)
    CYLINDER (81MM)
  • 25
    5811538 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 26
    7547013 NUT
    NUT
  • 27
    5521398-96 CONDUIT, FLEX (.75''ID) (OPT)
    CONDUIT, FLEX (.75''ID) (OPT)
  • 28
    5411536 HOSE, BYPASS
    HOSE, BYPASS
  • 29
    7080810 CLAMP 3 TONG (.810 .970)
    CLAMP 3 TONG (.810 .970)
