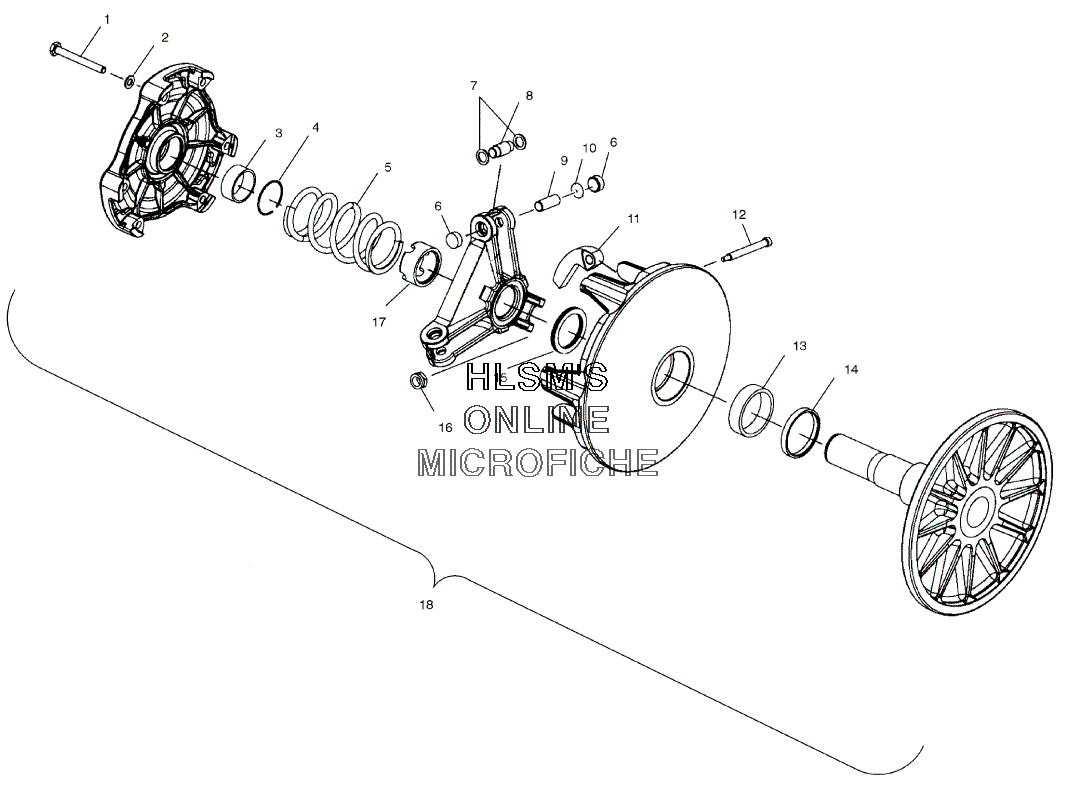

CLUTCH - DRIVE для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041816 SPRING (ALMOND/BLACK)SPRING (ALMOND/BLACK)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHER,WASHER,
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95020422 PIN, ROLLERPIN, ROLLER
-
102200387 SHIM, DRIVE CLUTCH, KITSHIM, DRIVE CLUTCH, KIT
-
111321529 WT/BUSH.ASSY. (10M)WT/BUSH.ASSY. (10M)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155210754 SPACER (.050MM)SPACER (.050MM)
-
155210753 SPACER (.032MM)SPACER (.032MM)
-
155242981 SPACER (.025MM)SPACER (.025MM)
-
155210752 SPACER (.020MM)SPACER (.020MM)
-
167541906 NUT FLEX LOCNUT FLEX LOC
-
175020425 NUT, JAMNUT, JAM
-
181321792 CLUTCH, BASIC #101 (DRIVE) (INCL. ALL LESS 5, 11)CLUTCH, BASIC #101 (DRIVE) (INCL. ALL LESS 5, 11)
