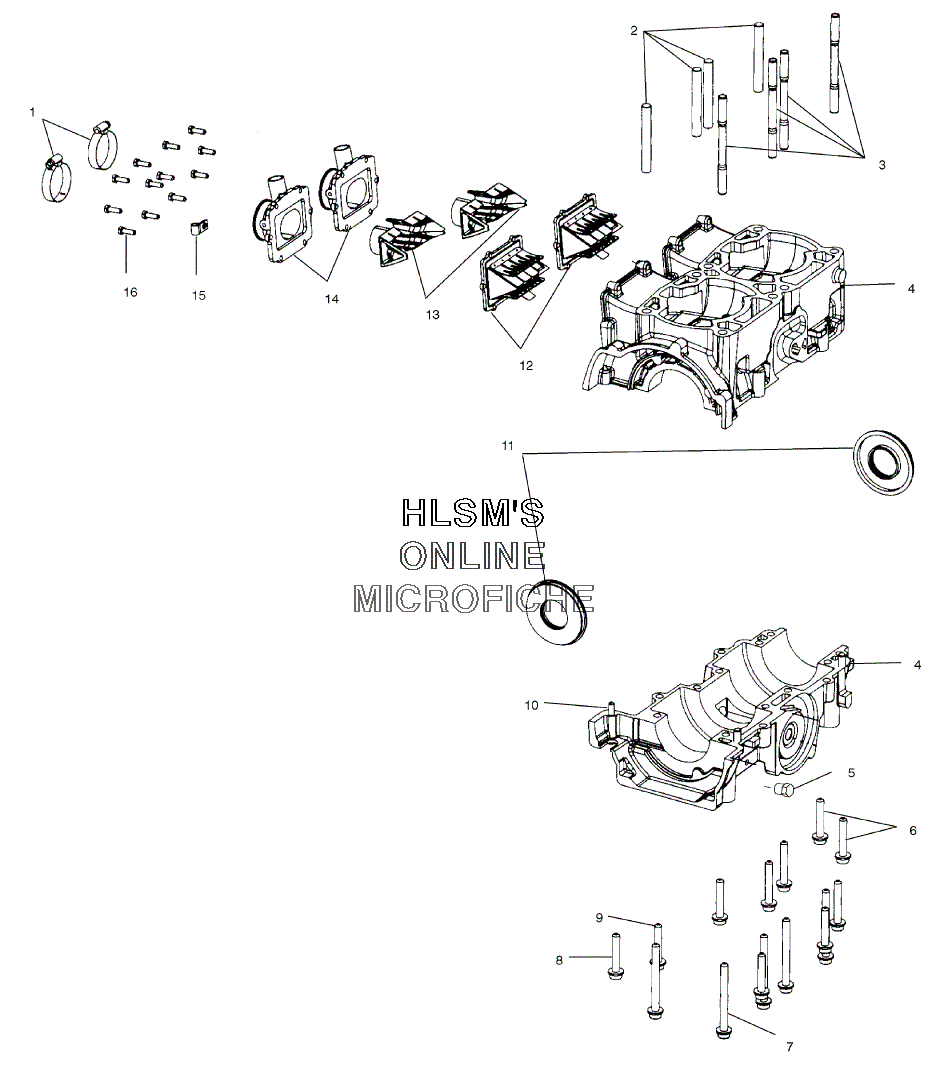

CRANKCASE ASSEMBLY для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS,
    CLAMP, HOSE, SS,
  • 2
    5132196 STUD, CYLINDER (81MM)
    STUD, CYLINDER (81MM)
  • 3
    5132197 STUD, CYLINDER (118MM)
    STUD, CYLINDER (118MM)
  • 4
    2201507 CRANKCASE, KIT (INCL. 2, 3, 5, 10)
    CRANKCASE, KIT (INCL. 2, 3, 5, 10)
  • 5
    7051529 PLUG
    PLUG
  • 6
    7517448 SCREW (M8X1.25X55)
    SCREW (M8X1.25X55)
  • 7
    7517244 SCREW
    SCREW
  • 8
    7517528 SCREW, SS.
    SCREW, SS.
  • 9
    7517214 SCREW
    SCREW
  • 10
    7663001 PIN, DOWEL
    PIN, DOWEL
  • 11
    5411394 SEAL, FLANGED
    SEAL, FLANGED
  • 12
    1201916 REED, VALVE ASSY.
    REED, VALVE ASSY.
  • 13
    1202039 STUFFER, REED, TUBE (34MM)
    STUFFER, REED, TUBE (34MM)
  • 14
    1253343 ADAPTER, CARBURETOR (34MM)
    ADAPTER, CARBURETOR (34MM)
  • 15
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    7517398 SCREW
    SCREW
