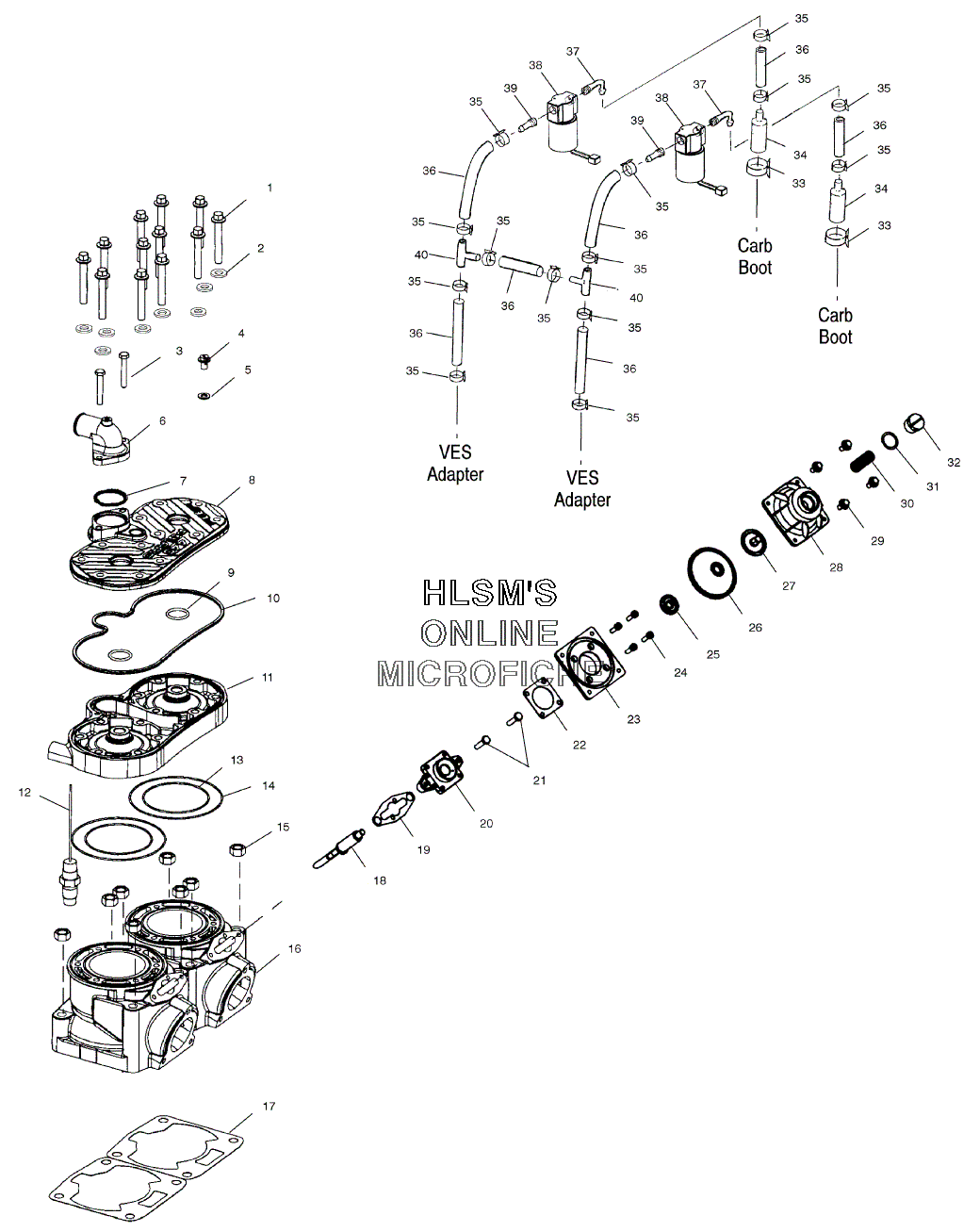

CYLINDER ASSEMBLY для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    7517281 SCREW
    SCREW
  • 2
    7556082 WASHER
    WASHER
  • 3
    7516818 SCREW
    SCREW
  • 4
    7517679 SCREW
    SCREW
  • 5
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 6
    5630992 COVER, THERMOSTAT (M6 BLEED LARGE)
    COVER, THERMOSTAT (M6 BLEED LARGE)
  • 7
    5830113 GASKET, T'STAT. COVER
    GASKET, T'STAT. COVER
  • 8
    5631089-093 COVER, HD, SNO, W/O NPT RD (66MM)
    COVER, HD, SNO, W/O NPT RD (66MM)
  • 9
    5411411 O-RING
    O-RING
  • 10
    5411182 SEAL, HD. COVER, MOLDED
    SEAL, HD. COVER, MOLDED
  • 11
    3021183 HEAD, CYLINDER (66MM)
    HEAD, CYLINDER (66MM)
  • 12
    4010251 SENSOR, THERMISTER
    SENSOR, THERMISTER
  • 13
    5411199 O-RING
    O-RING
  • 14
    5411201 O-RING
    O-RING
  • 15
    7547013 NUT
    NUT
  • 16
    3021121 CYLINDER, W/EV AND RC (66MM)
    CYLINDER, W/EV AND RC (66MM)
  • 17
    5811599 GASKET, CYLINDER BASE (66MM AND 70.5MM)
    GASKET, CYLINDER BASE (66MM AND 70.5MM)
  • 18
    1202077 VALVE, GUILLOTINE, ASSY.
    VALVE, GUILLOTINE, ASSY.
  • 19
    5812087 GASKET, GEN 3.5 EV BASE
    GASKET, GEN 3.5 EV BASE
  • 20
    1201919 HOUSING W/BUSH H.DOWEL, ASSY.
    HOUSING W/BUSH H.DOWEL, ASSY.
  • 21
    7516823 SCREW
    SCREW
  • 22
    5433375 GASKET, HOUSING EV
    GASKET, HOUSING EV
  • 23
    1202037 ADAPTER, ASSY.
    ADAPTER, ASSY.
  • 24
    7517314 SCREW
    SCREW
  • 25
    3086124 WASHER
    WASHER
  • 26
    3086119 BELLOWS, VALVE, EXHAUST
    BELLOWS, VALVE, EXHAUST
  • 27
    3086118 CAP, VALVE EXHAUST
    CAP, VALVE EXHAUST
  • 28
    3086120 COVER, VALVE EXHAUST
    COVER, VALVE EXHAUST
  • 29
    3086125 BOLT, FLANGE
    BOLT, FLANGE
  • 30
    7041786-01 SPRNG, CMP, GEN3.5 EV (RED/WHITE)
    SPRNG, CMP, GEN3.5 EV (RED/WHITE)
  • 31
    3086126 O-RING
    O-RING
  • 32
    3085744 ADJUSTER, SPRING
    ADJUSTER, SPRING
  • 33
    7080810 CLAMP, 3 TONG
    CLAMP, 3 TONG
  • 34
    7052283 FITTING, REDUCER
    FITTING, REDUCER
  • 35
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 36
    8450040-600 FUEL LINE (1/4 ID, 600 CM.)
    FUEL LINE (1/4 ID, 600 CM.)
  • 37
    7052065 FITTING (90 DEGREE)
    FITTING (90 DEGREE)
  • 38
    4010305 CONTROL, VALUE, EV SOLENOID
    CONTROL, VALUE, EV SOLENOID
  • 39
    7052099 FITTING, SURGE TANK
    FITTING, SURGE TANK
  • 40
    7052075 FITTING, TEE
    FITTING, TEE
