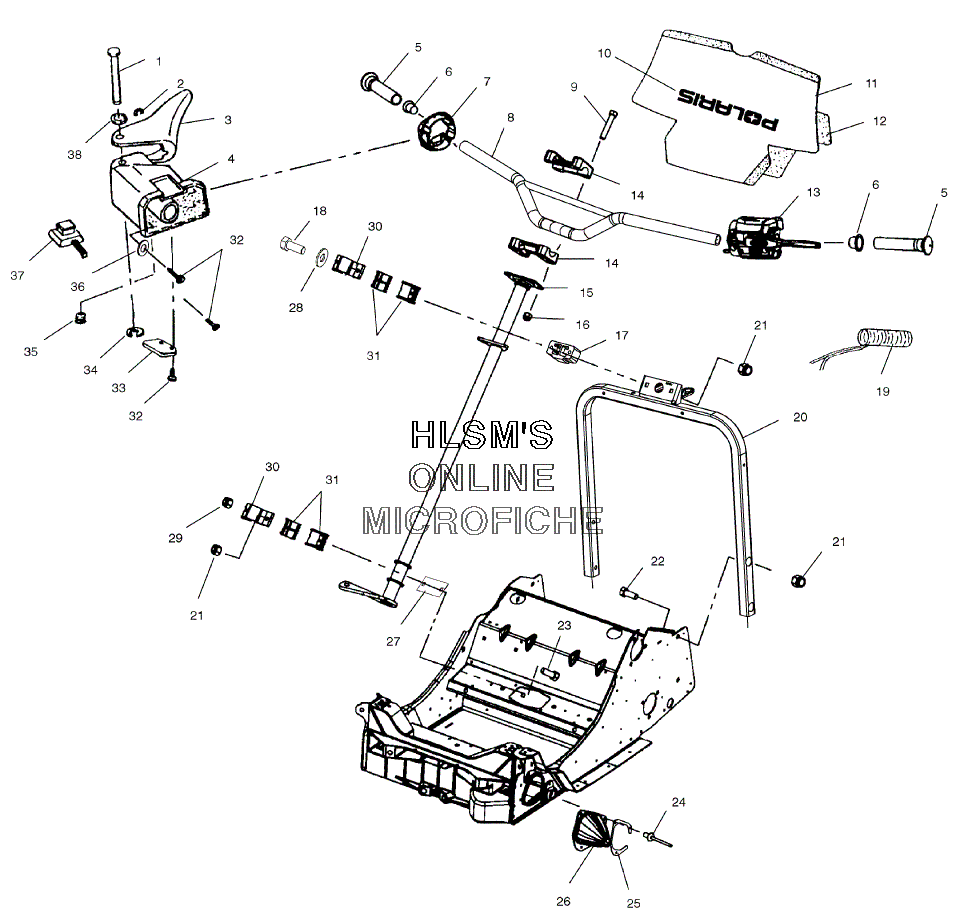

HANDLEBAR ASSEMBLY для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска
-
№АртикулНазвание
-
17661624 PIN, HINGEPIN, HINGE
-
27710503 RETAINING RINGRETAINING RING
-
35432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
32010171 LEVER ASSY., HEATER, HI/LO (35.5MM)LEVER ASSY., HEATER, HI/LO (35.5MM)
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, HANDLEBAR, SNOWGRIP, HANDLEBAR, SNOW
-
65431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
75433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
81820854-067 HANDLE BAR (BLK)HANDLE BAR (BLK)
-
81820854-067 HANDLE BAR (BLK)HANDLE BAR (BLK)
-
97517238 SCREWSCREW
-
107076468 DECAL ''POLARIS'' VINYLDECAL ''POLARIS'' VINYL
-
102200891 DECAL APPLIC., VINYL, KITDECAL APPLIC., VINYL, KIT
-
112682624 COVER, HANDLE, BARCOVER, HANDLE, BAR
-
125812064 PAD, HANDLEBAR, 2 PLYPAD, HANDLEBAR, 2 PLY
-
145630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
151823187-067 WELD, STEERING POST (BLK)WELD, STEERING POST (BLK)
-
167542122 NUT, LOCKNUT, LOCK
-
175132447 SHIM, STEERING POST (UPPER/LOWER)SHIM, STEERING POST (UPPER/LOWER)
-
187515339 BOLTBOLT
-
192460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
201013068-067 WELD, STEERING HOOP (BLK)WELD, STEERING HOOP (BLK)
-
217542343 NUT, NYLOCKNUT, NYLOCK
-
227517428 BOLTBOLT
-
237515383 BOLT, CARRIAGEBOLT, CARRIAGE
-
247661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
255244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
265433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
265433533 BOOT, TIE ROD 9RIGHT)BOOT, TIE ROD 9RIGHT)
-
275132448 SHIM, STEERING POST (LOWER)SHIM, STEERING POST (LOWER)
-
287558402 WASHER STEELWASHER STEEL
-
297080424 FITTING, LUBEFITTING, LUBE
-
305131841 BRACKET STEERING POSTBRACKET STEERING POST
-
315432785 BUSHING, STEERING POSTBUSHING, STEERING POST
-
327511848 SCREW, SEMSSCREW, SEMS
-
335432261 HOLDER, WIREHOLDER, WIRE
-
347710401 'E' RING'E' RING
-
357512465 SCREWSCREW
-
367555727 RIVET BURRRIVET BURR
-
374110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
-
387555730 WASHERWASHER
