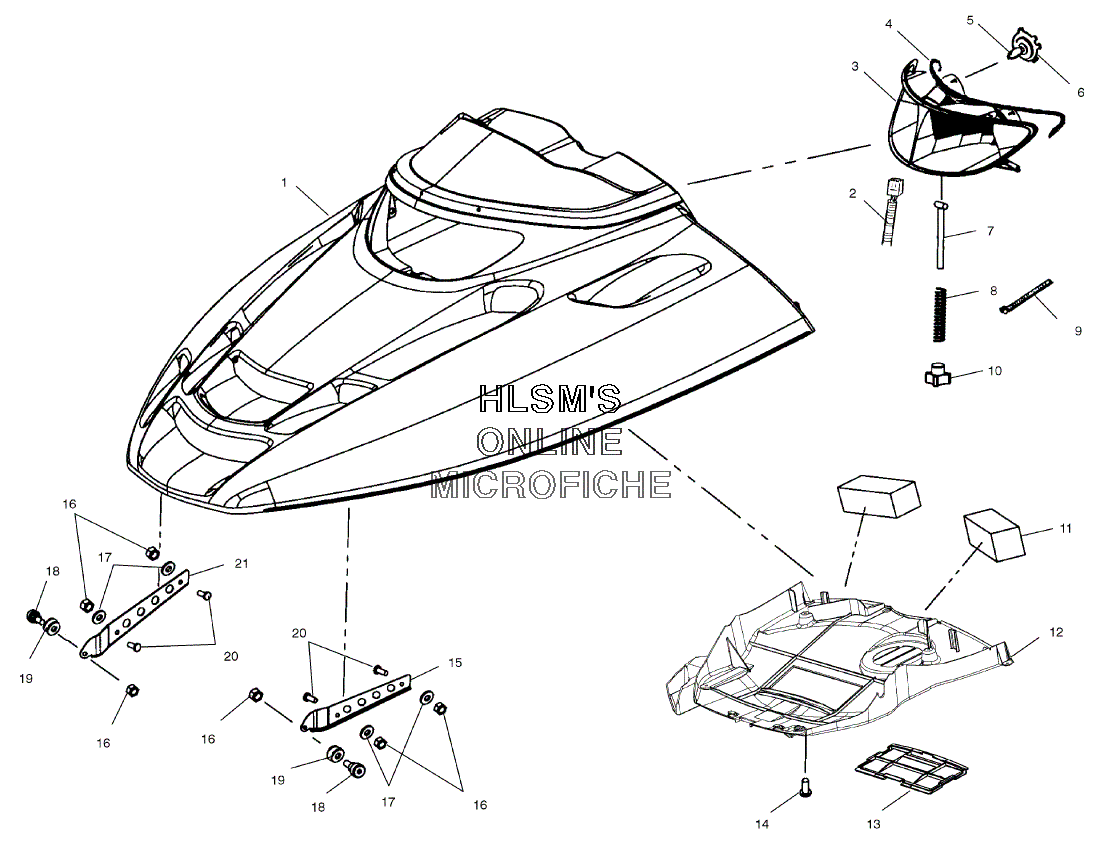

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 440 XC SP (S00NX4CS) - 2000 года выпуска`
-
№АртикулНазвание
-
12632176-293 HOOD, EDGE, XC, SVC, (INDY RED) (INCL. FOAM AND FOIL)HOOD, EDGE, XC, SVC, (INDY RED) (INCL. FOAM AND FOIL)
-
22460791 HARNESS, HEADLGHT, EDGE, COMMONHARNESS, HEADLGHT, EDGE, COMMON
-
32410132 HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)HEADLAMP ASSY., 2, BULB EDGE (INCL. BULBS)
-
45811978 SEAL, HEADLIGHTSEAL, HEADLIGHT
-
52870448 BULB, QUARTZ HEADLIGHT, INDYBULB, QUARTZ HEADLIGHT, INDY
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517746 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
87041924 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
97080138 STRAP, PANDUITSTRAP, PANDUIT
-
107080887 KNOB, HEADLIGHT, ADJUST, LOCKING BKNOB, HEADLIGHT, ADJUST, LOCKING B
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
125433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
135433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
147512068 SCREWSCREW
-
155243567-067 HINGE (UPPER) (LEFT) (BLK)HINGE (UPPER) (LEFT) (BLK)
-
167542122 NUT, LOCKNUT, LOCK
-
177558301 WASHERWASHER
-
187512113 SCREWSCREW
-
195332403 SPACER, HINGESPACER, HINGE
-
207512240 BOLTBOLT
-
215243568-067 HINGE (UPPER) (RIGHT) (BLK)HINGE (UPPER) (RIGHT) (BLK)
