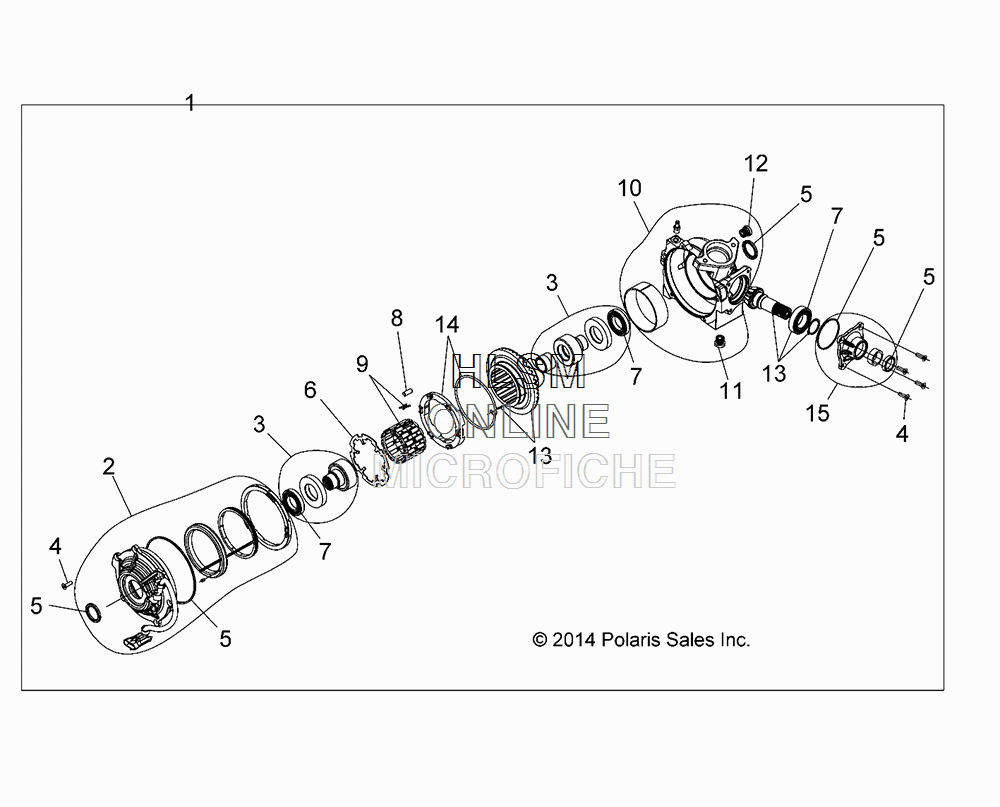

GEARCASE - INTERNAL COMPONENTS - FRONT (BUILT AFTER 8/7/2017) для Polaris SPORTSMAN 1000 HIGH LIFTER (STEALTH BLACK) [A18SXM95AL] - 2018 года выпуска`
-
№АртикулНазвание
-
11334066 ASM-GEARCASE,FRONT [INCL. ALL]ASM-GEARCASE,FRONT [INCL. ALL]
-
23235634 ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]ASSY, COVR OUTLET [INCL. O-RING, 4WD COIL, SPACER, CLIP, INSERT, COVER, PIN, SEAL, WIRING]
-
33235911 KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]KIT, HUB ASSEMBLY [INCL. BEARINGS, BUSHING, HUBS, SPACERS]
-
43235433 KIT, FASTENERS [INCL. QTY 10 SCREWS]KIT, FASTENERS [INCL. QTY 10 SCREWS]
-
53235434 COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]COMPLETE SEAL REPAIR [INCL. ALL O-RINGS, ALL SEALS]
-
63236048 PLATE-4WD ARMATUREPLATE-4WD ARMATURE
-
73235435 BEARINGS [INCL. ALL BEARINGS]BEARINGS [INCL. ALL BEARINGS]
-
83235624 CAGE, ROLLERS [INCL. SET OF 24]CAGE, ROLLERS [INCL. SET OF 24]
-
93235625 ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]ASM., ROLL CAGE [INCL. CAGE, QTY 24 CLIPS]
-
103235436 ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]ASM., GEARCASE [INCL. CASE, BUSHING, PLUGS, SEAL, VENT]
-
112203738 DRAIN PLUGDRAIN PLUG
-
122203739 FILL PLUGFILL PLUG
-
133235636 KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]KIT, GEAR HOUSING & PINION GEAR [INCL. PINION, PIN, BEARING, SNAP RING, RING GEAR]
-
143235712 KIT, TORSION SPRING & RETAINERKIT, TORSION SPRING & RETAINER
-
153236143 ASM-INPUT,COVER [INCL. O-RING, COVER, BUSHING, SEAL]ASM-INPUT,COVER [INCL. O-RING, COVER, BUSHING, SEAL]
