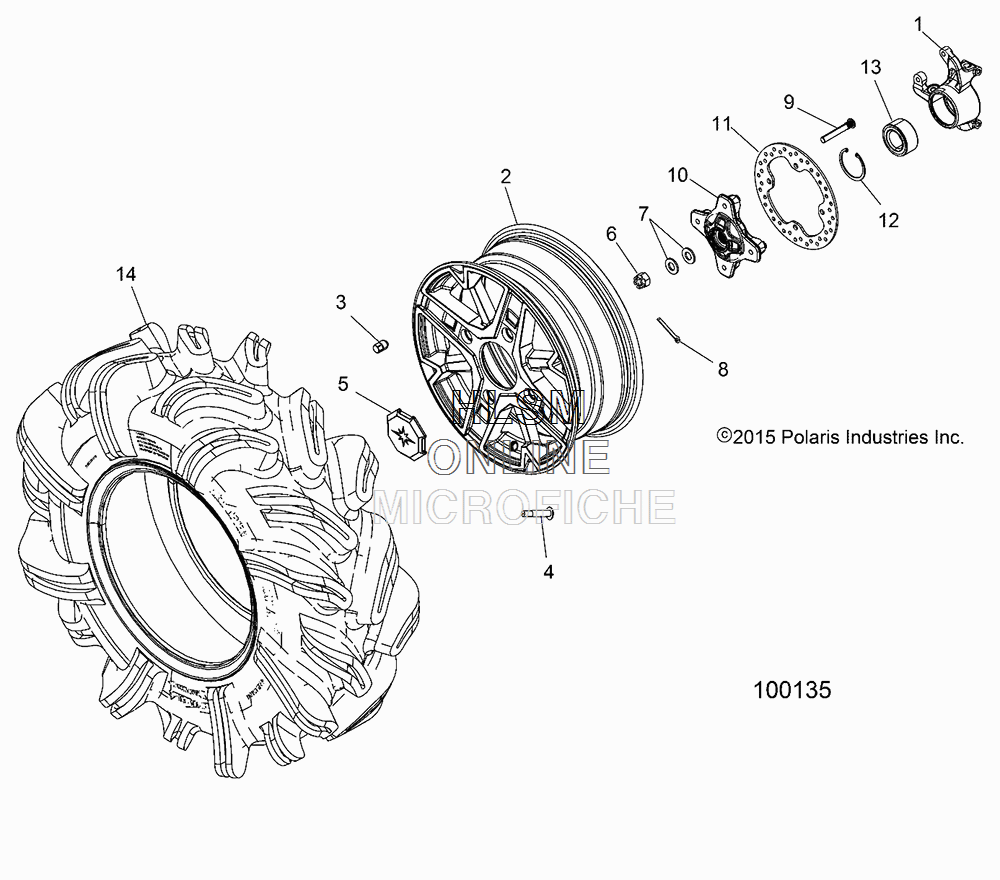

WHEEL - FRONT W/ HUB для Polaris SPORTSMAN 1000 HIGH LIFTER (STEALTH BLACK) [A18SXM95AL] - 2018 года выпуска
-
№АртикулНазвание
-
11822945 ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]ASM., STEERING KNUCKLE, LEFT HAND [INCL. 12,13]
-
11822946 ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]ASM., STEERING KNUCKLE, RIGHT HAND [INCL. 12,13]
-
15136733 KNUCKLE, LEFT HANDKNUCKLE, LEFT HAND
-
15136734 KNUCKLE, RIGHT HANDKNUCKLE, RIGHT HAND
-
21521999-655 CAP-RIM,FLASH MATTE BLACKCAP-RIM,FLASH MATTE BLACK
-
37547361 NUT, WHEELNUT, WHEEL
-
41525017 VALVE, RIMVALVE, RIM
-
51521999 CAP, RIMCAP, RIM
-
67547406 NUT, CASTLENUT, CASTLE
-
77555796 WASHER, CONEWASHER, CONE
-
87661404 PIN, COTTERPIN, COTTER
-
97518671 STUD, WHEELSTUD, WHEEL
-
105135499 HUB, WHEELHUB, WHEEL
-
115250205 DISC, BRAKE,246MM OD,4.75DISC, BRAKE,246MM OD,4.75
-
127710440 RING, RETAININGRING, RETAINING
-
133514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
145415759 TIRE-HL OUTLAWTIRE-HL OUTLAW
