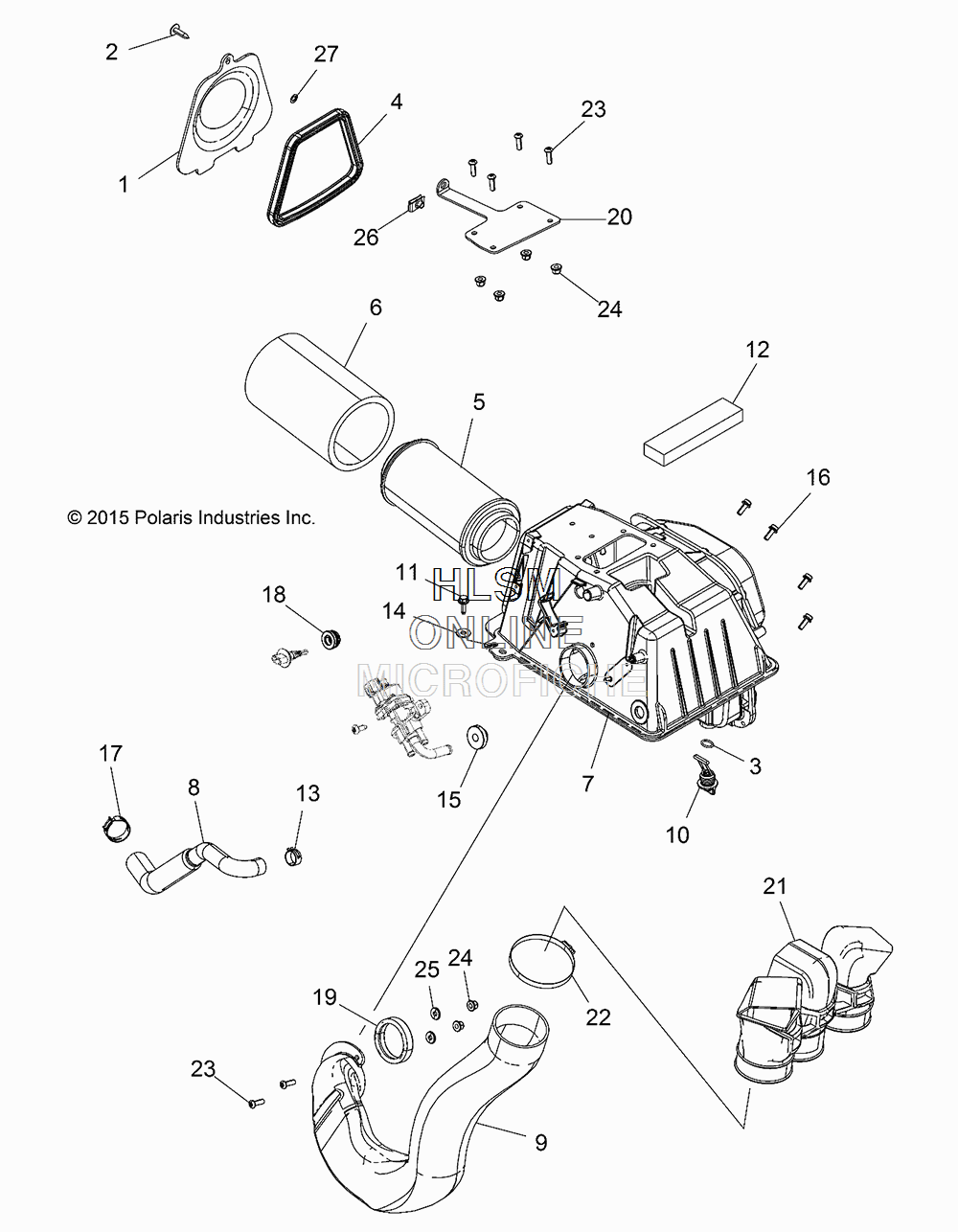

AIR INTAKE SYSTEM для Polaris SPORTSMAN 1000 HIGH LIFTER (STEALTH BLACK) [A18SXM95AL] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5261827 COVER, AIRBOX
    COVER, AIRBOX
  • 2
    7517685 SCR-1/4-20X1.00 TR/TX-M
    SCR-1/4-20X1.00 TR/TX-M
  • 3
    5414246 O-RING 20.85ODX2.5MM
    O-RING 20.85ODX2.5MM
  • 4
    5814345 SEAL, AIRBOX COVER
    SEAL, AIRBOX COVER
  • 5
    7082101 FILTER, AIR INTAKE
    FILTER, AIR INTAKE
  • 6
    5811633 FILTER, PRECLEANER SLEEVE
    FILTER, PRECLEANER SLEEVE
  • 7
    1240953 ASM-AIR INTAKE,BOX W/RUNNERS
    ASM-AIR INTAKE,BOX W/RUNNERS
  • 8
    5414322 HOSE, BREATHER, TWIN
    HOSE, BREATHER, TWIN
  • 9
    5452407 DUCT-AIR INLET,FRONT
    DUCT-AIR INLET,FRONT
  • 10
    5451429 PLUG, AIR BOX
    PLUG, AIR BOX
  • 11
    7518529 SCREW
    SCREW
  • 12
    5813409 FOAM
    FOAM
  • 13
    7081026 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 15
    5413423 GROMMET, SUPPORT, TRUNK
    GROMMET, SUPPORT, TRUNK
  • 16
    7518803 SCREW
    SCREW
  • 17
    7080842 CLAMP, SPRINGBAND, BLACK
    CLAMP, SPRINGBAND, BLACK
  • 18
    5436346 GROMMET, AIR TEMP SENSOR
    GROMMET, AIR TEMP SENSOR
  • 19
    5814346 SEAL-AIRBOX,INTAKE DUCT
    SEAL-AIRBOX,INTAKE DUCT
  • 20
    5261826 PLATE-CLOSEOUT
    PLATE-CLOSEOUT
  • 21
    5415531 BOOT-AIR NTAKE
    BOOT-AIR NTAKE
  • 22
    7081279 CLAMP-BAND,NARROW, 70-90MM
    CLAMP-BAND,NARROW, 70-90MM
  • 23
    7518546 SCR-M6X1.0X20MM,TX,PH,8.8-B
    SCR-M6X1.0X20MM,TX,PH,8.8-B
  • 24
    7547274 NUT-M6 FLANGE,NYLOC
    NUT-M6 FLANGE,NYLOC
  • 25
    7555748 WASHER-.28X.62-.14(RBR-BK)-Z
    WASHER-.28X.62-.14(RBR-BK)-Z
  • 26
    7670096 NUT-CHIMNEY 1/4-20,GR-5
    NUT-CHIMNEY 1/4-20,GR-5
  • 27
    7670154 RETAINER-BOLT,1/4-20
    RETAINER-BOLT,1/4-20
