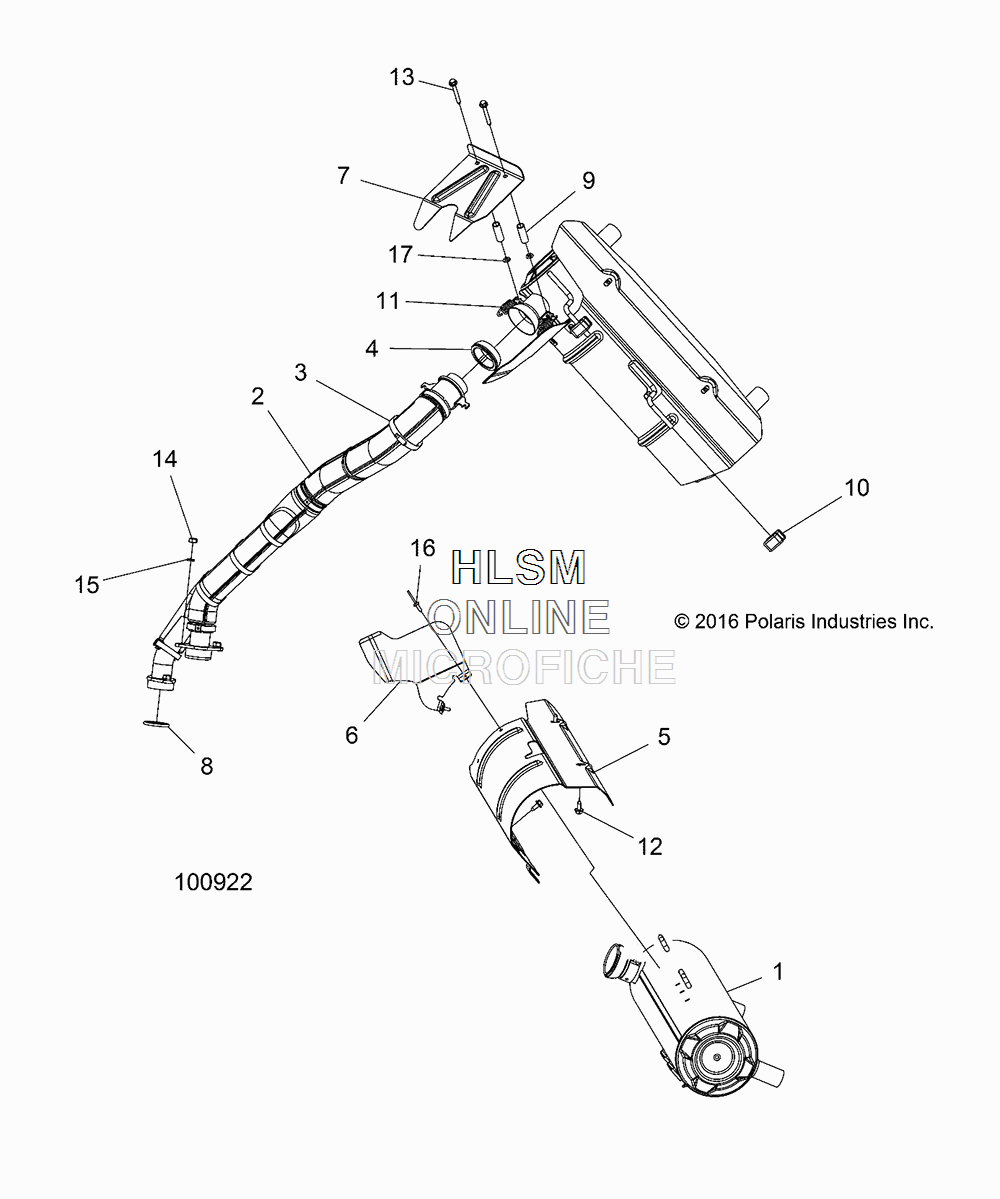

EXHAUST SYSTEM для Polaris SPORTSMAN 1000 HIGH LIFTER (STEALTH BLACK) [A18SXM95AL] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1262970-489 WELD-EXHAUST SILENCER,BLACK [INCLUDES CLEAN OUT BOLT, WASHER]
    WELD-EXHAUST SILENCER,BLACK [INCLUDES CLEAN OUT BOLT, WASHER]
  • 1
    7512666 BOLT-CLEAN OUT
    BOLT-CLEAN OUT
  • 1
    7556230 WASHER-CLEAN OUT
    WASHER-CLEAN OUT
  • 2
    1263072 ASM-EXHAUST PIPE,TWIN [INCLUDES SHIELDS, 3]
    ASM-EXHAUST PIPE,TWIN [INCLUDES SHIELDS, 3]
  • 3
    7080809 CLAMP-WORM DRIVE,.44WX2.75 DIA
    CLAMP-WORM DRIVE,.44WX2.75 DIA
  • 4
    3610179 SEAL-EXHAUST
    SEAL-EXHAUST
  • 5
    5252266 SHIELD-BOX,STORAGE
    SHIELD-BOX,STORAGE
  • 6
    5258649 SHIELD-EXHAUST
    SHIELD-EXHAUST
  • 7
    5253865 SHIELD-EXHAUST SPRING
    SHIELD-EXHAUST SPRING
  • 8
    5257995 GASKET-EXHAUST SEALING,46.50
    GASKET-EXHAUST SEALING,46.50
  • 9
    5336190 SPACER-EXHAUST SHIELD SPRING
    SPACER-EXHAUST SHIELD SPRING
  • 10
    5413383 GROMMET-SILENCER MOUNT
    GROMMET-SILENCER MOUNT
  • 11
    7041789 SPRING-EXHAUST
    SPRING-EXHAUST
  • 12
    7518513 BOLT-M6X1.0X15,HXFLG,TAP/R-OD
    BOLT-M6X1.0X15,HXFLG,TAP/R-OD
  • 13
    7519090 SCR-HXFL-M6X1.0X50 TDFM ZPB
    SCR-HXFL-M6X1.0X50 TDFM ZPB
  • 14
    7547076 NUT-HEX-M8X1.25 8 ZPB.
    NUT-HEX-M8X1.25 8 ZPB.
  • 15
    7556111 WASHER-LOCK M8X12.7ODX2MM ZY3
    WASHER-LOCK M8X12.7ODX2MM ZY3
  • 16
    7661637 RIVET-3/16-.090-.290
    RIVET-3/16-.090-.290
  • 17
    7670154 RETAINER-BOLT,1/4-20
    RETAINER-BOLT,1/4-20
