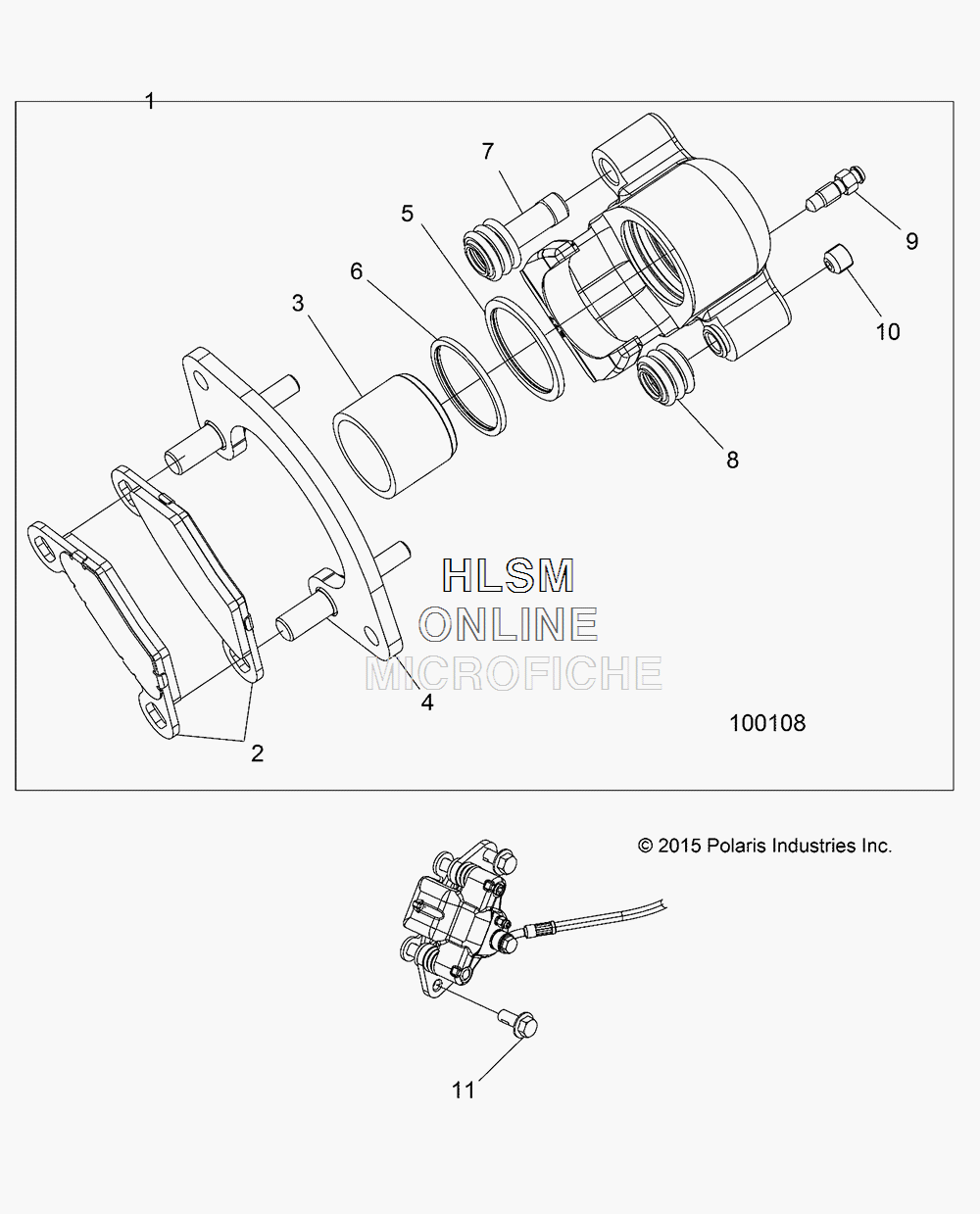

BRAKE - FRONT CALIPER для Polaris SPORTSMAN 1000 HIGH LIFTER (STEALTH BLACK) [A18SXM95AL] - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1912364 ASM-CLPR,BRK,1.5,FRT,LEFT HAND,257A [INCL. 2-10]
    ASM-CLPR,BRK,1.5,FRT,LEFT HAND,257A [INCL. 2-10]
  • 1
    1912365 ASM-CLPR,BRK,1.5,FRT,RIGHT HAND,257A [INCL. 2-10]
    ASM-CLPR,BRK,1.5,FRT,RIGHT HAND,257A [INCL. 2-10]
  • 2
    2205606 KIT, BRAKE PAD, HIGH PERF.,246MM [INCL. 2 PADS]
    KIT, BRAKE PAD, HIGH PERF.,246MM [INCL. 2 PADS]
  • 3
    5132829 PISTON-CALIPER,1.50 (MACH)
    PISTON-CALIPER,1.50 (MACH)
  • 4
    1911225 ASM., CALIPER MOUNT
    ASM., CALIPER MOUNT
  • 5
    5412010 SEAL-CALIPER INNER,1.50 IN
    SEAL-CALIPER INNER,1.50 IN
  • 6
    5412011 SEAL-CALIPER,OUTER,1.50 IN
    SEAL-CALIPER,OUTER,1.50 IN
  • 7
    5412505 BOOT, PIN BUSHING
    BOOT, PIN BUSHING
  • 8
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 9
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 10
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 11
    7518760 BOLT, FLANGE [CALIPER MOUNTING]
    BOLT, FLANGE [CALIPER MOUNTING]
