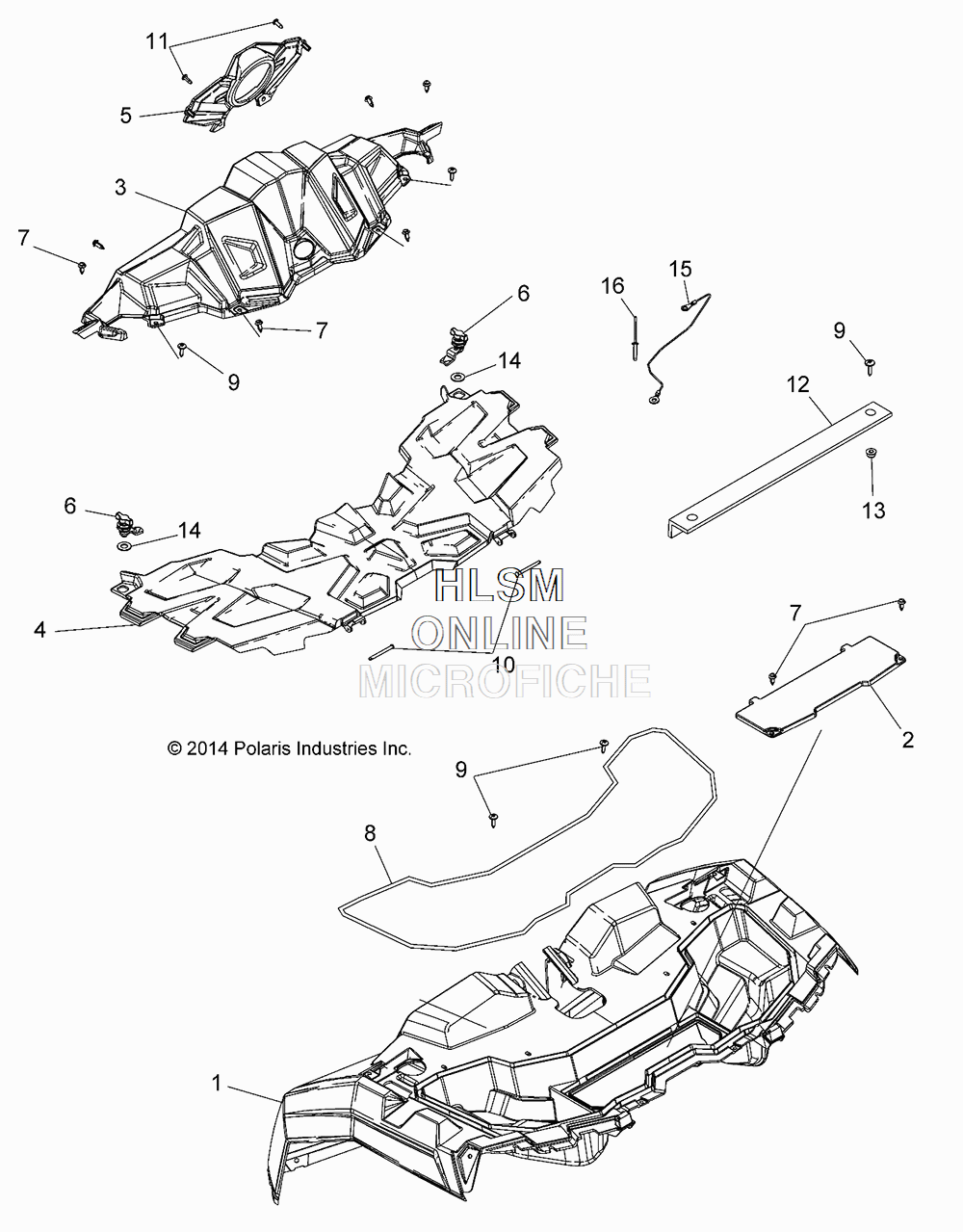

HOOD AND FRONT BODY WORK для Polaris ACE 900 EFI EPS (STEALTH BLACK/WHITE) [A16DAE87AL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2635431-464 ASM-CAB,FR,SVC,PNTD,S.BLACK ((INCL. WARNING DECAL))
    ASM-CAB,FR,SVC,PNTD,S.BLACK ((INCL. WARNING DECAL))
  • 2
    5450063-070 PANEL, ACCESS, BLACK
    PANEL, ACCESS, BLACK
  • 3
    5450064-070 PANEL, CAB, UPPER, BLACK
    PANEL, CAB, UPPER, BLACK
  • 4
    5450073-070 COVER, BOX, FRONT, BLACK
    COVER, BOX, FRONT, BLACK
  • 5
    5450092-070 PANEL, INSTRUMENT, UPPER, BLACK
    PANEL, INSTRUMENT, UPPER, BLACK
  • 6
    7081425 LATCH
    LATCH
  • 7
    7661855 RIVET
    RIVET
  • 8
    5522023 SEAL, BOX, FRONT
    SEAL, BOX, FRONT
  • 9
    7519650 SCREW
    SCREW
  • 10
    5134576 PIN, HINGE, FRONT
    PIN, HINGE, FRONT
  • 11
    7519045 SCREW
    SCREW
  • 12
    5259456-329 BRACE, ANGLE
    BRACE, ANGLE
  • 13
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 14
    7556042 WASHER
    WASHER
  • 15
    7082043 CABLE, LID, FRONT
    CABLE, LID, FRONT
  • 16
    7621334 RIVET
    RIVET
