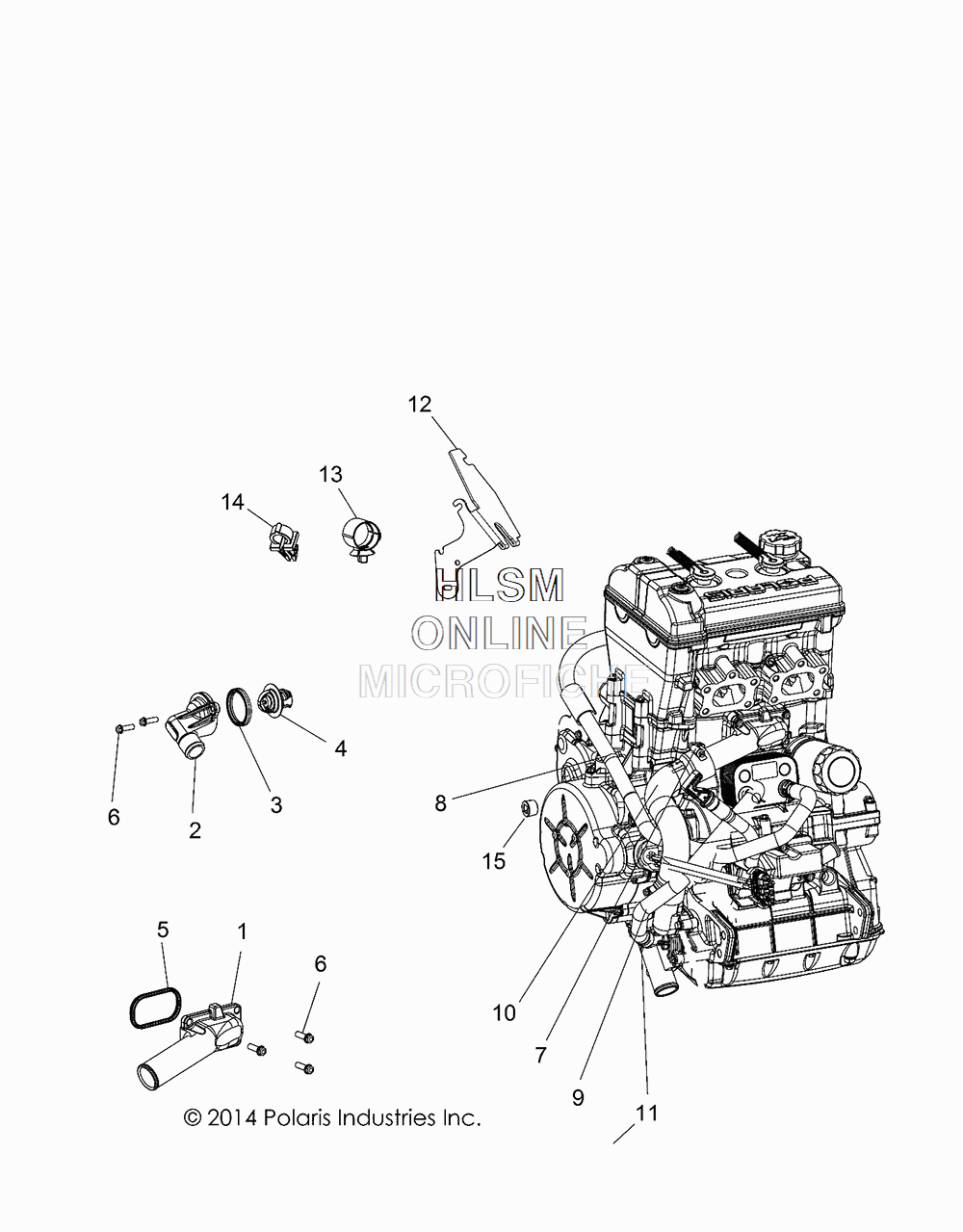

CRANKCASE для Polaris ACE 900 EFI EPS (STEALTH BLACK/WHITE) [A16DAE87AL] - 2016 года выпуска
-
№АртикулНазвание
-
12206113 KIT, CRANKCASE ((INCL. 2-4,8-10,15))KIT, CRANKCASE ((INCL. 2-4,8-10,15))
-
25452616 DIVERTER, OIL DRAINDIVERTER, OIL DRAIN
-
37052413 PLUGPLUG
-
47517793 SCREWSCREW
-
55137873 COVER, SUMPCOVER, SUMP
-
67052306 PLUG, SOCKETPLUG, SOCKET
-
77518835 PLUG, HEX SOCKETPLUG, HEX SOCKET
-
87518578 SCREWSCREW
-
97519141 SCREWSCREW
-
107519154 SCREWSCREW
-
117519186 SCREWSCREW
-
127519297 SCREWSCREW
-
135812232 WASHER, COPPERWASHER, COPPER
-
143610176 SEAL, FLANGESEAL, FLANGE
-
155136879 PIN, DOWELPIN, DOWEL
Все узлы модели:
- A-ARMS- MID DRIVE
- AIR INTAKE
- AIR INTAKE SYSTEM
- BALANCE SHAFT
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - REAR CALIPER
- BRAKE LINES AND MASTER CYLINDER
- BREATHER PIPE
- BUMPER - FRONT
- BUMPER - REAR
- CAB FRAME AND SIDE BARS
- CALIPER MOUNTING
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER W/DUCTING
- COLLING - THERMOSTAT AND BYPASS
- COOLING - WATERPUMP
- COOLING SYSTEM
- • CRANKCASE
- CRANKSHAFT W/ CYLINDER
- CYLINDER HEAD W/ CYLINDER
- DASH INSTRUMENTS W/ CONTROLS
- DECALS
- DOORS (BUILT 10/12/15 AND BEFORE)
- DOORS (FROM 10/13/15)
- ELECTRICAL - HEADLIGHTS-TAILLIGHTS- BULBS
- ELECTRICAL - SENSORS- ECU AND CONTROL MODULES
- EXHAUST SYSTEM
- FLOOR AND ROCKER PANELS
- FRONT HALF SHAFT
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE - INTERNAL COMPONENTS - FRONT
- HOOD AND FRONT BODY WORK
- IGNITION
- MAIN FRAME AND SKID PLATE
- MOUNTING
- OIL COOLING SYSTEM
- OIL DIPSTICK- CAP AND TUBE
- PEDAL AND MASTER CYLINDER
- PROP SHAFT - FRONT
- REAR CONTROL ARMS
- REAR HALF SHAFT
- REAR RACK AND FENDERS
- REAR WHEELS
- SEAT ASM.
- SEAT MOUNTING AND BELTS
- SPLASH SHIELDS
- STABILIZER BAR- FRONT
- STABILIZER BAR- REAR
- STARTER AND TORQUE LIMIT GEAR
- STATOR- COVER AND FLYWHEEL
- STEERING ASM.
- SUSPENSION - FRONT STRUT
- SUSPENSION - SWING ARM W/ SHOCK MOUNTING
- THROTTLE PEDAL
- TIMING- VALVES AND CAMSHAFTS
- TOOL KIT AND OWNERS MANUAL
- VALVE COVER
- WHEEL - FRONT W/BRAKE DISK
- WIRE HARNESS
