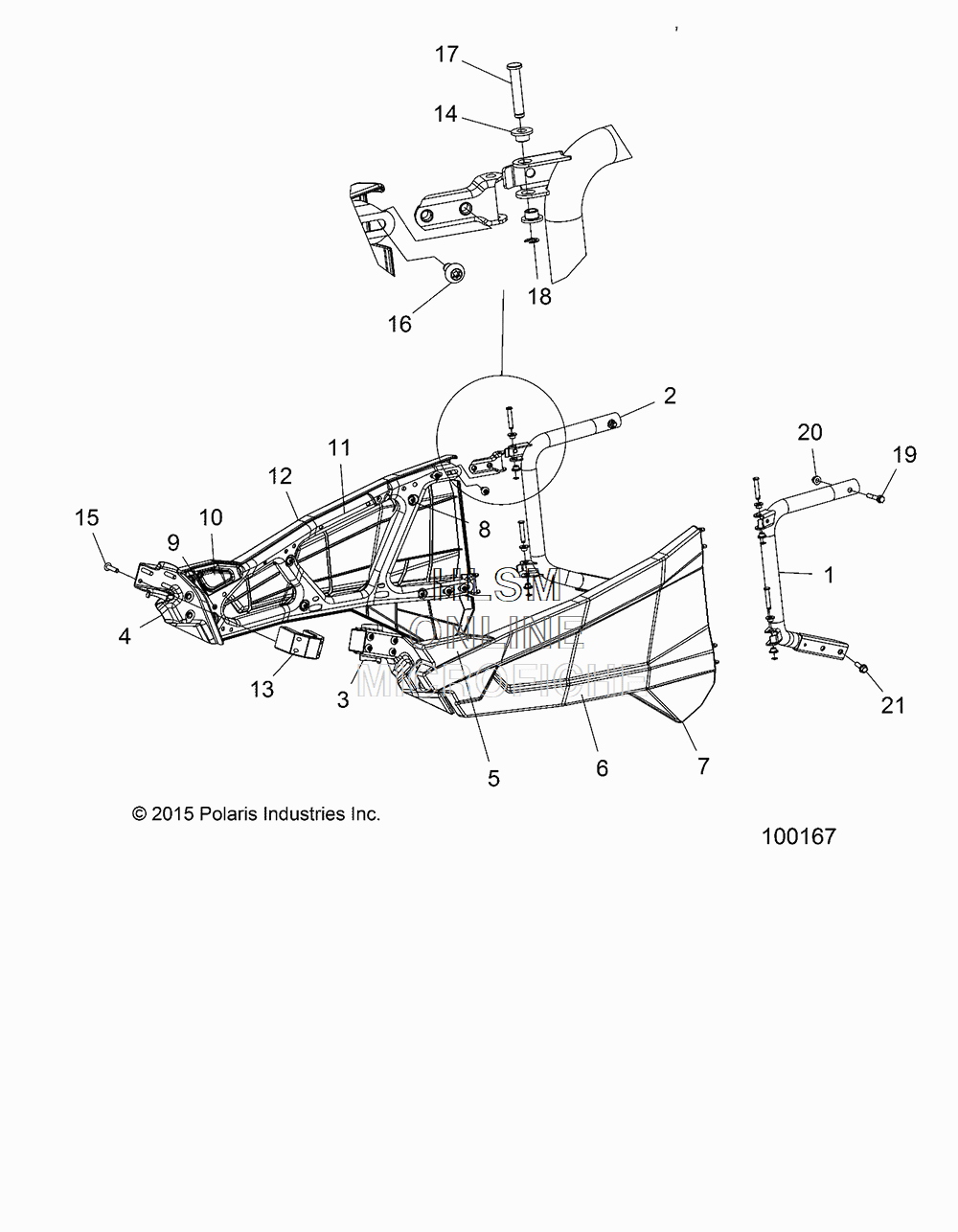

DOORS (FROM 10/13/15) для Polaris ACE 900 EFI EPS (STEALTH BLACK/WHITE) [A16DAE87AL] - 2016 года выпуска
-
№АртикулНазвание
-
11021748-458 WELD-BOLSTER,LH,ACE, BLACKWELD-BOLSTER,LH,ACE, BLACK
-
21021749-458 WELD-BOLSTER,RH,ACE, BLACKWELD-BOLSTER,RH,ACE, BLACK
-
31021750-458 WELD-BRKT,MT,DR LTCH,LH, BLACKWELD-BRKT,MT,DR LTCH,LH, BLACK
-
41021751-458 WELD-BRKT,MT,DR LTCH,RH, BLACKWELD-BRKT,MT,DR LTCH,RH, BLACK
-
52635305 ASM-LATCH,DOOR,LHASM-LATCH,DOOR,LH
-
65257929-458 STAMPING DOOR FRAME,LH, BLACKSTAMPING DOOR FRAME,LH, BLACK
-
75450636 DOOR SKIN, LHDOOR SKIN, LH
-
87519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBKSCR-TX TRUSS-#14X3/4,HI/LO ZBK
-
97519063 SCR-TXBH-M6X1.0X12 8.8 ZPB D20SCR-TXBH-M6X1.0X12 8.8 ZPB D20
-
102635306 ASM-LATCH,DOOR,RHASM-LATCH,DOOR,RH
-
115257930-458 STAMPING DOOR FRAME,RH, BLACKSTAMPING DOOR FRAME,RH, BLACK
-
125450638 DOOR SKIN,RHDOOR SKIN,RH
-
135140136 MACH-CLAMP,DOOR,ACEMACH-CLAMP,DOOR,ACE
-
135140310 MACH-CLAMP,DOOR,ACEMACH-CLAMP,DOOR,ACE
-
145450592 BUSHING-DOOR PIVOTBUSHING-DOOR PIVOT
-
157516732 SCR-SH-M8X1.25X30 8.8 ZPCSCR-SH-M8X1.25X30 8.8 ZPC
-
167519997 SCR-TXTH-M8X1.25X20 8.8 ZB3 P3SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
-
177662138 PIN-DOOR HINGEPIN-DOOR HINGE
-
187710466 E-CLIP,M6,0600101E-CLIP,M6,0600101
-
197520367 SCREWSCREW
-
207547317 NUT, FLANGENUT, FLANGE
-
217519243 SCREWSCREW
