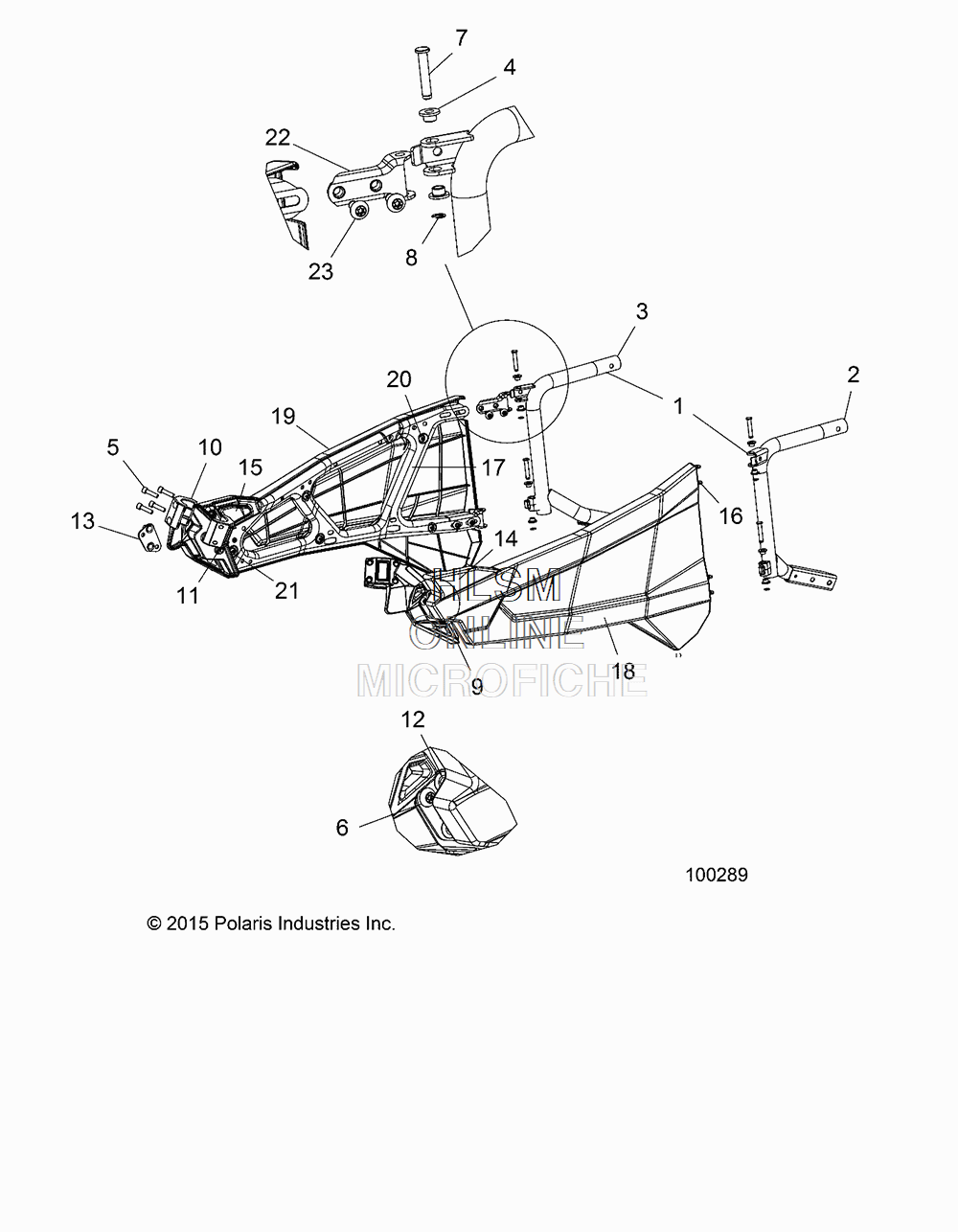

DOORS (BUILT 10/12/15 AND BEFORE) для Polaris ACE 900 EFI EPS (STEALTH BLACK/WHITE) [A16DAE87AL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2205778 KIT,SVC,BOLSTERS,LH/RH,ACE
    KIT,SVC,BOLSTERS,LH/RH,ACE
  • 2
    1020141 WELD-BOLSTER,LH
    WELD-BOLSTER,LH
  • 3
    1020142 WELD-BOLSTER,RH
    WELD-BOLSTER,RH
  • 4
    5450592 BUSHING-DOOR PIVOT
    BUSHING-DOOR PIVOT
  • 5
    7517361 SCR-SH-M8X1.25X30 8.8 ZPC
    SCR-SH-M8X1.25X30 8.8 ZPC
  • 6
    7519997 SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
    SCR-TXTH-M8X1.25X20 8.8 ZB3 P3
  • 7
    7662138 PIN-DOOR HINGE
    PIN-DOOR HINGE
  • 8
    7710466 E-CLIP,M6,0600101
    E-CLIP,M6,0600101
  • 9
    5633089 CASTING-LATCH MOUNT,LH
    CASTING-LATCH MOUNT,LH
  • 10
    5633090 CASTING-LATCH MOUNT,RH
    CASTING-LATCH MOUNT,RH
  • 11
    5633091 CASTING-LATCH MOUNT,INNER
    CASTING-LATCH MOUNT,INNER
  • 12
    2634931 ASM-STRIKER,LH
    ASM-STRIKER,LH
  • 13
    2634968 ASM-STRIKER,RH
    ASM-STRIKER,RH
  • 14
    2635305 ASM-LATCH,DOOR,LH
    ASM-LATCH,DOOR,LH
  • 15
    2635306 ASM-LATCH,DOOR,RH
    ASM-LATCH,DOOR,RH
  • 16
    5257929-458 STAMPING DOOR FRAME,LH, BLACK
    STAMPING DOOR FRAME,LH, BLACK
  • 17
    5257930-458 STAMPING DOOR FRAME,RH, BLACK
    STAMPING DOOR FRAME,RH, BLACK
  • 18
    5450636 DOOR SKIN, LH
    DOOR SKIN, LH
  • 19
    5450638 DOOR SKIN,RH
    DOOR SKIN,RH
  • 20
    7519045 SCR-TX TRUSS-#14X3/4,HI/LO ZBK
    SCR-TX TRUSS-#14X3/4,HI/LO ZBK
  • 21
    7519063 SCR-TXBH-M6X1.0X12 8.8 ZPB D20
    SCR-TXBH-M6X1.0X12 8.8 ZPB D20
  • 22
    5258008 BRKT-DOOR HINGE
    BRKT-DOOR HINGE
  • 23
    7519997 SCREW
    SCREW
