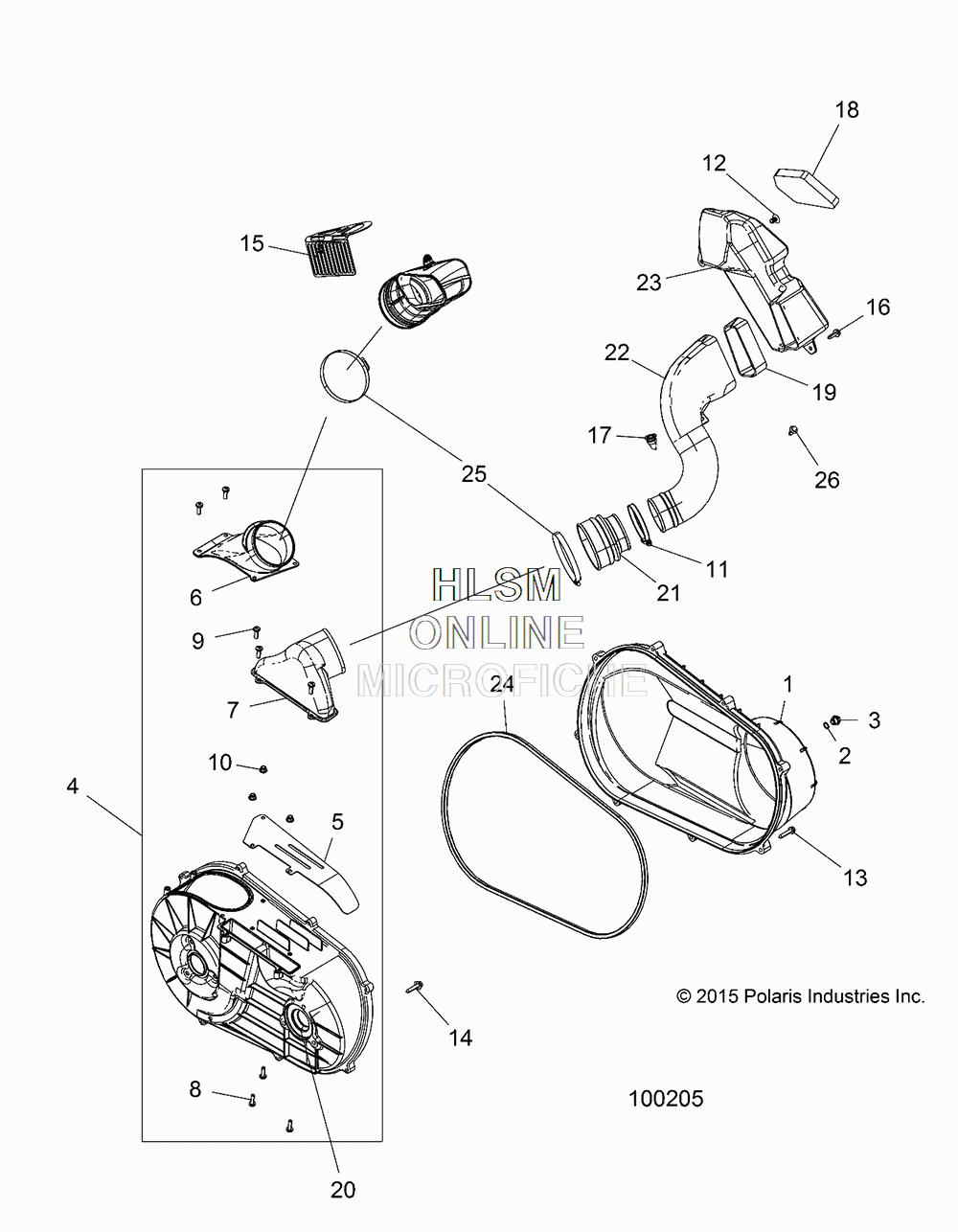

CLUTCH COVER W/DUCTING для Polaris ACE 900 EFI EPS (STEALTH BLACK/WHITE) [A16DAE87AL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2634179 ASM., COVER, CLUTCH, OUTER ((INCL. COVER, 2,3))
    ASM., COVER, CLUTCH, OUTER ((INCL. COVER, 2,3))
  • 2
    5410542 O-RING
    O-RING
  • 3
    5434264 PLUG, DRAIN
    PLUG, DRAIN
  • 4
    2634863 ASM-COVER,CLUTCH,INNER ((INCL. 4-10))
    ASM-COVER,CLUTCH,INNER ((INCL. 4-10))
  • 5
    5256223 BRKT-GUARD,CLUTCH COVER
    BRKT-GUARD,CLUTCH COVER
  • 6
    5450846 DUCT-CLUTCH,AIR OUTLET
    DUCT-CLUTCH,AIR OUTLET
  • 7
    5450051 DUCT-CLUTCH,AIR IN
    DUCT-CLUTCH,AIR IN
  • 8
    7518546 SCR-M6X1.0X20MM,TX,PH,8.8-B
    SCR-M6X1.0X20MM,TX,PH,8.8-B
  • 9
    7519205 SCR-#14X3/4 HI/LO-PH-PN TRX-M
    SCR-#14X3/4 HI/LO-PH-PN TRX-M
  • 10
    7547453 NUT-HXFL-M6X1.0 8 ZB3 NYL
    NUT-HXFL-M6X1.0 8 ZB3 NYL
  • 11
    7080707 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 12
    7670088 CLIP
    CLIP
  • 13
    7519849 SCREW
    SCREW
  • 14
    7519278 ASM., BOLT/WASHER
    ASM., BOLT/WASHER
  • 15
    5261811 BRACKET, SCREEN, BELT
    BRACKET, SCREEN, BELT
  • 16
    7518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
    SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
  • 17
    5414472 PLUG, DRAIN
    PLUG, DRAIN
  • 18
    5814026 FILTER, INTAKE, FOAM
    FILTER, INTAKE, FOAM
  • 19
    5814033 SEAL, FOAM
    SEAL, FOAM
  • 20
    5813708 SEAL-COVER,PTO
    SEAL-COVER,PTO
  • 21
    5415544 BOOT-CLUTCH,INLET
    BOOT-CLUTCH,INLET
  • 22
    5452289 DUCT-CLUTCH,AIR IN
    DUCT-CLUTCH,AIR IN
  • 23
    5450727 BOX, INTAKE, CLUTCH,LH
    BOX, INTAKE, CLUTCH,LH
  • 24
    5521831 SEAL, OUTER
    SEAL, OUTER
  • 25
    7081626 CLAMP-WORM DRIVE,3.69 DIA
    CLAMP-WORM DRIVE,3.69 DIA
  • 26
    7661855 RIVET
    RIVET
