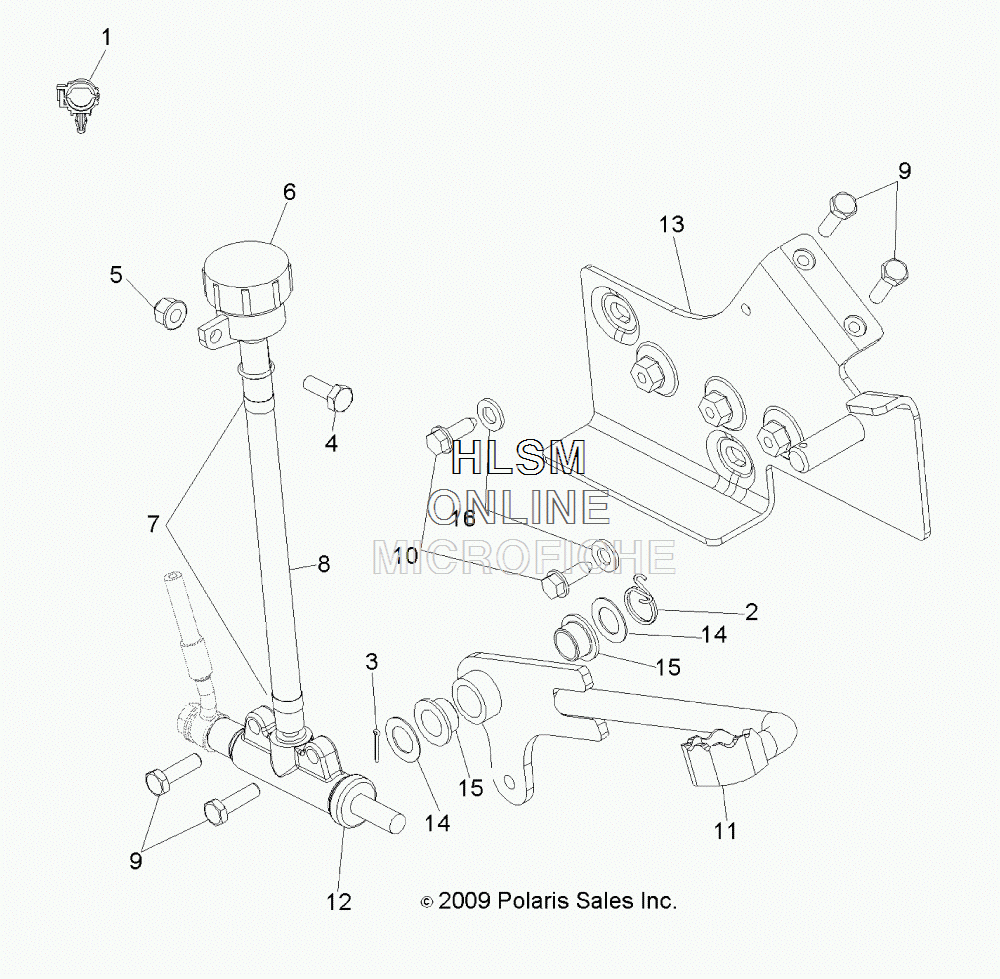

BRAKE - REAR MASTER CYLINDER W/ FOOT PEDAL для Polaris TRAIL BOSS 330 [A12EA32AA] - 2012 года выпуска`
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
27041750 SPRING, TORSIONSPRING, TORSION
-
37661401 PIN, COTTERPIN, COTTER
-
47512240 SCREWSCREW
-
57542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
61930854 ASM., RESERVOIR (INCL. CAP, SEAL)ASM., RESERVOIR (INCL. CAP, SEAL)
-
77080003 CLAMP, HOSECLAMP, HOSE
-
81911267-559 HOSE, RESERVOIRHOSE, RESERVOIR
-
97515158 SCREWSCREW
-
107512232 BOLTBOLT
-
111911493-067 PEDAL, BRAKE, BLACKPEDAL, BRAKE, BLACK
-
121911274 ASM., FOOT BRAKE MASTER CYLINDERASM., FOOT BRAKE MASTER CYLINDER
-
131911494-329 MOUNT, BRAKE, BLACKMOUNT, BRAKE, BLACK
-
147555919 WASHERWASHER
-
155433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
167558301 WASHER, FLATWASHER, FLAT
