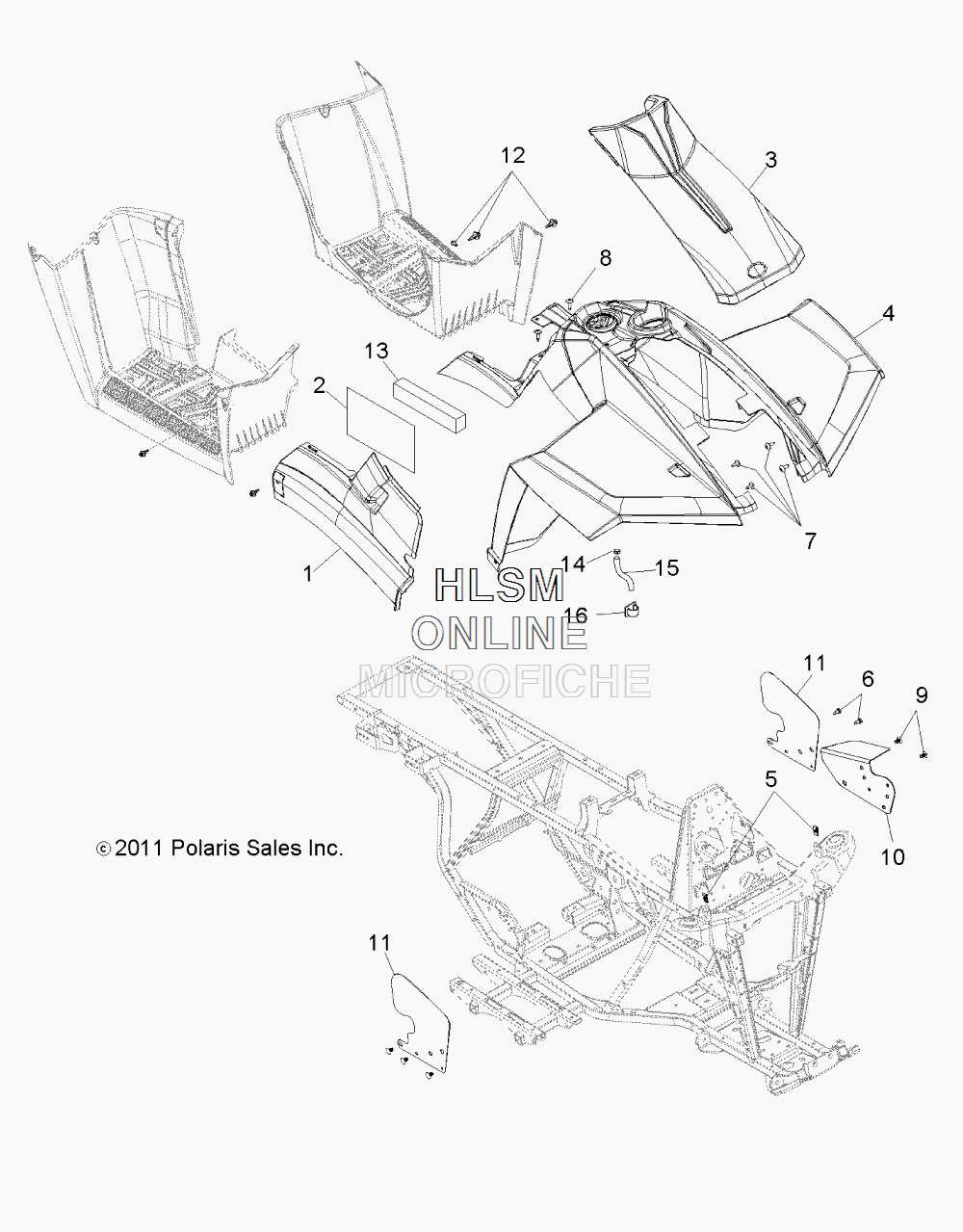

CAB - FRONT W/ SIDE PANELS для Polaris TRAIL BOSS 330 [A12EA32AA] - 2012 года выпуска`
-
№АртикулНазвание
-
15437921-070 PANEL, SIDE, BLACKPANEL, SIDE, BLACK
-
25813552 FOILFOIL
-
35437920-070 COVER, FRONT, BLACKCOVER, FRONT, BLACK
-
42633914-524 ASM., CAB, FRONT, BOARDWALK BLUE (INCL. WARNING DECALS)ASM., CAB, FRONT, BOARDWALK BLUE (INCL. WARNING DECALS)
-
57670057 NUT, SPEEDNUT, SPEED
-
67517386 SCREWSCREW
-
77518280 SCREWSCREW
-
87517685 SCREWSCREW
-
97670088 CLIP, DARTCLIP, DART
-
105246872 GUARD, SPLASH, LEFT HAND/PUMP MOUNTGUARD, SPLASH, LEFT HAND/PUMP MOUNT
-
115438246 SHIELD, SPLASH, FRONTSHIELD, SPLASH, FRONT
-
127661855 RIVETRIVET
-
135813255 FOAM, SEALFOAM, SEAL
-
147080307 CLAMP, HOSECLAMP, HOSE
-
158450003-1525 LINE, FUELLINE, FUEL
-
167670134 CLIP, ROUTINGCLIP, ROUTING
