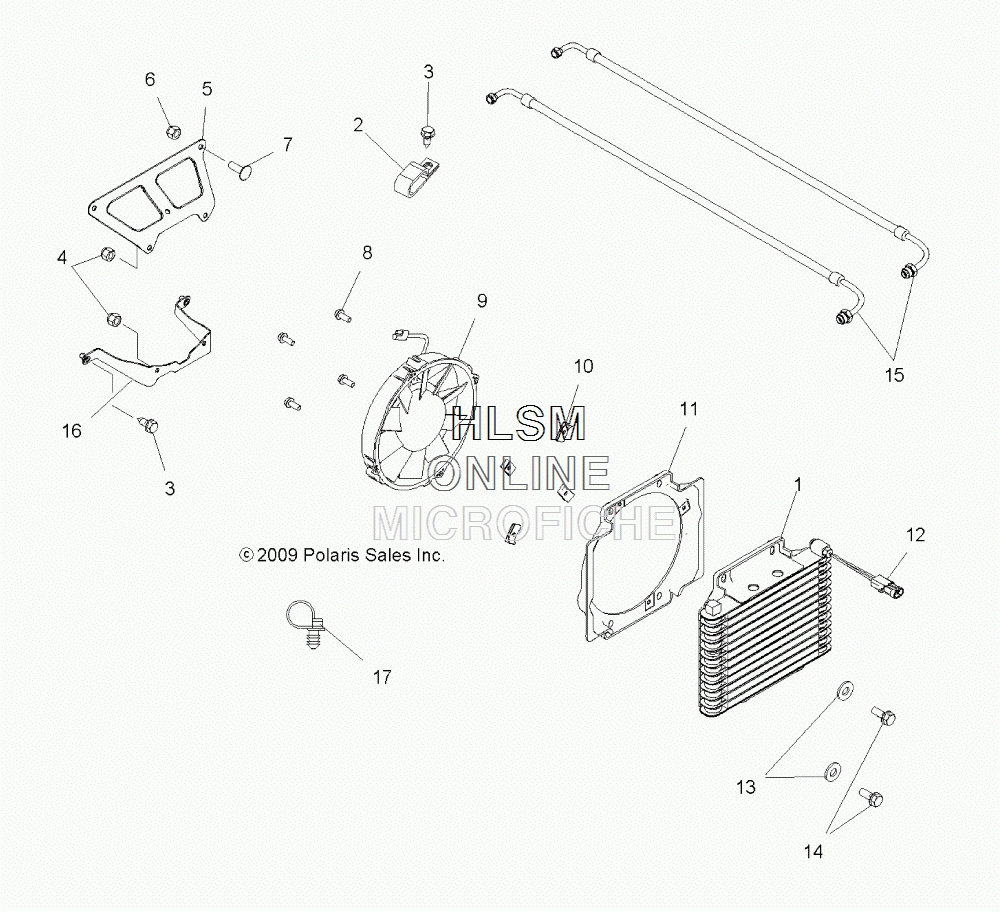

COOLING SYSTEM для Polaris TRAIL BOSS 330 [A12EA32AA] - 2012 года выпуска
-
№АртикулНазвание
-
11240524 COOLER, OILCOOLER, OIL
-
27081364 CLAMP, DOUBLE TUBECLAMP, DOUBLE TUBE
-
37517386 SCREWSCREW
-
47542122 NUT, NYLOKNUT, NYLOK
-
55253470-329 BRACKET, OIL COOLER, UPPER, BLACKBRACKET, OIL COOLER, UPPER, BLACK
-
67542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
77512232 BOLTBOLT
-
87517659 SCREWSCREW
-
92410534 ASM., MOTOR, FANASM., MOTOR, FAN
-
107670111 U-CLIPU-CLIP
-
115438242 SHROUD, FANSHROUD, FAN
-
124012510 SWITCH, FAN ON, HOT LIGHTSWITCH, FAN ON, HOT LIGHT
-
137558301 WASHER, FLATWASHER, FLAT
-
147512247 BOLTBOLT
-
155413650 HOSE, COOLER, THREADEDHOSE, COOLER, THREADED
-
165253367-067 BRACKET, OIL COOLER, LOWER, BLACKBRACKET, OIL COOLER, LOWER, BLACK
-
177081334 STRAP, TREE MOUNT CABLE TIESTRAP, TREE MOUNT CABLE TIE
