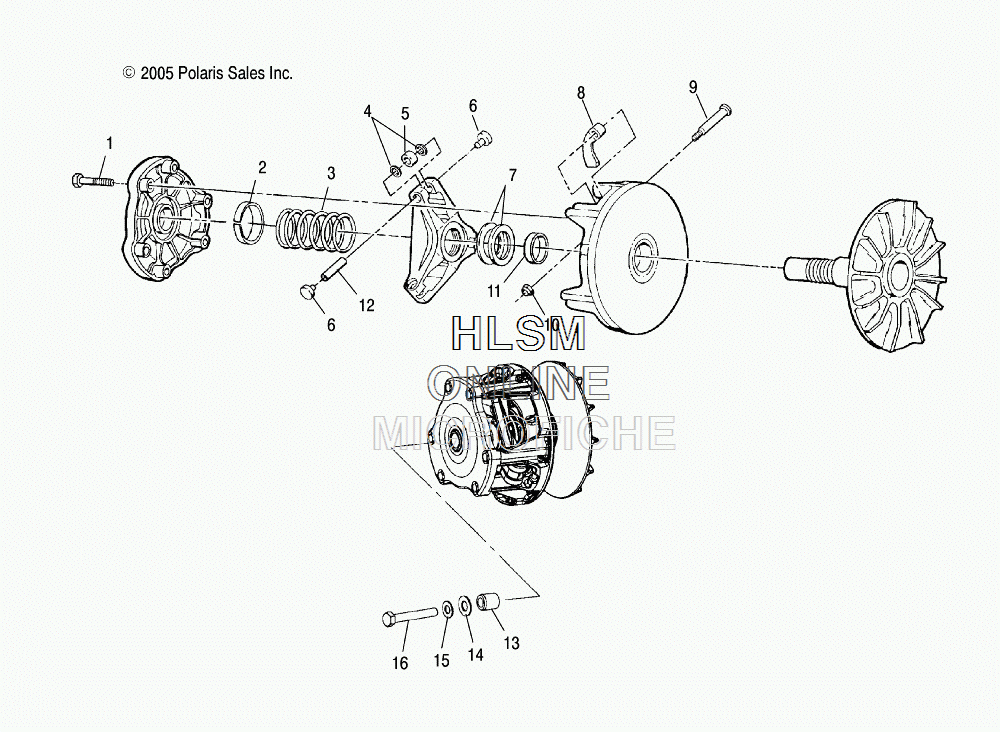

CLUTCH - PRIMARY для Polaris TRAIL BOSS 330 [A12EA32AA] - 2012 года выпуска
-
№АртикулНазвание
-
31322682 ASM., DRIVE CLUTCH (INCL. ALL LESS 3,8,13-16)ASM., DRIVE CLUTCH (INCL. ALL LESS 3,8,13-16)
-
17518062 SCREWSCREW
-
23576510 BEARING, COVERBEARING, COVER
-
37042202 SPRING, CLUTCH, BLUE/GRAYSPRING, CLUTCH, BLUE/GRAY
-
45438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
51321457 ASM., ROLLER/BUSHINGASM., ROLLER/BUSHING
-
65431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
75210752 SPACER, .020SPACER, .020
-
75242981 SPACER, .025SPACER, .025
-
75210753 SPACER, .032SPACER, .032
-
75210754 SPACER, .050SPACER, .050
-
85632282 WEIGHT, SHIFT, 10RIGHT HANDWEIGHT, SHIFT, 10RIGHT HAND
-
97512266 BOLT, SHOULDERBOLT, SHOULDER
-
107541906 NUT, FLEXLOCNUT, FLEXLOC
-
113576504 BEARING, MOVEABLE, 1/2 INCHBEARING, MOVEABLE, 1/2 INCH
-
125020422 PIN, ROLLERPIN, ROLLER
-
135430261 BUSHINGBUSHING
-
145210748 WASHERWASHER
-
157575202 WASHER, LOCKWASHER, LOCK
-
167512566 BOLTBOLT
