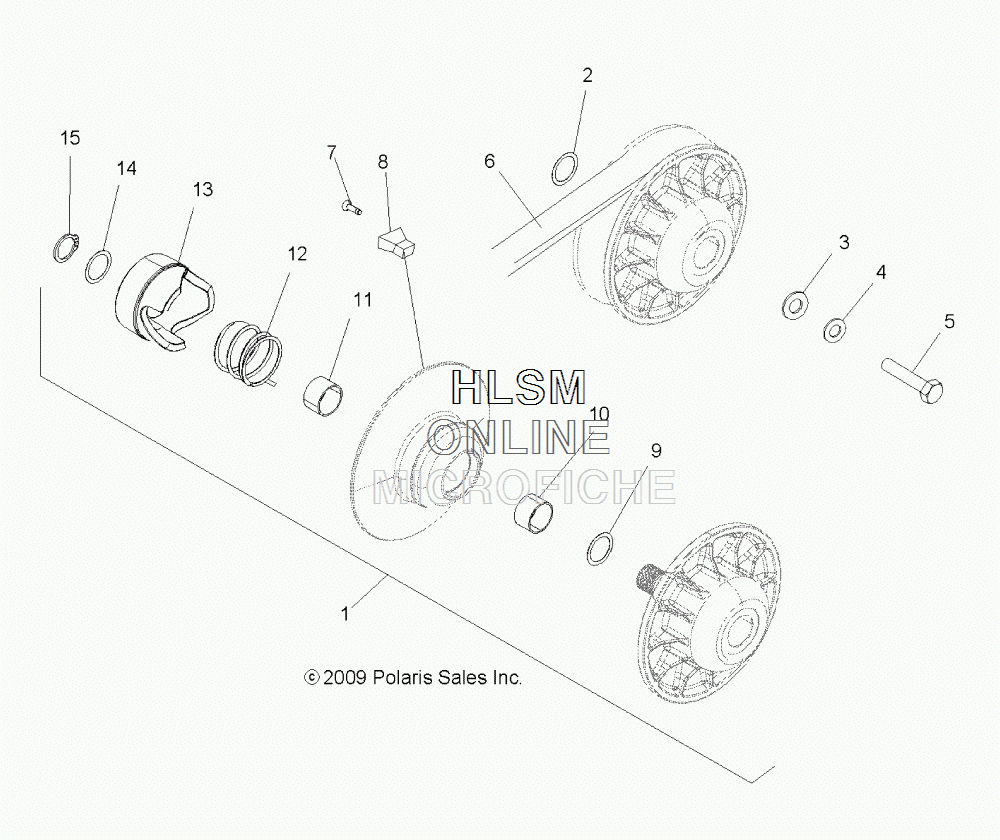

CLUTCH - SECONDARY для Polaris TRAIL BOSS 330 [A12EA32AA] - 2012 года выпуска
-
№АртикулНазвание
-
11322845 ASM., DRIVEN CLUTCH, BLACK (INCL. 7-15)ASM., DRIVEN CLUTCH, BLACK (INCL. 7-15)
-
27556120 BUSHINGBUSHING
-
35250562 WASHER, DOMEDWASHER, DOMED
-
47552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
57515382 BOLTBOLT
-
63211077 BELT, DRIVEBELT, DRIVE
-
77511854 BOLTBOLT
-
85438123 BUTTONBUTTON
-
97556804 WASHER, .030WASHER, .030
-
103576504 BEARING, MOVEABLE, 1/2 INCHBEARING, MOVEABLE, 1/2 INCH
-
113576511 BEARING, MOVEABLE, 1 INCHBEARING, MOVEABLE, 1 INCH
-
127041782 SPRING, CLUTCHSPRING, CLUTCH
-
135131446 RAMP, STATIONARYRAMP, STATIONARY
-
145244116 SPACER, .020SPACER, .020
-
157710448 RING, RETAININGRING, RETAINING
