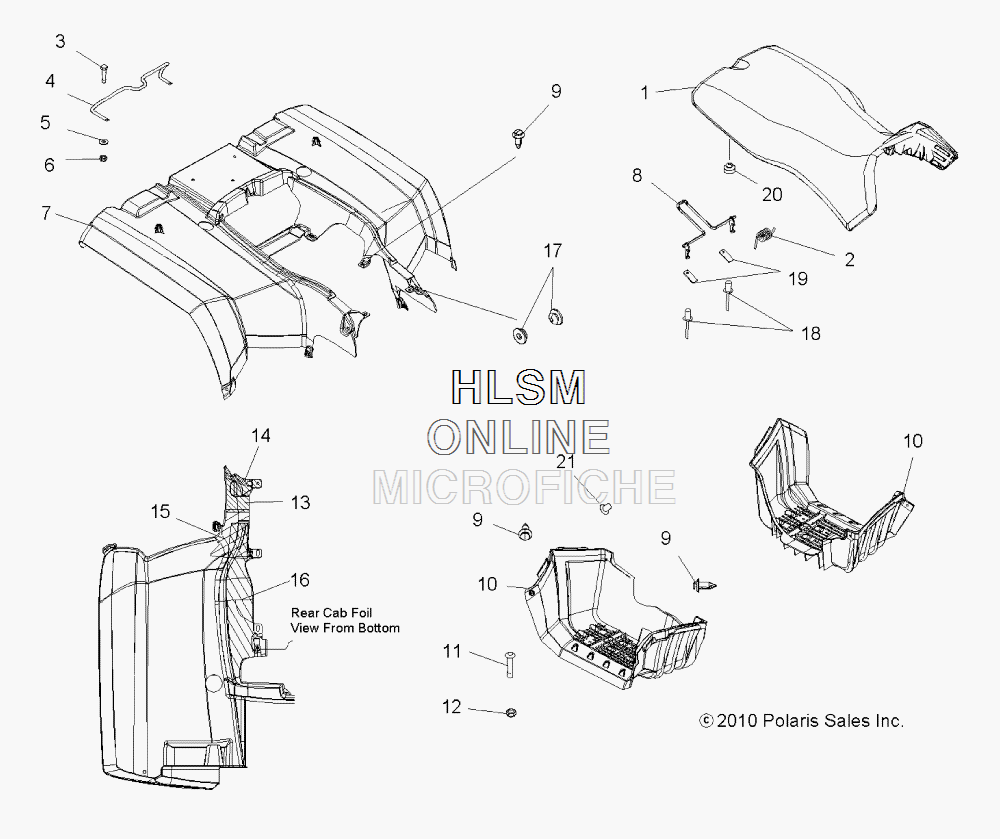

CAB - REAR - SEAT W/FOOTWELLS для Polaris SPORTSMAN FOREST 800 [A12MH76FF] - 2012 года выпуска`
-
№АртикулНазвание
-
12684882-070 ASM., SEAT, BLACK (INCL. 2,8,18-20)ASM., SEAT, BLACK (INCL. 2,8,18-20)
-
12684045 ASM., COVER, SEATASM., COVER, SEAT
-
27041370 SPRING, LATCHSPRING, LATCH
-
37511930 SCREWSCREW
-
45250745 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
57555792 WASHERWASHER
-
67541925 NUT, NYLOKNUT, NYLOK
-
75436319-498 CAB, REAR, SAGEBRUSH GREEN METALLICCAB, REAR, SAGEBRUSH GREEN METALLIC
-
81040387 LATCH, SEATLATCH, SEAT
-
97661855 RIVETRIVET
-
105436931-070 FOOTWELL, BLACK, LEFT HANDFOOTWELL, BLACK, LEFT HAND
-
105438558-070 FOOTWELL, CUT, BLACK, RIGHT HANDFOOTWELL, CUT, BLACK, RIGHT HAND
-
117517230 SCREWSCREW
-
127542122 NUT, NYLOKNUT, NYLOK
-
135813177 FOIL, FRONTFOIL, FRONT
-
145813029 FOIL, CAB, REAR, EDGEFOIL, CAB, REAR, EDGE
-
155813030 FOIL, CAB, REAR, MIDDLEFOIL, CAB, REAR, MIDDLE
-
165813043 FOIL, CAB, REARFOIL, CAB, REAR
-
175412623 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
187621403 RIVETRIVET
-
195211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
205412067 BUMPER, RUBBERBUMPER, RUBBER
-
215432798 PLUGPLUG
