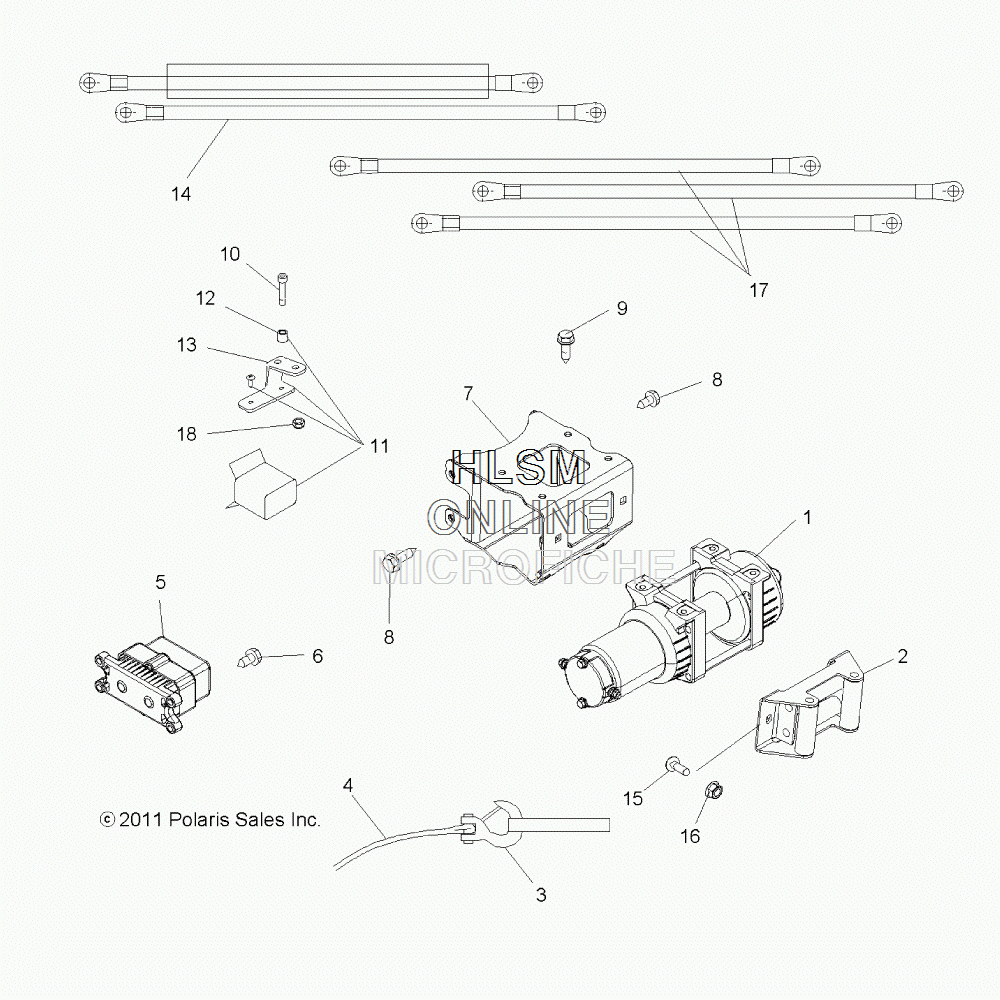

ACCESSORY - WINCH (BUILT 1/01/12 AND BEFORE) для Polaris SPORTSMAN FOREST 800 [A12MH76FF] - 2012 года выпуска
-
№АртикулНазвание
-
15632233 WINCHWINCH
-
22875997 KIT, FAIRLEAD, ROLLER (INCL. BRACKET AND ROLLERS)KIT, FAIRLEAD, ROLLER (INCL. BRACKET AND ROLLERS)
-
32410934 ASM., HOOK AND LATCHASM., HOOK AND LATCH
-
42876000 KIT, CABLEKIT, CABLE
-
52876657 KIT, CONTACTORKIT, CONTACTOR
-
67515179 SCREWSCREW
-
71015802-067 MOUNT, WINCH, BLACKMOUNT, WINCH, BLACK
-
87518514 BOLTBOLT
-
97518702 BOLTBOLT
-
107519220 SCREWSCREW
-
112875957 ASM., SWITCH, WINCH (INCL. SWITCH, BRACKET, SPACERS)ASM., SWITCH, WINCH (INCL. SWITCH, BRACKET, SPACERS)
-
125334334 SPACERSPACER
-
135250830 BRACKET, SWITCH, WINCHBRACKET, SWITCH, WINCH
-
142411214 HARNESS, BATTERY, WINCHHARNESS, BATTERY, WINCH
-
152876801 BOLT, CARRIAGEBOLT, CARRIAGE
-
162876802 NUT, NYLOKNUT, NYLOK
-
172878013 KIT, WINCH, PRE-WIRE (INCL. YELLOW, BLUE AND SWITCH EXTENSION HARNESSES)KIT, WINCH, PRE-WIRE (INCL. YELLOW, BLUE AND SWITCH EXTENSION HARNESSES)
-
187546703 NUT, NYLOKNUT, NYLOK
