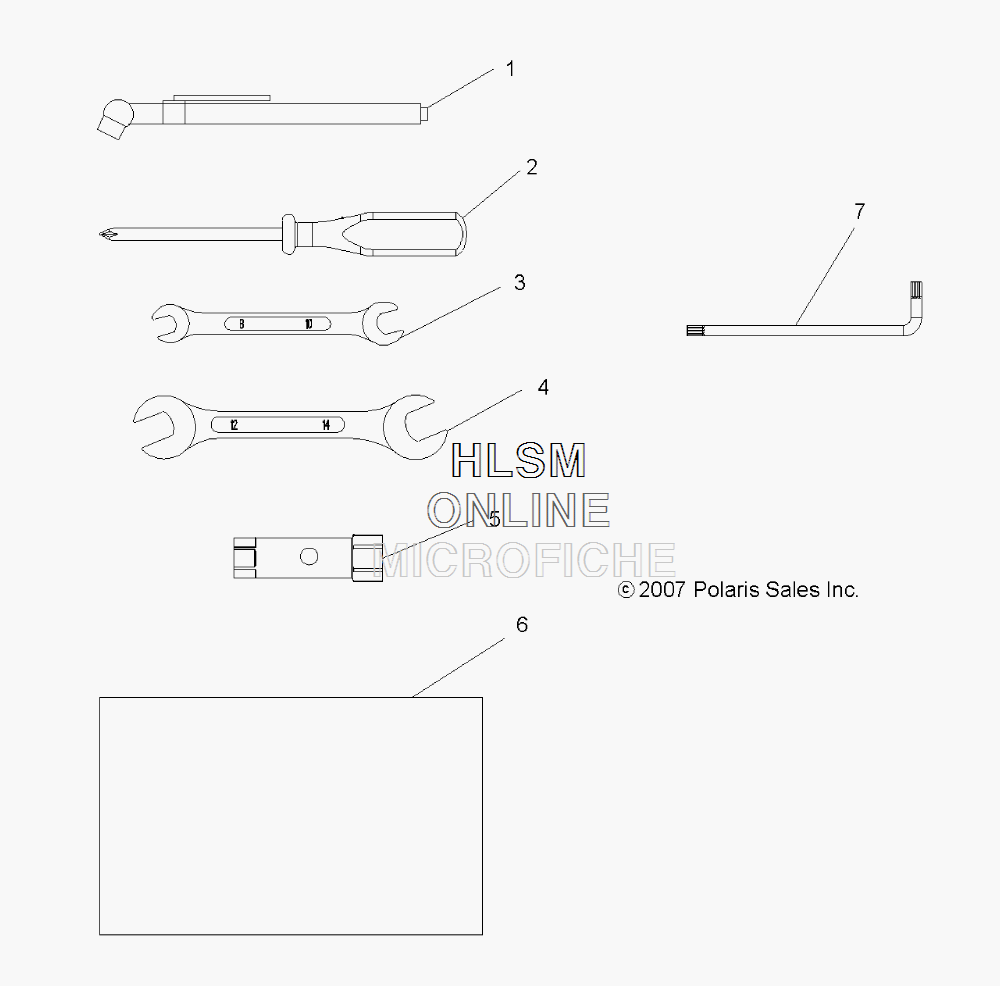

TOOL KIT для Polaris SPORTSMAN FOREST 800 [A12MH76FF] - 2012 года выпуска
-
№АртикулНазвание
-
72874735 KIT, TOOL (INCL. 2-5,7)KIT, TOOL (INCL. 2-5,7)
-
12870725 GAUGE, TIRE PRESSUREGAUGE, TIRE PRESSURE
-
22874744 SCREWDRIVER, PHILLIPSSCREWDRIVER, PHILLIPS
-
42874743 WRENCH, 1/2 X 9/16 OPENWRENCH, 1/2 X 9/16 OPEN
-
62682572 POUCH, TOOL KITPOUCH, TOOL KIT
-
72873647 WRENCH, TORX, T-27 (BUILT 1/13/12 AND BEFORE)WRENCH, TORX, T-27 (BUILT 1/13/12 AND BEFORE)
-
72874858 WRENCH, TORX, T-27 (BUILT 1/14/12 AND AFTER)WRENCH, TORX, T-27 (BUILT 1/14/12 AND AFTER)
-
72875341 WRENCH, TORX, T-25WRENCH, TORX, T-25
Все узлы модели:
- ACCESSORY - WINCH (BUILT 1/01/12 AND BEFORE)
- ACCESSORY - WINCH (BUILT 1/02/12 AND AFTER)
- AIR INTAKE SYSTEM
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - PEDAL W/MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE LINES
- BUMPER - FRONT
- CAB - FRONT W/ SIDE PANELS
- CAB - FRONT W/ STORAGE
- CAB - REAR - SEAT W/FOOTWELLS
- CAMSHAFT W/GEARS
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH COVER W/DUCTING
- CONTROLS- THROTTLE ASSY/CABLE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT - BALANCE SHAFT
- DECALS
- DIPSTICK AND OIL FILTER
- DRIVESHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL - BULBS
- ELECTRICAL - SWITCHES- SENSORS AND ECU
- ENGINE - MOUNTING
- EXHAUST SYSTEM
- FRAME
- FUEL INJECTOR
- FUEL TANK
- GAUGES AND INDICATORS
- GEAR SELECTOR
- GEARCASE
- GEARCASE - FRONT
- GEARCASE - FRONT - MOUNTING
- GEARCASE - MAIN - MOUNTING
- HANDLEBAR - CONTROL ASSY.
- HEADLIGHT
- HEADLIGHT POD
- IGNITION SYSTEM
- MANUAL - OWNERS
- OIL PUMP AND WATER PUMP
- PISTON AND CYLINDER
- PROP SHAFT - FRONT
- RACK - REAR
- SHORT BLOCK
- STARTING MOTOR
- STEERING POST
- STORAGE BOX - REAR
- SUSPENSION - A-ARM/STRUT - MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - TORSION BAR
- TAIL LIGHT
- THERMOSTAT
- THROTTLE BODY MOUNTING
- • TOOL KIT
- VALVES
- WHEEL - FRONT W/BRAKE DISK
- WHEEL - REAR W/BRAKE DISK
- WIRE HARNESS
