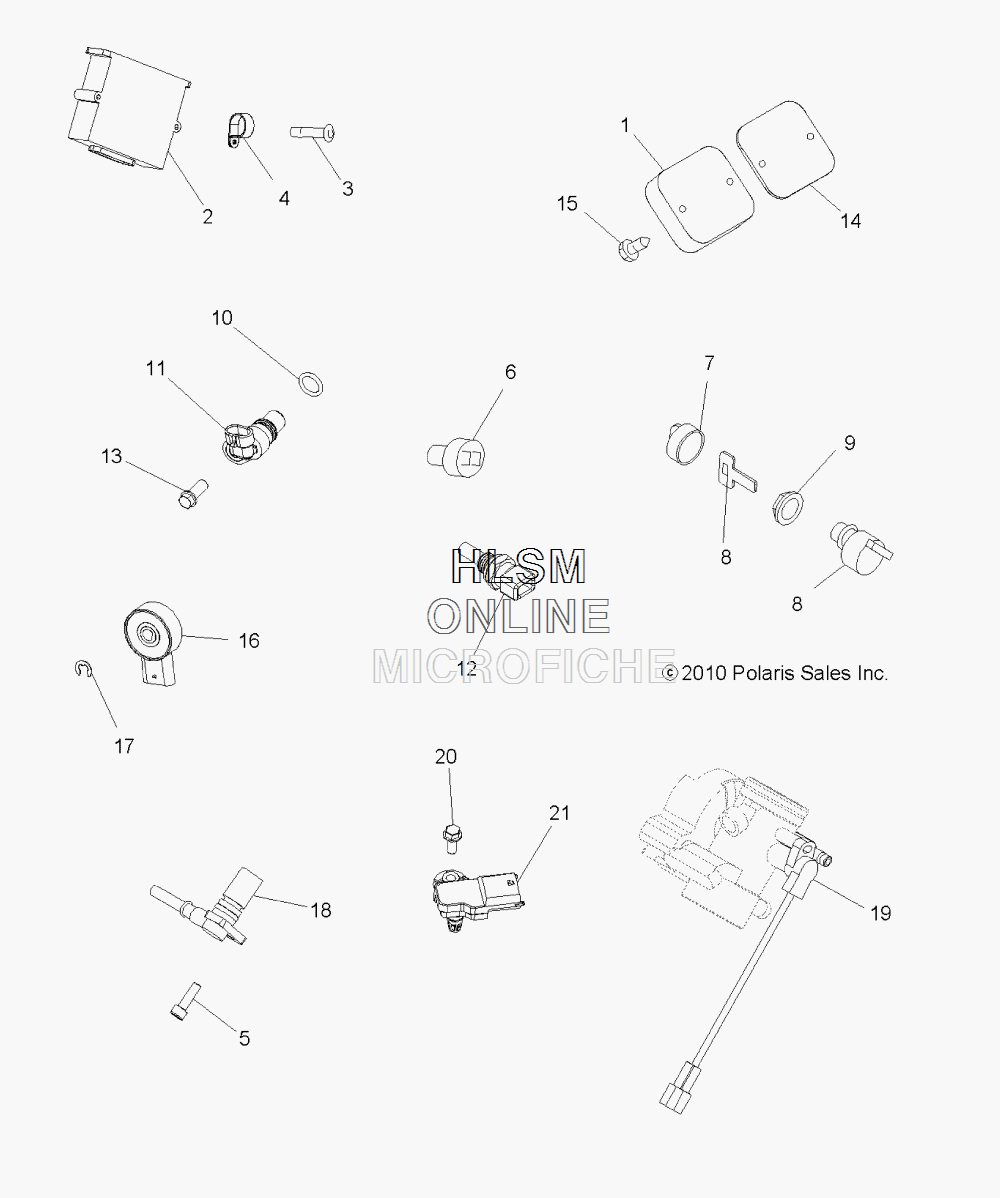

ELECTRICAL - SWITCHES- SENSORS AND ECU для Polaris SPORTSMAN FOREST 800 [A12MH76FF] - 2012 года выпуска`
-
№АртикулНазвание
-
14012748 REGULATORREGULATOR
-
24011599 ECUECU
-
37518486 SCREWSCREW
-
47080585 CLAMPCLAMP
-
57519224 SCREWSCREW
-
64110164 SWITCH (BRAKE LIGHTS)SWITCH (BRAKE LIGHTS)
-
75433534 COVER, KEYCOVER, KEY
-
84012165 SWITCH, KEY, 3 POSITION (INCL. KEY)SWITCH, KEY, 3 POSITION (INCL. KEY)
-
84010278 BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)BLANK, KEY, SERIES 2000, 2100, 6700, 6800 (SEE NOTE)
-
84010321 BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)BLANK, KEY, SERIES 2200, 2300, 2700, 2800 (SEE NOTE)
-
95433733 NUT, IGNITIONNUT, IGNITION
-
103234302 O-RINGO-RING
-
114012167 SENSOR, SPEEDSENSOR, SPEED
-
124010644 SENSOR, THERMISTORSENSOR, THERMISTOR
-
133234247 SCREWSCREW
-
145253294 COVER, VOLTAGE REGULATORCOVER, VOLTAGE REGULATOR
-
157515179 SCREWSCREW
-
163233835 SWITCH, ROTARY (GEAR POSITION)SWITCH, ROTARY (GEAR POSITION)
-
173233834 RING, RETAININGRING, RETAINING
-
182410720 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
192410342 SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)SENSOR, THROTTLE POSITION (MUST ALSO ORDER O-RING)
-
195413812 O-RING, TPS (USED W/2410342)O-RING, TPS (USED W/2410342)
-
207517658 SCREWSCREW
-
212410422 SENSOR, T-MAPSENSOR, T-MAP
